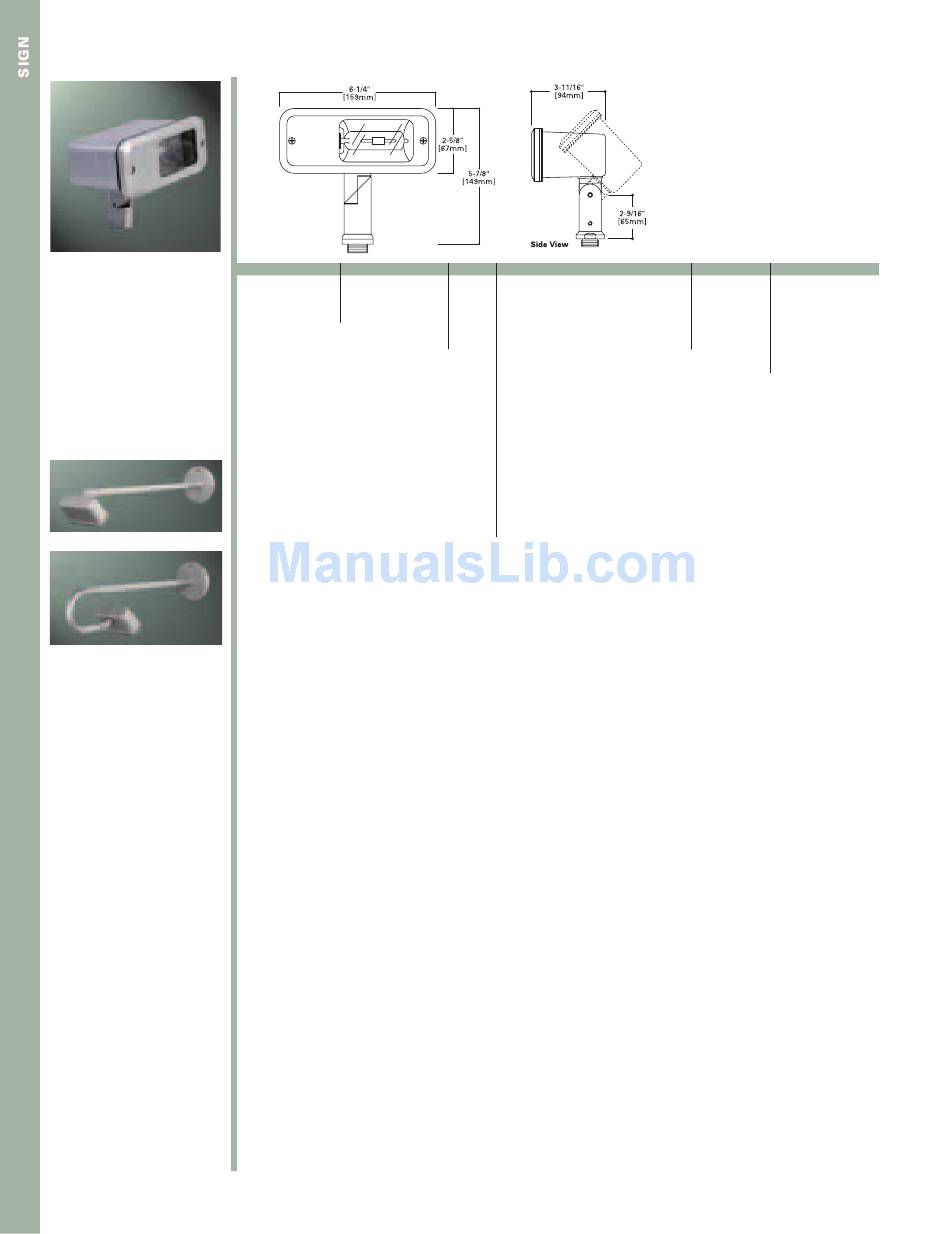

Lumiere CARMEL 450 Installation

`
LUMIERE
CARMEL 450
70W (max)
T6 Metal Halide
FEATURES
• Use with or without optional mounting
arms
• 200° tilt, 360° rotation
• Die-cast housing, machined stem
• Stainless steel hardware
• S.P.S. Siphon Protection System
• UL / cUL listed
• Three (3) year warranty
A r m - M o u n t i n g O p t i o n s
Straight Arm - See Options
Hook Arm - See Options
1062
COOPER LIGHTING
®
MODEL SOURCE
Metal Halide
450 MH39T6
Mini-flood with
MH70T6
1/2" NPS
adjustable stem
Lamp not included
Note: See "Accessories" section for Glare Shields and Lamps.
VOLTS BALLAST/ MOUNTING
120 MB
Fixture mounts to inground core & coil
39W / T6 / G12
208
ballast/housing
70W / T6 / G12
240 MBR
Fixture mounts to flat surface (any
277
orientation), remote inground core & coil
347
ballast/housing
SM
Fixture mounts to wall-mounted core & coil
ballast/housing, bottom conduit entry
WM
Fixture mounts to wall-mounted core & coil
ballast/housing, over J-box
WR
Fixture mounts to flat surface (any
orientation), remote core & coil
ballast/housing
TS
Fixture mounts to core & coil ballast,
strapped to tree
TSR
Fixture strapped to tree, remote inground
core & coil ballast/housing
Note: Add prefix "EL" to Ballast/Mounting
code to specify electronic ballast in lieu
of core and coil.
SAMPLE NUMBER: 450-MH70T6-120-MB-BK-HA24
FINISH OPTIONS
Painted For MBR, WM or WR
BK ballast/mounting only
Black
BZ HA24 24" hook arm
Bronze
CS HA30 30" hook arm
City silver
VE HA36 36" hook arm
Verde
WT SA24 24" straight arm
White
SA30 30" straight arm
SA36 36" straight arm
