Logitech HD 200a Getting Started Manual

Getting Started Guide
Logitech HD 200a Powerline Starter Kit
Welcome.
Thank you for purchasing Logitech HD Powerline products. With Logitech powerline
home products you can easily network devices in your home using your home's
Logitech HD 200a Powerline Starter Kit
existing electrical wiring. No new wires to run, no networking hassles.

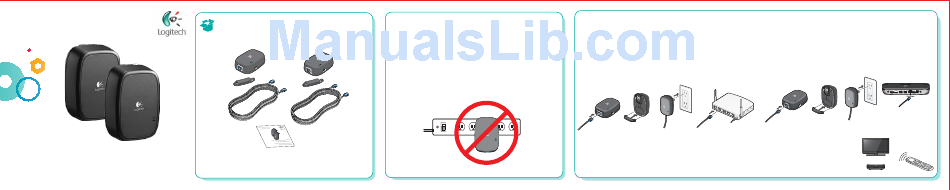

Power-strip Warning!
Do NOT plug the network adapter into a surge protector or power strip as they
interfere with network communication. The network adapter(s) must be plugged
directly into your wall outlet. Surge protectors are built-in to the network adapter
and protect your devices.
2 Network adapters 2 wall spacers
2 Ethernet cables Documentation
1
Logitech HD 200a Powerline Starter Kit
1) Plug one end of the Ethernet cable connector into the network adapter.
1a) Add the optional wall spacer.
1b) Plug the network adapter into the power outlet.
2) Connect the other end of the Ethernet cable connector into an open port on
your router.
1b
1 2
1a
INTE RNET
1
2
3
4
2
1) Take the second network adapter and plug one end of the Ethernet cable
connector into the network adapter.
1a) Add the optional wall spacer.
1b) Plug the second network adapter into the power outlet by the device
you will be connecting to.
2) Connect the other end of the Ethernet cable connector into the ethernet
port of your device (i.e. gaming console, laptop, etc.).
1 1a 1b 2
(not included)
3
Turn the device on and test.
