Summary of Contents for Eonon E1110

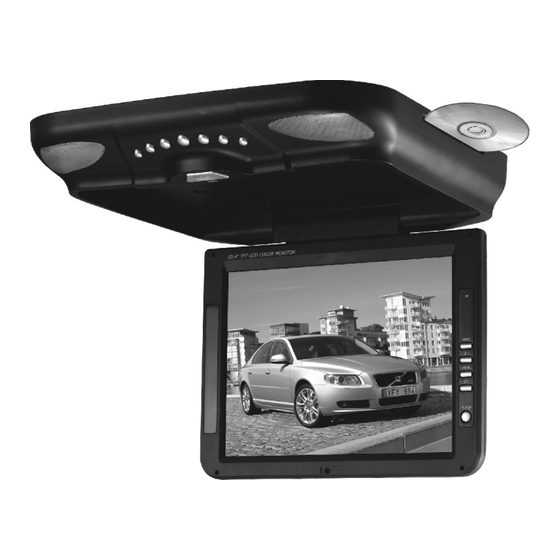

- Page 1 Flip Down LCD Monitor with Multimedia Player Operating Instructions Please read this instruction before operating this machine...
- Page 2 Flip Down LCD Monitor with Multimedia Player Flip Down LCD Monitor with Multimedia Player Notice Insert the cell into the remote controller. This unit is designed for 12V DC, negative ground operation system only. Before installing the unit, make sure your vehicle is connected to DC 12V negative ground electrical system.
- Page 3 Flip Down LCD Monitor with Multimedia Player Flip Down LCD Monitor with Multimedia Player Maintenance: Please do not use the discs with paste residue or ink attached. 1. Renew of fuse When you renew fuse, you must confirm that amperage of used fuse is suitable.
- Page 4 Flip Down LCD Monitor with Multimedia Player Flip Down LCD Monitor with Multimedia Player Instructions for position & function 22. ZOOM Yellow DVD video output Press this key to zoom the picture. White DVD audio output 2 3 4 5 6 7 8 DVD audio output 23.
- Page 5 Flip Down LCD Monitor with Multimedia Player Flip Down LCD Monitor with Multimedia Player Wiring Connection: 12. 1-0 number key Fuse 3A Red Connected +12V power When PBC turns off, you could press keys to select the tracks Black Grounding from 1 to 0.
-
Page 6: Remote Controller Operation
Flip Down LCD Monitor with Multimedia Player Flip Down LCD Monitor with Multimedia Player 1. Main menu consists of PICTURE, AUDIO, CHANNEL, Remote controller operation: FUNCITON and OSD. 2. Press MENU or TFT MENU on the remote control to select the 1. -
Page 7: Remote Controller Instruction
Flip Down LCD Monitor with Multimedia Player Flip Down LCD Monitor with Multimedia Player Remote controller instruction Audio Menu AUDIO EJECT POWER VOLUME TOSHIBA AUDIO CONTROL MODE DISP PLAY/PAUSE MOVE SELECT EXIT NEXT ZOOM 1. Submenu consists of Volume, Audio Control and FM. STOP TITLE 2. - Page 8 Flip Down LCD Monitor with Multimedia Player Flip Down LCD Monitor with Multimedia Player OSD Menu 1. Submenu consists of AUTO Scan, Channel, Color.SYS, Sound.SYS, Skip, Manual, Fine and Swap. 2. The operation is same as the other modes. Function Menu LANGUAGE ENGL ISH H-POSITION...
