Fryette Pittbull Hundred/CLX G-100-CLX Owner's Manual

Vacuum tube guitar amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HUNDRED/CLX
VACUUM TUBE GUITAR AMPLIFIER
MODEL G-100-CLX
OWNERS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pittbull Hundred/CLX G-100-CLX and is the answer not in the manual?

Questions and answers

Related Manuals for Fryette Pittbull Hundred/CLX G-100-CLX

Summary of Contents for Fryette Pittbull Hundred/CLX G-100-CLX

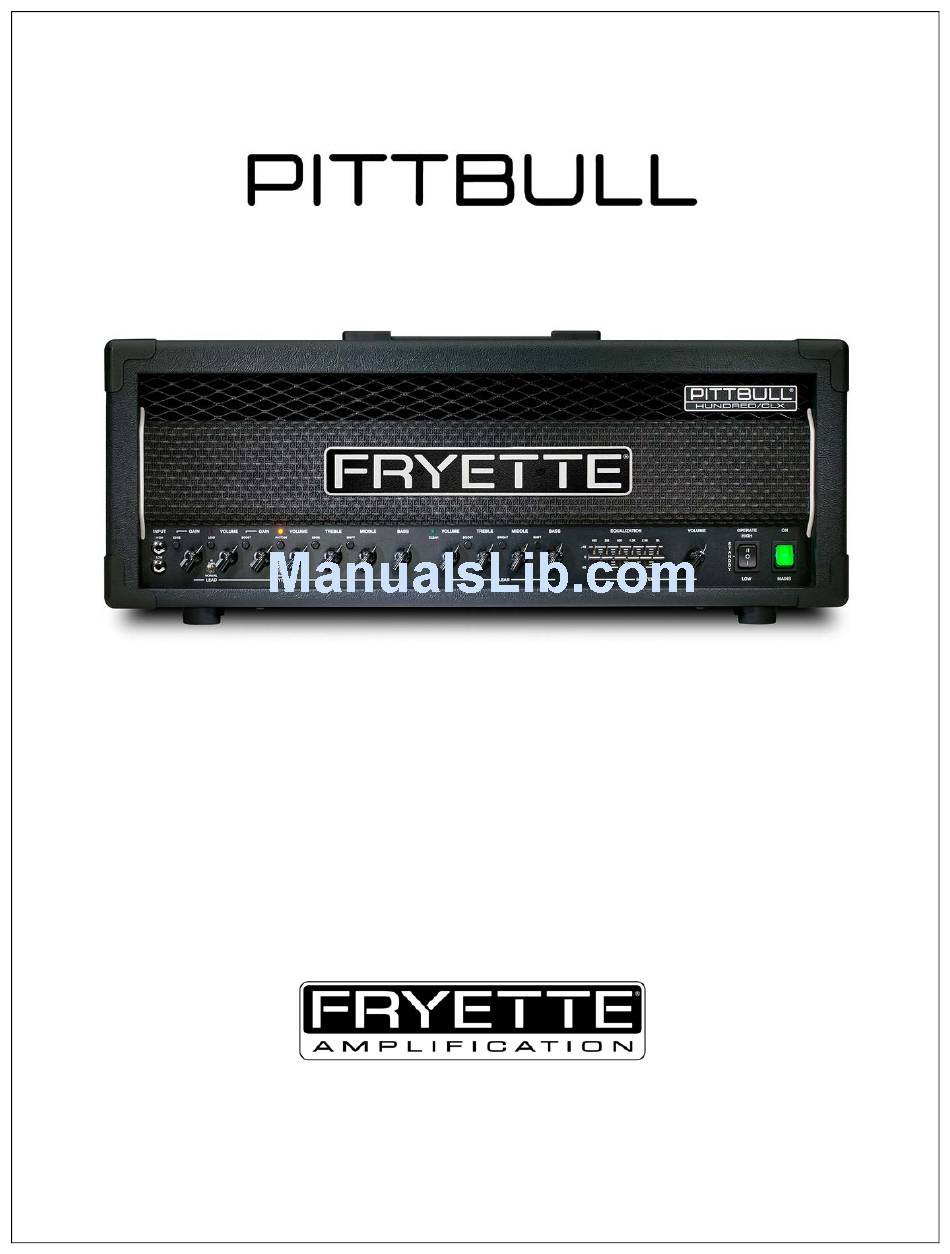

  • Page 1 HUNDRED/CLX VACUUM TUBE GUITAR AMPLIFIER MODEL G-100-CLX OWNERS MANUAL...

  • Page 2: Welcome To The Family

    Congratulations and thank you for choosing the PITTBULL HUNDRED/CLX Guitar Amplifier! At Fryette Amplification, we know you are constantly searching for new sounds and new ways to improve your existing sound. We understand the constantly evolving nature of artistic creativity and the search for the perfect sound to complement your ever-widening musical vision.

  • Page 3: Front Panel Functions

    FRONT PANEL FUNCTIONS FRONT PANEL, LEFT TO RIGHT INPUT HI - High sensitivity input (also has a brighter tone) INPUT LOW - Low sensitivity input (also has a slightly darker tone) LEAD CHANNEL CONTROLS LEAD EDGE SWITCH - Frequency dependent gain boost; gain increases as you play up the neck (it’s subtle) LEAD GAIN - Amount of overdrive LEAD CHANNEL SWITCH - Activates Lead Gain, Volume and Edge.

  • Page 4: Rear Panel Functions

    REAR PANEL FUNCTIONS REAR PANEL, LEFT TO RIGHT 1. GROUND SWITCH – Select position which yields quietest operation. With a properly wired AC outlet and factory supplied AC cord, this switch will not produce a noticeable difference. 2. AC MAINS INPUT – Connect to a grounded outlet in accordance with the voltage and frequency specified on the rear panel of your amplifier.
  • Page 5 NOTE: When switching to half power mode (standby switch in Position I) impedance selector value can be divided by two to compensate for the impedance mismatch caused by Half Power Mode. EXAMPLE: Impedance setting “8” for 16 ohm speaker, Impedance setting “4” for 8 ohm speaker, etc. While not necessary, it may help extend tube life and maintain low-end punch.

  • Page 6: Troubleshooting Guide

    TROUBLESHOOTING GUIDE WON’T TURN ON 1. Make sure AC cord is securely connected at EFFECTS FOOTSWITCH FUNCTION NOT both ends. OPERATING 2. Verify the power source with something you 1. Make sure footswitch is securely connected. know works. 2. Rear panel FX IN/OUT switch must be in 3.

  • Page 7: Declaration Of Conformity

    Electromagnetic Engineering Services, Inc. in accordance with European Standards EN 50081-1, EN 50082-1 and EN 60065 for low voltage, as laid down in Article 10 of the EMC Directive. Steven Fryette Design, Inc 1201 South Flower Street Burbank, CA 91502 USA...

  • Page 8: Limited Warranty

    LIMITED WARRANTY Subject to the obligations and exclusions found below, this product is warranted by Steven Fryette Design, Inc., (herein SFD) against manufacturing defects in materials and workmanship for the period of Five (5) Years from the date of purchase, with the exception of the tubes, fuses and speakers where applicable, which carry a 90 day warranty.
