Eminent LFT-8b Instructions

Tweeter replacement

Hide thumbs Also See for LFT-8b:

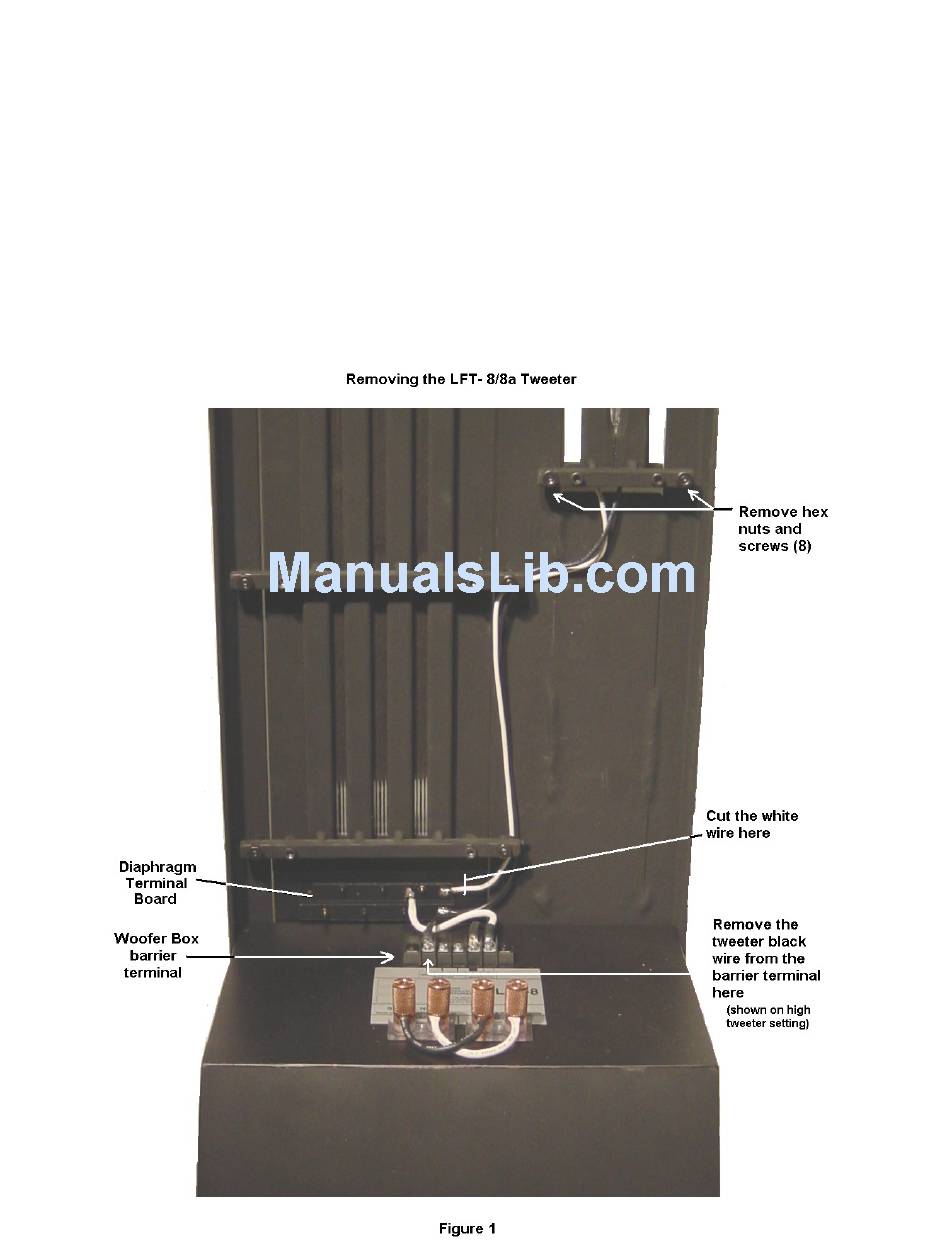

Remove the tweeter black wire spade lug from the barrier terminal strip on the top

of the woofer box (Figure 1). Cut the small diameter white wire near the solder joint

connecting the original tweeter and the mid range diaphragm terminal board (Figure 1).

Remove the eight machine screws, hex nuts, and spacers (Figure 1&2). Keep track of the

spacer location so that the inner four spacers can be replaced with the new spacers

provided with the tweeter upgrade (Figure 2).

Separate the tweeter driver completely

from the speaker frame. Repeat for the second tweeter.

Table of Contents

Need help?

Do you have a question about the LFT-8b and is the answer not in the manual?

Page 1 TWEETER REPLACEMENT INSTRUCTIONS FOR THE LFT-8b Removing The Original Tweeter From The Speaker Frame Remove the tweeter black wire spade lug from the barrier terminal strip on the top of the woofer box (Figure 1). Cut the small diameter white wire near the solder joint connecting the original tweeter and the mid range diaphragm terminal board (Figure 1).
Page 3 Installing The New Tweeter Driver Upgrade Install the updated tweeter in the speaker frame placing the spacers in there original locations along with the replacement spacers shown in Figure 2. Run the black and white tweeter wires next to cross bar “A” (Figure 3) of the midrange assembly and attach a black nylon tie wrap for strain relief (Figure 3).
Page 4 Figure 3...
