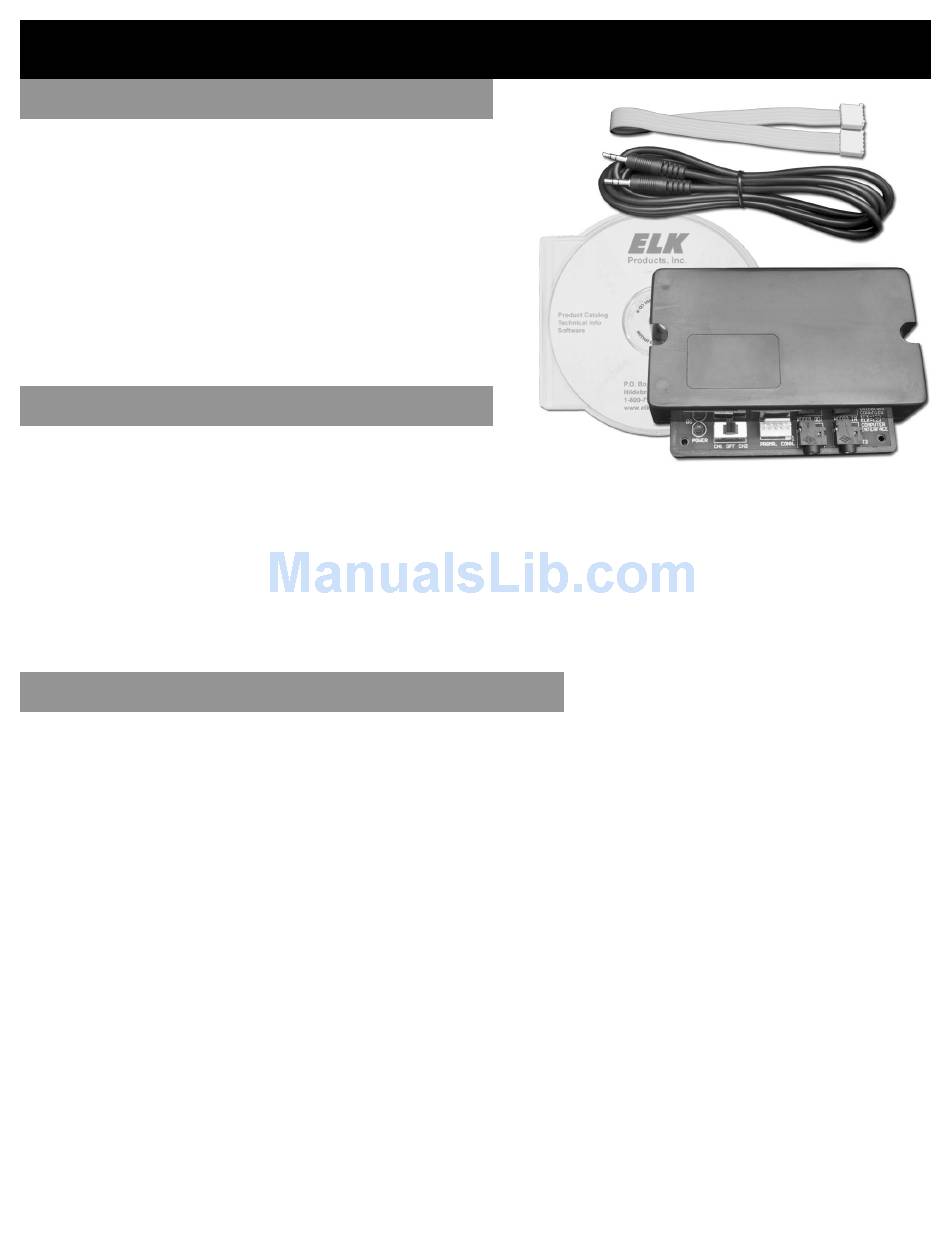

Computer Sound Card Interface
ELK-129
The ELK-129 Computer Sound Card Interface allows
a computer's speaker output to be used as one of the
tools for programming the ELK Recordable Modules,
such as the ELK-120, ELK-124, or ELK-MV480.
Includes software to download your computer's audio
files (WAVs) to the Recordable Modules.
Features
• Powers ELK-120 or ELK-124 Modules during Programming.
• Power Switch.
• Audio Jacks for Computer and Speakers.
• Plug-In Cable for Quick Connections to Recordable Modules.
• Includes 6 foot Shielded Cable for Speakers.
• Compact Plastic Case.
• Programs Recordable Modules in Seconds!.
• Lifetime Limited Warranty.
Specifications / Requirements
• Size: 4.4" x 3" x 1.15" (111.8mm x 76.3mm x 29.2mm).
• Supplies 12Volts D.C. @ 1 Amp for ELK-120 / 124 Modules.
• Requires Windows 98 or higher, Stereo Speaker Output Jack or
Sound Card and computer speakers.
• Requires (1) 12V, 20VA AC Transformer (not included) to program
the ELK-120 or ELK-124. Transformer is not needed for
the ELK-MM447 or ELK-MV480.
Features and Specifications subject to change without notice.
PO Box 100 • Hildebran, NC 28637 • 800-797-9355 • 828-397-4200
Fax 828-397-4415 • www.elkproducts.com • info@elkproducts.com
11/04
Version 4.0
1
ELK
PRODUCTS, INC.
Advertisement
Table of Contents
Related Manuals for Elk Products ELK-129
Summary of Contents for Elk Products ELK-129
- Page 1 Specifications / Requirements • Size: 4.4" x 3" x 1.15" (111.8mm x 76.3mm x 29.2mm). • Supplies 12Volts D.C. @ 1 Amp for ELK-120 / 124 Modules. • Requires Windows 98 or higher, Stereo Speaker Output Jack or Sound Card and computer speakers.
- Page 2 A 16.5 Volt, 40VA Transformer can be used, although a 12 Volt, 20VA Transformer is recommended since it will not overdrive the ELK-129. We caution against leaving a 16.5V plugged in when the ELK-129 is not in use as it can become warm to the touch after a time.
- Page 3 Place ribbon cable on J2, move SW1 to CH1 to record Channel 3 or move SW1 to CH2 to record Channel 4. • ELK-124 V2 Version 2 featuring 8 channels of 60 seconds each. Set Channel Polarity jumpers to “+”. Turn SW1 to CH1 to...
- Page 4 3. Remove the audio cable from the back of the computer speakers and plug it into the AUDIO IN Jack on the ELK-129. Plug one end of the supplied 6-foot shielded audio cable into the AUDIO OUT Jack. Plug the other end of this cable into the computer speakers, where the first cable was originally plugged.
- Page 5 ..1-Ft. Ribbon Cable Selects recording from on-board microphone or from ELK-129. Set JP1 to "O" or "PRG" for ELK-129 use Figure 1. * Do Not Connect a transformer for ELK-MM447 or To 12V 20VA ELK-MV480 Transformer 3.5MM...
- Page 6 4d. For ELK-124 Version 2 Modules, (has dip switch) ... Move DIP Switch #1 to the ON position .. skip to step 5. 5. Be sure you have a 12 volt AC Transformer connected to the ELK-129. Turn SW1 on the ELK-129 to CH1. Channel 1's message should start playing.
