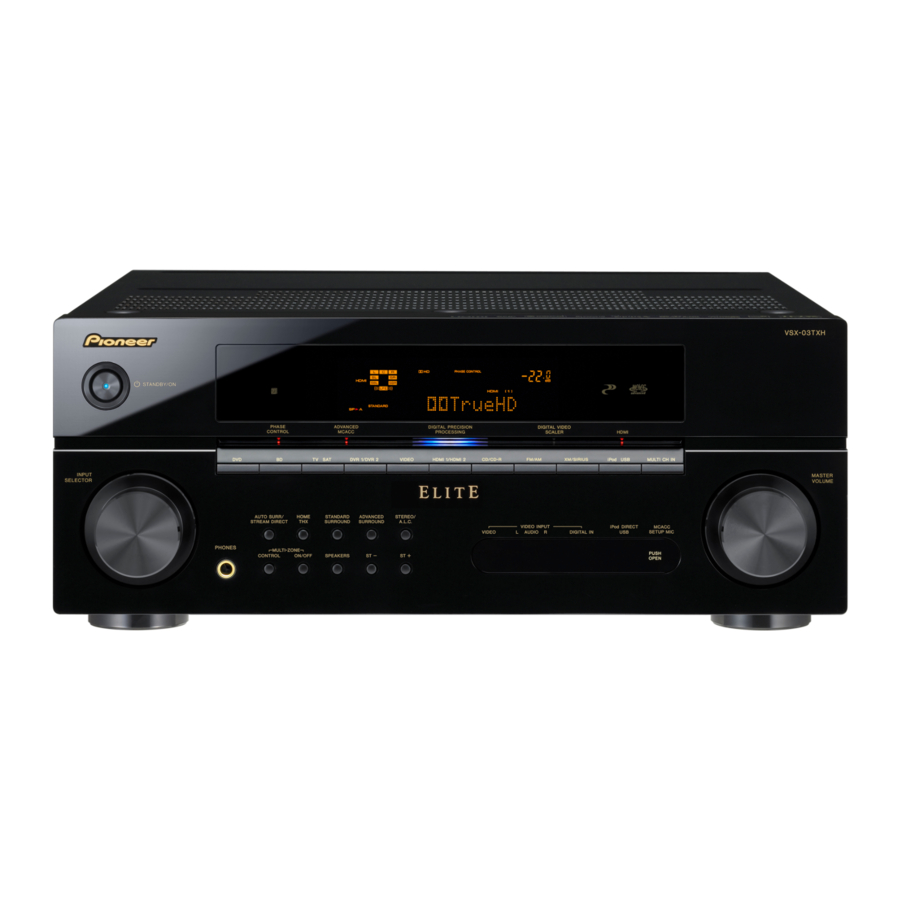

Pioneer Elite VSX-03TXH Specification Sheet

The VSX-03TXH is the workhorse of the Elite
this multi-channel surround sound receiver does it all. From 7 channels of
clean high power output, high-definition A/V connectivity and processing, to
plug-n-play iPod ®
Pioneer Elite receivers: the command centers for your high-definition
home theater.
AmplificAtion And build
110 Watts x 7 Direct Energy Amplification
›
(20Hz – 20kHz, 8 ohms, 0.09% THD – FTC)
Advanced Direct Construction
›
Rigid Trans Stabilizer Construction
›
Aluminum Front Panel
›
Hd Surround Sound
THX Select2 Plus Processing and Certification
®
›
Dolby TrueHD, Dolby Digital Plus, dts-HD
®
›
Resolution Audio
Phase Control
›
New Freescale Dual Core DSP Engine
›
Advanced MCACC with 9 Band EQ
›
Symmetric EQ
›
Standing Wave Control
›
Advanced Sound Retriever for enhanced playback from portable
›
audio devices
Neural THX Surround
® ®
›
192 kHz/24-Bit Audio Digital to Analog Conversion
›
Advanced Surround Sound (15+1 Modes)
›
DSD to PCM Converters
›
HDMI Jitter Reduction
›
High Precision PLL Circuit
›
TBC Digital Video Conversion Converts S-Video, Composite and
›
Component Up to HDMI ®
I/P Converter to 480p
›
bold denotes step-up feature from the VSX-01TXH
VSX-03TXH
7.1-channel A/v receiver featuring dolby
Audio, Advanced Hdmi
music enjoyment.
Master Audio/High
®
® trueHd and dts-Hd
® connectivity, and multi-Zone A/v distribution
® Receiver A/V line. Fully featured,
digitAl SourceS & proceSSing
iPod ® Player USB Digital Audio
›
USB Memory Audio Playback
›
Front Stage Surround
›
Sound Retriever
›
XM ® -Ready with XM-HD Surround and On-Screen Display*
›
SIRIUS ® -Ready with On-Screen Display**
›
connectivity
HDMI (3 Inputs / 1 Output – Capable of Switching 1080p, HD-Audio
›
and SACD)
Video Parameter Configuration
›
Deep Color / 30-bit / 36-bit 4:4:4 Color Depth / X.V. Color Support
›
Video Scaler – 1080p / 60Hz
›
3 Component Video Inputs / 1 Component Video Output
›
4 S-Video Inputs / 2 S-Video Outputs
›
6 Digital Inputs / 1 Digital Output (optical)
›
cuStom feAtureS
On-Screen Display
›
2 Zone Multi-Zone & Source
›
(Analog A/V Out for Zone 2)
RS-232C Interface
›
12 Volt Trigger x2 (assignable)
›
I/R (1 in / 1 out)
›
Assignable Surround-Back Speaker – Bi-Amp, Speaker B, or Zone 2
›
Main Room / Multi-Zone Remote Control for Zone 2
›
Preset Glow-Key Remote
›
Sub Remote Control for Zone 2
›
PC Display (Room Reverb., Speaker Delay, and MCACC Parameters)
›
® master
