Summary of Contents for Dual X2DMA400

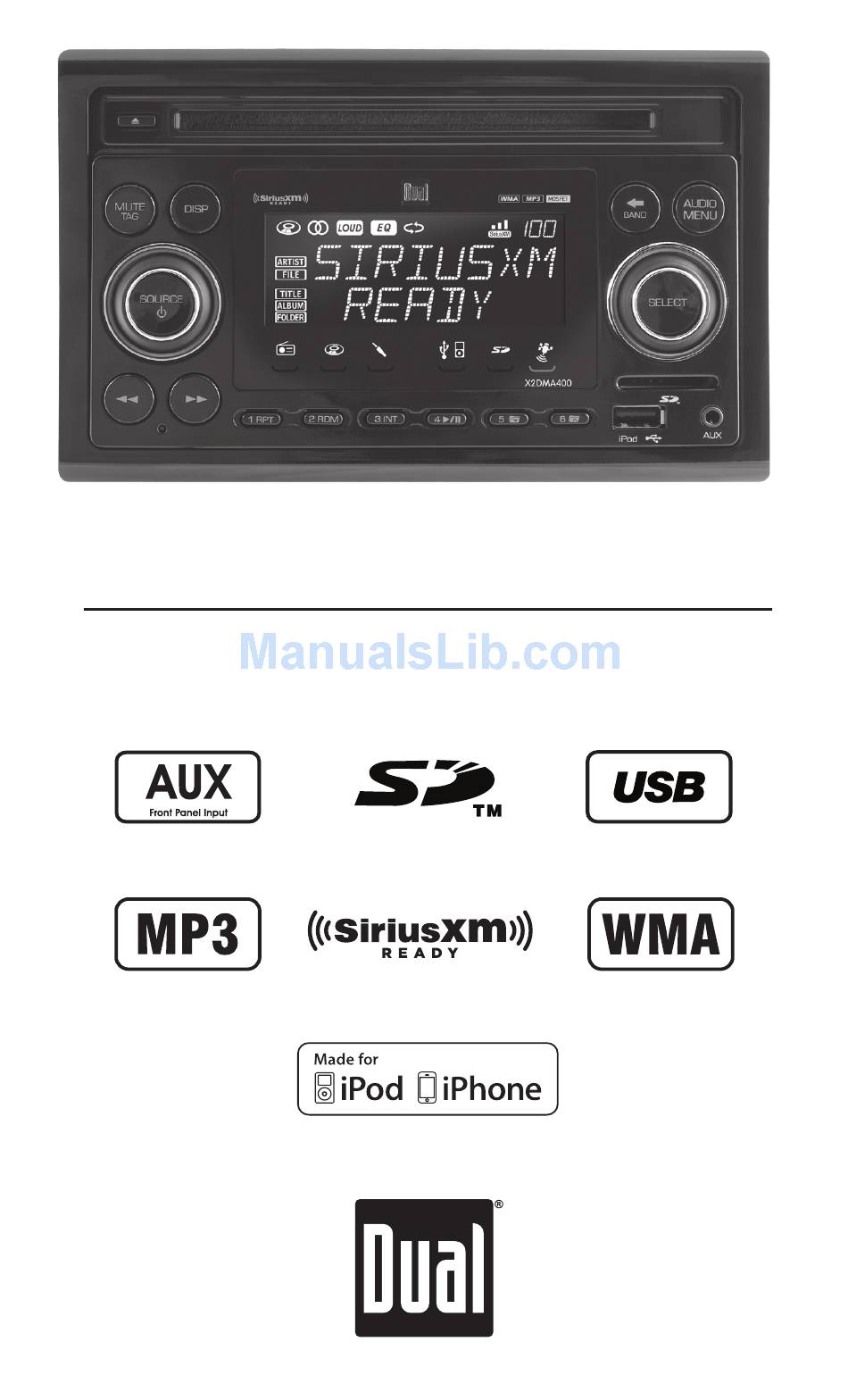

- Page 1 X2DMA400 INSTALLATION/OWNER'S MANUAL AM/FM Receiver with Remote Control...
-
Page 2: Preparation
X2DMA400 OPERATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started •... -
Page 3: Wiring Diagram
X2DMA400 OPERATION Wiring Diagram YELLOW - Rear RCA Input Connect a portable device BLACK - Antenna Input Connect the vehicle antenna RCA Preamp Outputs External Amplifer Connections SiriusXM Vehicle Tuner Connection (tuner sold separately) Steering Wheel Interface Input (PAC SWI-PS sold separately) FUSE When replacing the fuse, make sure new fuse is the... -

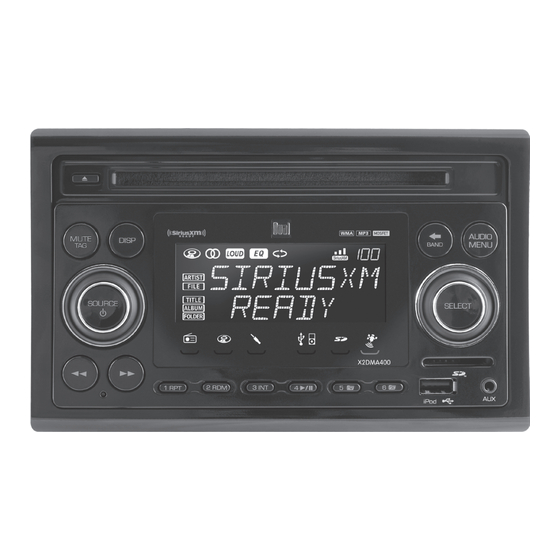

Page 4: Control Locations - Receiver
X2DMA400 OPERATION Control Locations - Receiver Source / Power ( ) USB Port Eject Preset 6 / Folder Up Mute / Tag Preset 5 / Folder Down Display Preset 4 / Play / Pause Volume Knob Preset 3 / Intro Preset 2 / Random Back / Band Select Preset 1 / Repeat... -
Page 5: Control Locations - Remote
X2DMA400 OPERATION Control Locations - Remote Key 9 Source / Power ( ) Category Up (SXM) Select Key 0 / Display Volume Up Category Down (SXM) Audio / Menu Key 7 Tune / Track Up Key 8 Volume Down Preset 4 / Play / Pause Mute / Tag Preset 1 / Repeat Preset 2 / Random... -
Page 6: General Operation
X2DMA400 OPERATION General Operation Power On/Off Press or any other button to turn unit on. Press and hold to turn unit off. Source Press SOURCE to select one of the following audio sources: AM/FM Tuner Mode CD Player Mode Auxiliary Input (front/rear) Modes USB and Operation of iPod/iPhone Modes SD Card Mode SiriusXM Satellite Radio Mode When a source is selected, a red line will appear... - Page 7 X2DMA400 OPERATION General Operation Auxiliary Input Insert 3.5 mm plug to connect your portable audio device. Volume Adjust volume using volume knob (00-46). Mute Press MUTE to silence the audio. Press MUTE again to cancel. Reset Press the RESET button, located in the bottom left corner of the front panel, to reset the unit back to the factory settings if abnormal operation occurs.
-
Page 8: Setup Menu
X2DMA400 OPERATION Setup Menu Press and hold AUDIO/MENU for more than 3 seconds to access the setup menu, then press AUDIO/MENU to cycle through menu options. When desired option appears in the display, rotate the tuning knob left/right to adjust or activate desired function. Press BACK to exit any menu or submenu. -
Page 9: Audio Menu
X2DMA400 OPERATION Audio Menu Press AUDIO/MENU momentarily to cycle between Bass, Treble, Balance, Fader, Equalizer, *Subwoofer, and Source Volume Level. Press BACK at any time to exit the audio menu. BASS TREBLE BALANCE FADER SUBWOOFER SOURCE LEVEL Press AUDIO/MENU until BASS appears, then rotate the Bass tuning knob left/right to adjust (-6 minimum / +6 maximum). - Page 10 X2DMA400 OPERATION LCD Icon Layout SiriusXM Stereo FM Random Signal Indicator Reception SiriusXM Repeat Loudness Intro Channel Number CD-in Artist Name File Name Song Title Album Name Folder Name AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE to seek the next strong station. Manual Tuning Rotate the tuning knob to move radio frequency up or down one step at a time.
-
Page 11: Cd Player Operation
X2DMA400 OPERATION CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press EJECT to eject the CD. The unit will change to previous mode of operation. If the disc is not removed within 10 seconds, the unit will reload the disc. - Page 12 X2DMA400 OPERATION CD Player Operation - MP3/WMA Files MP3/WMA Discs When an MP3/WMA encoded disc is first inserted, “READING” will appear in the display. Depending on the number of files and folders, this may take several seconds. Folder Access Press to select the next folder. Press to select the previous folder. *Folder access is only available on discs recorded with more than one folder.
- Page 13 X2DMA400 OPERATION CD Player Operation - MP3/WMA Files File/Folder Search Press SELECT to enter the file/folder search mode. A list of all the folders from the CD will be displayed. Note: Any files located in the root directory will be located in the folder named "ROOT". Choose a Folder Turn the tuning knob to cycle through all the folders on the CD, and press SELECT to choose the desired folder.
- Page 14 X2DMA400 OPERATION CD Player Operation - MP3/WMA Files File/Folder Compatibility and Support • CD-ROM (ISO), CD-R, CD-RW • CD-DA (digital audio) Compatible File Types • MP3 data (.mp3) • WMA data (.wma) • AAC data (.m4a) • WAV lossless • FLAC lossless • OGG data • DRM protected files Incompatible File Types • WMA lossless •...
-
Page 15: Operation Of Ipod/Iphone
X2DMA400 OPERATION Operation of iPod/iPhone Connecting an iPod/iPhone Device USB Connection Using the "dock connector to USB" sync cable (provided with the iPod/iPhone device), plug the USB cable into the X2DMA400's USB port. Once connected, playback will begin automatically. Controlling a Device: Full Control When the control of iPod/iPhone feature is set to "FULL" in the iPod Menu, use the following functions to control the device: Song Select Rotate tuning knob right to skip to the beginning of the next track. - Page 16 X2DMA400 OPERATION Operation of iPod/iPhone Controlling a Device: Full Control - Music Search Menu The X2DMA400 features a powerful music search that simplifies the searching process. Follow the steps below to find the desired song: Begin Searching Press SELECT to begin the search. The main search menu will appear. Select a Category Turn the tuning knob to select between artists, albums, songs, playlists, podcasts and audiobooks. Press SELECT to select the desired search category. Some categories have subcategories to navigate through. See the table below for details.
- Page 17 X2DMA400 OPERATION Operation of iPod/iPhone Controlling a Device: Manual Control When the control of iPod/iPhone feature is set to "MANUAL" in the iPod Menu, use the following functions to control the device: Manual Control for iPod When "MANUAL" control is selected from the iPod Menu, the iPod or iPhone device can be controlled directly from the device's interface. All functions except for volume can be used from the iPod or iPhone device. Basic Head Unit Control In addition to manual control of the iPod/iPhone device, the following basic functions are still active:...
-
Page 18: Usb/Sd Card Operation
X2DMA400 OPERATION USB/SD Card Operation Connecting a USB Device To play MP3/WMA files from most mass storage (sold separately) devices,connect a device to the X2DMA400's USB port. Connecting a SD Card To play MP3/WMA files from an SD Card, insert an SD card (sold separately) into the X2DMA400's SD card slot with the label facing up, and press the card until it clicks into place. - Page 19 X2DMA400 OPERATION USB / SD Card Operation File and Folder Search Begin Searching Press SELECT to enter the file/folder search mode. A list of all the folders from the USB/SD device will be displayed. Note: Any files located in the root directory will be located in the folder named "ROOT". Choose a Folder Turn the tuning knob to cycle through all the folders on the device, and press SELECT to choose the desired folder.
- Page 20 X2DMA400 OPERATION USB / SD Card Operation File/Folder Compatibility and Support • CD-ROM (ISO), CD-R, CD-RW • CD-DA (digital audio) Compatible File Types • MP3 data (.mp3) • WMA data (.wma) • AAC data (.m4a) • WAV lossless • FLAC lossless • OGG data • DRM protected files Incompatible File Types • WMA lossless •...
- Page 21 X2DMA400 OPERATION SiriusXM Vehicle Tuner Connections Connecting the SiriusXM Satellite Radio operation requires the connection of the SiriusXM Vehicle Tuner SiriusXM-Connect Vehicle Tuner (sold separately). (sold separately) Note: The SiriusXM-Connect Vehicle Tuner must have the SiriusXM logo to be compatible with the X2DMA400. To connect the SiriusXM Vehicle Tuner, follow the instructions provided with the tuner.
- Page 22 X2DMA400 OPERATION SiriusXM Vehicle Tuner Operation Radio ID To view the Radio ID on the LCD, turn the tuning knob left or right until channel 0 appears. The 8 character Radio ID will appear on the display. The Radio ID is also printed on the underside of the SiriusXM Vehicle Tuner. Note: The Radio ID does not use the letters I, O, S, F.
- Page 23 X2DMA400 OPERATION SiriusXM Vehicle Tuner Operation SiriusXM Setup Menu To access the SiriusXM setup menu options, press and hold AUDIO/MENU for more than 3 seconds, press AUDIO/MENU to cycle through menu options until "SIRIUSXM SETUP" appears, then press SELECT. Press AUDIO/MENU to cycle through the list of submenu options.
- Page 24 X2DMA400 OPERATION SiriusXM Vehicle Tuner Operation Displayed Information Display Press DISP to cycle between the following options: (LINE 1) CHANNEL NAME CONTENT INFO ARTIST (LINE 2) CATEGORY SONG CLOCK CHANNEL Displays the name of the SiriusXM channel. CATEGORY Displays the category type of the current channel. ARTIST Displays the artist's name from the currently playing song.
- Page 25 X2DMA400 OPERATION iTunes Tagging Operation ® Requirements The iTunes Tagging feature of the X2DMA400 requires the optional SiriusXM Vehicle Tuner (sold separately). iTunes Tagging allows the user to "Tag" songs that are playing on Overview SiriusXM Satellite Radio channel and enables them to be purchased later through iTunes.
-
Page 26: Troubleshooting
X2DMA400 OPERATION iTunes Tagging Operation ® Troubleshooting Displayed Message Description There is a compatibility issue with the iPod device that is connected. Check the list of compatible iPod devices below. CHECK iPod VER If the attached iPod device is compatible, update the firmware to the latest version using iTunes. -
Page 27: Limited One Year Warranty
2. If you require service during the the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, transportation with a copy of the original... -
Page 28: Troubleshooting - General
X2DMA400 OPERATION Troubleshooting - General Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse Speaker wires not connected Check connections at speakers Unit has power ... -
Page 29: Specifications
X2DMA400 OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: 40dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 22uV Frequency response: 30Hz-2.2kHz General Speaker output impedance: 4~8 ohms Line output voltage: 2 Volts RMS Dimensions: 7" x 6.7" x 4" (178 x 170 x 100 mm) USB/SD Card... -
Page 30: Fcc Compliance
X2DMA400 OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 31 X2DMA400 OPERATION Notes...
- Page 32 Toll Free: 1-866-382-5476 www.dualav.com ©2011 Dual Electronics Corp. All rights reserved. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.
