Connecting a speaker system to your Aureon 5.1 PCI sound card

You can connect any commercially available active speaker system to your Aureon 5.1 PCI
sound card.
Ensure that the front port is configured as "Line" using JP1.

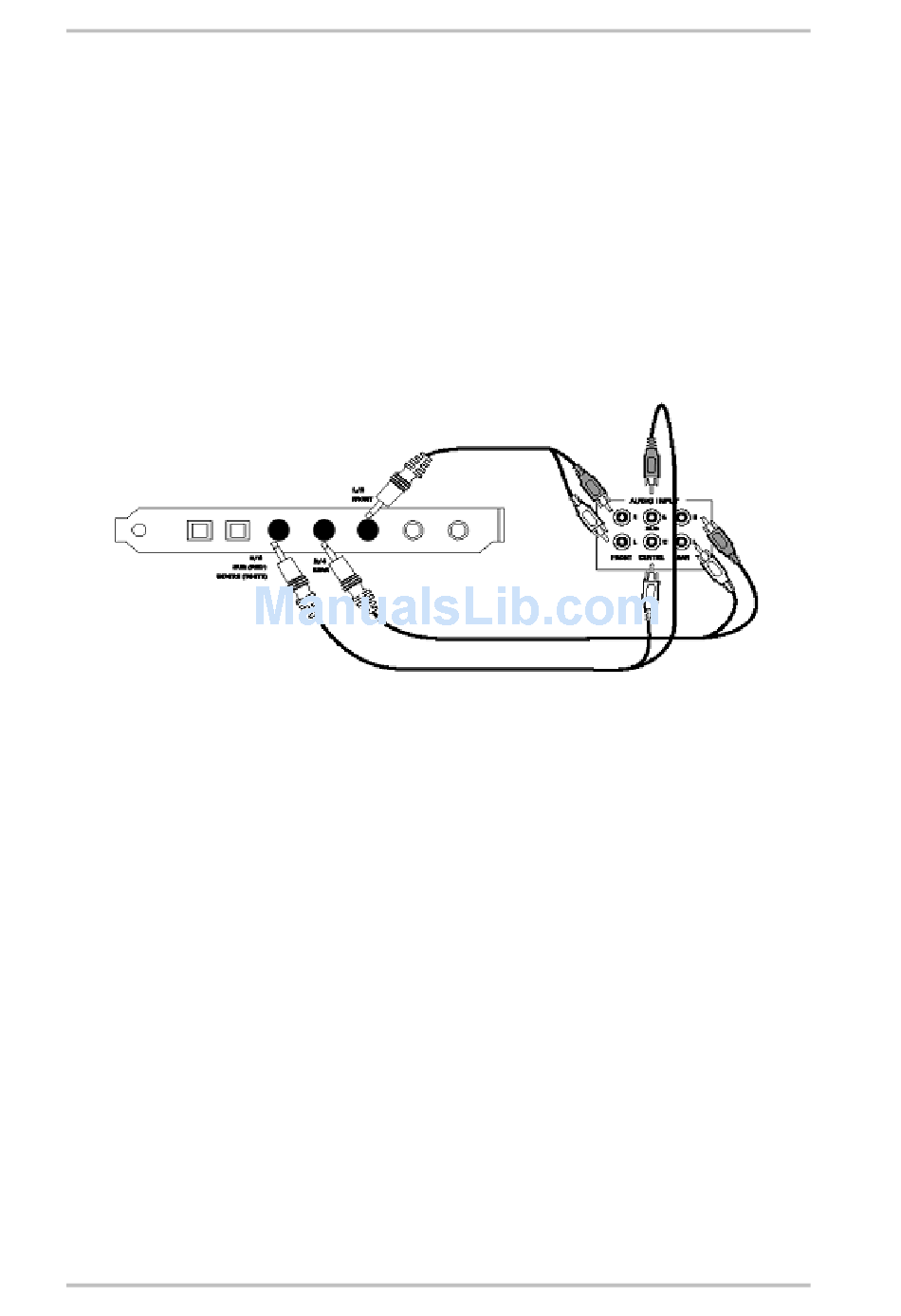

Below is an illustration of the typical connection for a 6-channel (5.1) speaker system (the
required 2x cinch [RCA] to 3.5 mm jack connecting cables are normally included with your
speaker system, such as TerraTec HomeArena products).
To connect a 4-channel speaker system, use only the front and rear ports. For a 2 or 2.1-
channel speaker system, use only the front port of the sound card.
After installing the drivers and software, select the correct speaker configuration in the Aureon
5.1 PCI Control Panel (see the chapter on "The Aureon 5.1 PCI Control Panel").
