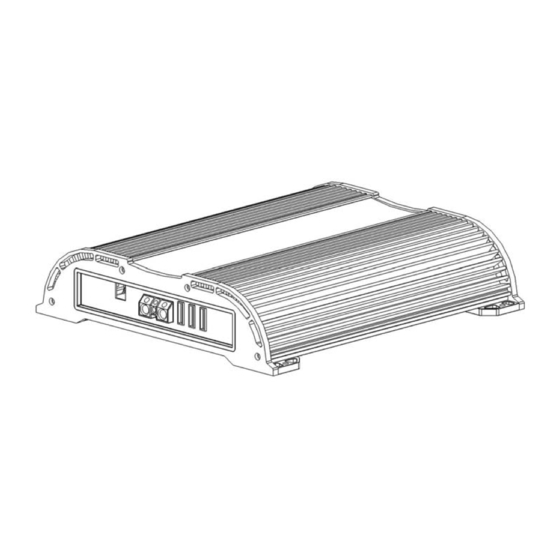

Diamond Audio Technology D5 1200.1 Owner's Manual

Diamond Audio Technology D5 1200.1 Owner's Manual

Professional reference series amplifier

Advertisement

Passion Drives
the Soul
Head Office
410 S. Benson Ln.
Chandler, AZ 85224
Tel: 480-813-6200
Fax: 480-813-6210
Service/ Tech Support
Toll Free 1-866-328-2834
tech@diamondaudio.com
www.diamondaudio.com
Rev 0 32002 © 2002 Diamond Audio Technology, Inc.
All rights Reserved. Features and specifications subject to change without prior notice.
LIMITED WARRANTY STATEMENT
Diamond Audio Technology, Inc. (DAT) warrants all DAT products to be
free of defects in material and workmanship for a period of one (1)
year from the date of original purchase provided they are purchased
from an authorized DAT retailer in the United States. However, the
effective warranty period will be three (3) years if the products were
purchased from and installed by an authorized DAT retailer.
What is covered: Parts and labor to effect repair or, at the sole
discretion of DAT, replacement of either any malfunctioning or
defective part(s) or the entire system should the system or any
component part(s) thereof fail to perform as designed. Includes return
freight via ground transportation to destinations within the United
States.
What is NOT covered: Installation or setup and repair or replacement of
the system or any parts thereof which, in DAT's judgment, fail or
become damaged as a result of negligence, improper use, abuse,
unauthorized modification or service, improper or inadequate
packaging during shipment, installation by a non-authorized dealer,
accident, or use for any purpose other than those for which this
product was originally intended, or where the model's serial number
has been removed, altered or defaced.
Who is covered: Original purchaser so long as they reside in the United
States and can provide proof of the original date of purchase (e.g.,
store receipt) from an authorized DAT retailer.
OUTSIDE THE UNITED STATES: Customers outside the United States
should contact their local sales office to obtain information on prices,
exchange unit availability, instructions, service and warranty/non-
warranty repairs.
Repair or replacement under this warranty is the exclusive remedy of
the consumer.
DAT shall not be liable for any incidental or
consequential damages for breach of any expressed or implied
warranty on this product. Except to the extent prohibited by applicable
law, any implied warranty of merchantability or fitness for a particular
purpose on this product is limited in duration to the duration of this
warranty. Some states do not allow the exclusion or limitation of
incidental or consequential damages, or allow limitations on how long
an implied warranty lasts, so the above limitations or exclusions may
not apply to you. This warranty gives you specific legal rights and you
may also have other rights that may vary from state to state.
HOW TO OBTAIN WARRANTY SERVICE
In the event a DAT product should require servicing, you should (a) visit
an authorized DAT retailer or (b) call the DAT Service Dept. at (866) 328
2834. To be eligible for warranty service within a three (3) year period,
the accompanying receipt of original purchase from an authorized DAT
retailer must specifically note that dealer installation was provided.
Product returned for repair/service must be properly packaged and
clearly marked with the Return Authorization (RA) number issued by
DAT. If the RA number is not clearly marked on the package or no RA
number was issued by DAT, the product may be refused upon delivery.
DAT does not assume responsibility for lost or misdirected product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D5 1200.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Diamond Audio Technology D5 1200.1

  • Page 1 LIMITED WARRANTY STATEMENT Diamond Audio Technology, Inc. (DAT) warrants all DAT products to be free of defects in material and workmanship for a period of one (1) year from the date of original purchase provided they are purchased from an authorized DAT retailer in the United States. However, the effective warranty period will be three (3) years if the products were purchased from and installed by an authorized DAT retailer.
  • Page 2 Professional Reference Series Amplifier 600.1 & 1200.1 Owner’s Manual Serial Number__________________________ Date of Purchase________________________ www.diamondaudio.com...
  • Page 3: Specifications

    • Fly Cut Billet Aluminum End Plates • Fully Adjustable Mounting Feet SPECIFICATIONS Frequency Response: 10 – 500 Hz Signal-to-Noise Ratio: 80dB THD: 0.10% Input Sensitivity: .2 to 5V RMS Input Impedance: >20k Ohms Power Supply Operating Range: 11 to 14.5V DC 1 Diamond Audio Technology...
  • Page 4: Fuse Recommendations

    If a single amplifier is installed, follow the fuse recommendation below. If installing multiple amplifiers, add up the total fuse ratings of all installed amplifiers. This should be used as your main fuse rating. Amplifier Maximum Fuse Rating D5 600.1 D5 1200.1 Diamond Audio Technology 2...
  • Page 5: Mounting Your Amplifier

    Move the flange to the desired location. Carefully tighten the self-tapping bottom screws. Be careful not to over tighten these screws or damage to the head of the screws or stripping of the threads will result. 3 Diamond Audio Technology...
  • Page 6 (including the audio system). Alternator output, battery capacity, and power demand of all electrical loads and systems must be matched as ideally as possible so the entire system is reliable and trouble-free in operation. Diamond Audio Technology 4...
  • Page 7 Run a cable (the same gauge as the main power cable) from the ground distribution block to the negative terminal of the system battery. Your D5 Professional Reference Series Amplifier is designed to accept up to 4 gauge power and ground cable. 5 Diamond Audio Technology...
  • Page 8 REMOTE connection. Strip approximately 1/2 inch of insulation from the wire. Insert the wire into the terminal, and tighten the Allen screw. Your D5 Professional Reference Series Amplifier will accept remote turn-on wire up to 10 gauge directly. Diamond Audio Technology 6...
  • Page 9: Remote Gain

    Although the D5 Class “D” amplifiers have two sets of outputs, they are mono- block and the outputs can not be bridged. The two sets of outputs are paralleled inside the amp to a single channel. This gives you ease during the installation of multiple voice coils or woofers. 7 Diamond Audio Technology...
  • Page 10 180 degrees out of phase. This enables you to use one class D5 as a positive amp and a matching one as a negative amp, doubling your power as one channel. Diamond Audio Technology 8...
  • Page 11 110 Hz 190 Hz 9:00 3:00 9:00 3:00 20 Hz 35 Hz 90 Hz 210 Hz 8:00 4:00 8:00 4:00 17.5 Hz 37.5 Hz 70 Hz 230 Hz 15 Hz 40 Hz 50 Hz 250 Hz 9 Diamond Audio Technology...
  • Page 12: Basic Troubleshooting

    Amplifier is going into thermal protection. Make sure amplifier has room to breathe. Preventing air from reaching the heatsink will cause the amplifier to overheat, as will running the amplifier at too low of an impedance. Diamond Audio Technology 10...
  • Page 13: System Diagram

    SYSTEM DIAGRAM 1 Source Unit Front Rear D5 2 Channel D5 Class "D" 2-way Component Set With Passive Crossovers Subwoofers (1 Ohm Min. Impedence) 11 Diamond Audio Technology...
  • Page 14 SYSTEM DIAGRAM 2 Source Unit Front D5 4 Channel Rear D5 Class "D" Rear Fill 2-way Comp. Set With Passive Crossovers Subwoofers (1 Ohm Min. Impedence) Diamond Audio Technology 12...
  • Page 15 SYSTEM DIAGRAM 3 Source Unit Left Right D5 2 Channel D5 2 Channel (bridged) (bridged) D5 Class "D" 2-way Component Set 2-way Component Set with Passive Crossovers with Passive Crossovers Subwoofers (1 Ohm Min. Impedence) 13 Diamond Audio Technology...
  • Page 16 D5 4 Channel (bridged) (bridged) Rear Fill Rear Fill 2-way Component Set 2-way Component Set with Passive Crossovers with Passive Crossovers D5 Class "D" D5 Class "D" Subwoofers Subwoofers (1 Ohm Min. Impedence) (1 Ohm Min. Impedence) Diamond Audio Technology 14...
