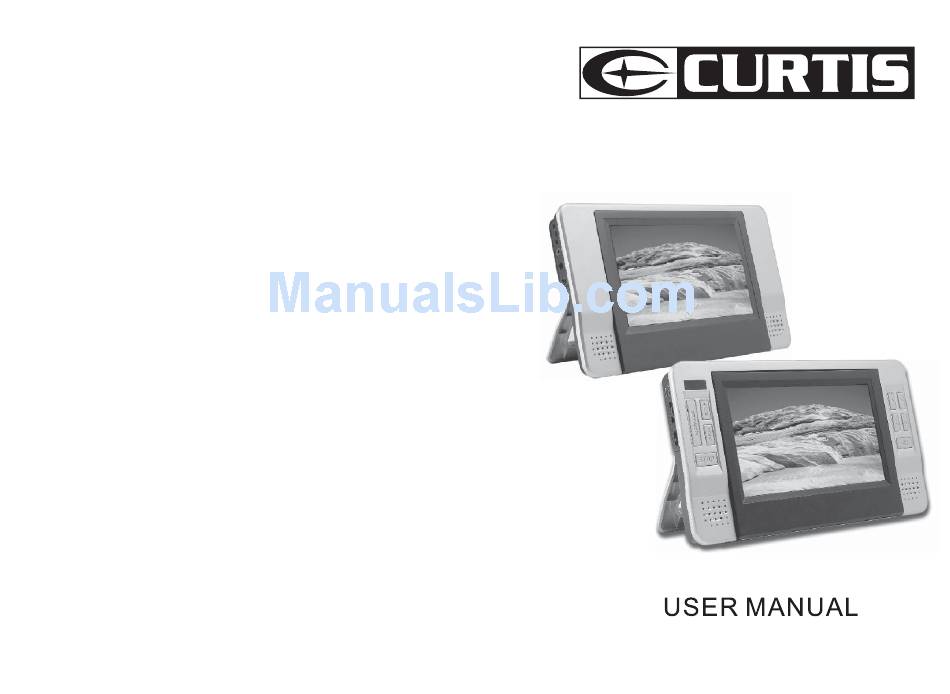

- Page 1 DVD8727...
-
Page 2: Table Of Contents

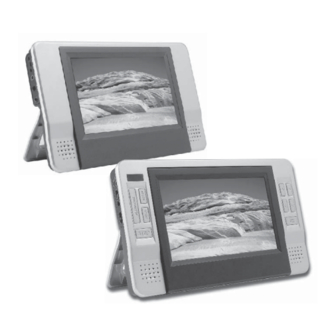

Introduction Thank you for choosing our portable DVD player. It includes a 7” wide screen DVD player and a 7 wide screen monitor. The unit applies the latest state of art electronics and is designed for use at home, in hotels and in offices etc for relaxation. The compact size makes carrying easier as well as installation. -
Page 3: Main Features
The Main Features Unit View High brightness color 7” LCD screen Compatible with disc of DVD, VCD, MP3, MP4, CD, JPEG, etc. The machine only reads Regional 1 Disc. Built-in stereo speaker Built-in rechargeable Lithium polymer battery . OPEN Support PAL or NTSC system Support Multi-language OSD, speed forward/backward, repeat function Zoom in/out function Support AV in/out signal function... -
Page 4: The Remote Control
The Remote Control The use of Remote Control Please put the battery into the remote control as per below illustration CR2025 CR2025 When using remote control, make sure the infrared window is pointed to infrared receiving window of the machine. The distance between machine and remote control must be within 3 metres. -
Page 5: Powering And Installation
Powering and installation Plug one end of the AC/DC power adaptor into the DC input jack on the right of the main unit, then plug the other end into the AC power receptacle. Please refer to the following illustration AV IN/OUT DC Out DC IN 9V AV IN/OUT... -
Page 6: Connecting With External Speaker
Connecting with external Speaker Connecting with external AV signal The unit can be connected with external speaker. Please see the following illustration AV IN/OUT DC OUT DC IN 9V AV IN/OUT DC OUT DC IN 9V AV CABLE (Yellow) (White) AV CABLE (Red) VIDEO IN... -
Page 7: Basic Operation
Basic Operation Fast forward and fast backward MPEG4 SVCD When playing disc of DVD, MPEG4,SVCD, VCD, CD, the unit can speed forward or backward to search the favorite scene to play. MPEG4 SVCD 1. Press , the unit will speed forward. Press it repeatedly ,the unit will play at 2, 4, 8, 16, 32 times of speed Playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3. - Page 8 Repeat playing of favorite scene Zoom in/ out MPEG4 SVCD MPEG4 SVCD When playing disc of DVD, MPEG4, SVCD, VCD, When playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3, user can play the user can zoom in or zoom out the image . favorite scene or chapter.
- Page 9 Playing JPG file 1. Place a JPG disc into the tray, the unit will start reading and play 2. Press “MENU” to browse JPG files. 3. Press and “OK” button to select a JPG file. Note:you can press MENU to return to the folder list. Press or “...
- Page 10 French Italian...
-
Page 11: Specification
Specification Troubleshooting Compatible DISC: DVD/VCD/CD/MP3/MPEG4 Signal system: PAL/NTSC PROBLEM SOLUTION Panel size: 7 inch Frequency response: 20 Hz to 20 kHz Make sure the machine is connected properly. Video output: 1 Vp-p/75 Ohm, unbalanced No sound or Make sure all cables are securely inserted into Audio output: 1.4Vrms/10kOhm distorted sound the appropriate jacks.
