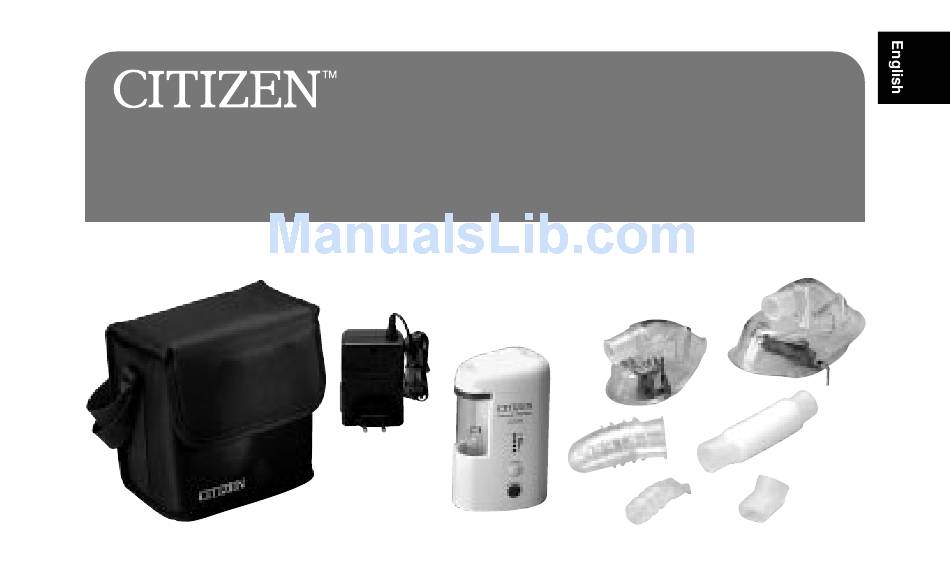

- Page 1 INSTRUCTION MANUAL ULTRASONIC NEBULIZER MODEL CUN60 - Eng 1 -...
- Page 2 FEATURES Handy design - with built-in detachable battery pack; compact and light- weight. Easy to use - uses water as ultrasonic conducting medium, no gel re- quired. Silent operation - thanks to the ultrasonic vibration technology. 3-speed nebulization rate control - provides optimal treat-ment for all kinds of medication with different density.
-
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS READ ALL INSTRUCTIONS CAREFULLY BEFORE USE Do not fill medication cup over 8 ml or the nebuliza- PREPARATION tion will be very weak. Use the equipment only for its intended use as de- scribed in this manual. Do not use attachments not recommended by the manufacturer. - Page 4 Never open the clear cover during operation. It may Manufacturer: cause a severe injury. Name: Vega Technologies Inc. Do not use the equipment for more than 30 minutes. Address: 11F-13, 100 Chang-Chan Road, Do not reuse within 30 minutes. Taipei, Taiwan Some medications may not have good atomization.
-
Page 5: Parts Description
PARTS DESCRIPTION Water reservoir Mouth nozzle Low-battery Filter cover Main body indication lamp Nebulization rate Air filter Indication lamps Top cover ON/OFF button Nebulization rate control button Medication cup Rechargeable Battery pack - Eng 5 -... -
Page 6: Operation
OPERATION 2. FILL MEDICATION CUP To use the equipment for the first time, or after stor- ing it for an extended period, be sure to clean and a. Replace medication cup on water reservoir. sterilize all necessary parts as described on page 8. b. - Page 7 4. TURN ON THE POWER 6. FINISH OPERATION a. Make sure water reservoir and medication cup are a. Press the On/Off button to stop operation. properly filled, and the unit is placed on a flat and dry b. Turn the switch at bottom to “OFF/CHARGE” position. surface.
- Page 8 CLEANING Be sure to clean and sterilize all necessary parts after 2. CLEANING each use. a. Nose piece, mouth nozzle, extension tube, mask, top Always unplug this product before cleaning. cover, medication cup, air filter & filter cover: Clean Never immerse the equipment in water. It may dam- with mild detergent or commercially available disin- age the unit.
-
Page 9: Specifications
SPECIFICATIONS Power: 220-240VAC 50/60Hz Power consumption: Approx. 10W Ultrasonic frequency: 2.5MHz Nebulization rate: 3-speed adjustable, 0.2 - 0.7 ml/min. depending on medication density Particle size: 5 m MMAD Medication cup capacity: Approx. 8 ml max. Transport & storage condition: –10 ~ 50 C; 45 ~ 85% Safety classification: Type B apparatus;... -
Page 10: Troubleshooting
TROUBLESHOOTING Should any problem persist after you have made the following checks, return the product to a nearest service center for examination and repair. Symptom Cause and/or solution • Check that AC adapter is plugged in firmly. • Check that switch at bottom is turned ON. Unit does not operate when •... -
Page 11: Rechargeable Battery
RECHARGEABLE BATTERY The RB60L rechargeable battery is used to provide 1. CHARGING THE BATTERY power for NB-08L nebulizer while AC power is not a. Install the battery pack by sliding it into the right-bottom available or not used. of nebulizer. Do not use the battery with equipment other than b. -
Page 12: Using The Battery
2. USING THE BATTERY a. Turn the switch at bottom of nebulizer to “ON” posi- tion. The LED indicator will be lit. b. Start using the nebulizer as described on page 6. c. After operation is finished, turn the switch at bottom to “OFF/CHARGE”... - Page 13 RECHARGEABLE BATTERY Battery type: Ni-MH Battery voltage: 12VDC Charging current: 40 ~ 100 mA Charging time: Minimum 24 hours first time; 4 ~ 12 hours thereafter depending on duration of usage Capacity: 480 mAH/12VDC (approx. 30-minute continuous use) Operating temperature: 0 ~ 45 C (32 ~ 112 F) Storage temperature: –18 ~ 45 C (0 ~ 112 F)
- Page 14 CITIZEN is a registered trademark of Citizen Watch Co., Japan. Consumer Electronics Division CBM Bldg. 5F, 5-68-10, Nakano, Nakano-ku, Tokyo 164-0001, Japan Phone: (03)5345-7430 Fax: (03)5345-7431 E-mail: info-con@jcbm.co.jp...
