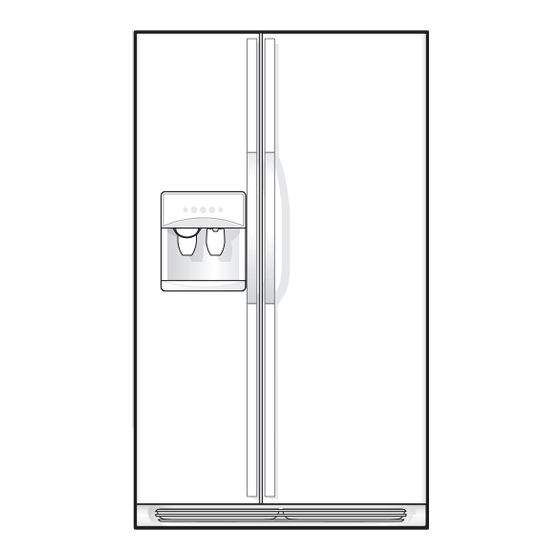

Frigidaire Electrolux FRS26HF6B Parts Catalog
  1. Manuals
  2. Brands
  3. Frigidaire Electrolux Manuals
  4. Refrigerator
  5. FRS26HF6B
  6. Parts catalog

Frigidaire Electrolux FRS26HF6B Parts Catalog

Side by side
Hide thumbs

Advertisement

Table of Contents

PRODUCT NO.
BASE MODEL NO.
FRS26HF6BB2
FRS26HF6B
FRS26HF6BQ2
FRS26HF6B
FRS26HF6BW2
FRS26HF6B
MARKET
North American
WIRING DIAGRAM - # 240389609
OWNER'S GUIDE - # 240389310
SERVICE DATA SHEET - #240389609
ELECTROLUX HOME PRODUCTS, INC.
P.O. BOX 212378, Augusta, GA 30917
SERIES
COLOR
R134a
black
R134a
bisque
R134a
white
Publication No.
5995387494
030317
-EN/SERVICE /ECL
357
PARTS CATALO
VOLTS
115
115
115
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS26HF6B
©2003 Electrolux Home Products, Inc.
All rights reserved
FACTORY
G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRS26HF6B and is the answer not in the manual?

Questions and answers

Summary of Contents for Frigidaire Electrolux FRS26HF6B

  • Page 1 FACTORY PARTS CATALO PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS FRS26HF6BB2 FRS26HF6B R134a black FRS26HF6BQ2 FRS26HF6B R134a bisque FRS26HF6BW2 FRS26HF6B R134a white MARKET North American WIRING DIAGRAM - # 240389609 OWNER’S GUIDE - # 240389310 SERVICE DATA SHEET - #240389609 SIDE BY SIDE REFRIGERATOR ELECTROLUX HOME PRODUCTS, INC.

  • Page 2: Freezer Door

    Publication No. FRS26HF6B 5995387494 FREEZER DOOR 03/03...
  • Page 3 FRS26HF6B Publication No. 5995387494 FREEZER DOOR A = FRS26HF6B (FRS26HF6BB2) B = FRS26HF6B (FRS26HF6BQ2) C = FRS26HF6B (FRS26HF6BW2) POS. NO PART NO DESCRIPTION 240390606 A - - Gasket-frzr door,black ,magnetic 240390602 - B C Gasket-frzr door,white ,magnetic 240334201 A B C Bin-door,frzr-upper 240351601 A B C...

  • Page 4: Refrigerator Door

    Publication No. FRS26HF6B 5995387494 REFRIGERATOR DOOR 03/03...
  • Page 5 FRS26HF6B Publication No. 5995387494 REFRIGERATOR DOOR A = FRS26HF6B (FRS26HF6BB2) B = FRS26HF6B (FRS26HF6BQ2) C = FRS26HF6B (FRS26HF6BW2) POS. NO PART NO DESCRIPTION 240390605 A - - Gasket-refr door,black ,magnetic 240390601 - B C Gasket-refr door,white ,magnetic 240323001 A B C Bin-door,pseudo ,bottom 240326203 A B C...
  • Page 6 Publication No. FRS26HF6B 5995387494 CABINET 03/03...
  • Page 7 FRS26HF6B Publication No. 5995387494 CABINET A = FRS26HF6B (FRS26HF6BB2) B = FRS26HF6B (FRS26HF6BQ2) C = FRS26HF6B (FRS26HF6BW2) POS. NO PART NO DESCRIPTION 240435902 A B C Cover-air duct 240475902 A B C Cover-evap coil,lower 5303208309 A B C Plug-hole,factory test 240505801 A B C Switch,light/lamp...
  • Page 8 Publication No. FRS26HF6B 5995387494 SHELVES 03/03...
  • Page 9 FRS26HF6B Publication No. 5995387494 SHELVES A = FRS26HF6B (FRS26HF6BB2) B = FRS26HF6B (FRS26HF6BQ2) C = FRS26HF6B (FRS26HF6BW2) POS. NO PART NO DESCRIPTION 240434604 A B C Trim-basket 240338802 A B C Shelf-freezer,flip-up 240338704 A B C Shelf-freezer,fixed wire 240324101 A B C Shelf-pizza 240436702 A B C...
  • Page 10 Publication No. FRS26HF6B 5995387494 CONTROLS 03/03...
  • Page 11 FRS26HF6B Publication No. 5995387494 CONTROLS A = FRS26HF6B (FRS26HF6BB2) B = FRS26HF6B (FRS26HF6BQ2) C = FRS26HF6B (FRS26HF6BW2) POS. NO PART NO DESCRIPTION 5308000010 A B C Fan Blade,red ,evaporator fan 5300157666 A B C Bushing-motor mtg,(2) 5303292396 A B C Bracket-motor mtg,front 13 # 240315802...
  • Page 12 Publication No. FRS26HF6B 5995387494 SYSTEM 03/03...
  • Page 13 FRS26HF6B Publication No. 5995387494 SYSTEM A = FRS26HF6B (FRS26HF6BB2) B = FRS26HF6B (FRS26HF6BQ2) C = FRS26HF6B (FRS26HF6BW2) POS. NO PART NO DESCRIPTION 240333603 A B C Condenser 5308000110 A B C Strap-evap/heater,aluminum ,(2) 218679607 A B C Block-evap coil,styrofoam ,(2) 218944001 A B C Drier-filter,R134a System...
  • Page 14 Publication No. FRS26HF6B 5995387494 DISPENSER 03/03...
  • Page 15 FRS26HF6B Publication No. 5995387494 DISPENSER A = FRS26HF6B (FRS26HF6BB2) B = FRS26HF6B (FRS26HF6BQ2) C = FRS26HF6B (FRS26HF6BW2) POS. NO PART NO DESCRIPTION 218976409 A B C Tube-water 218976901 A B C Tube-water inlet,inlet valve ,to ice maker 218976903 A B C Tube-water inlet,inlet valve ,to filter 218976907 A B C...

  • Page 16: Ice Container

    Publication No. FRS26HF6B 5995387494 ICE CONTAINER 03/03...
  • Page 17 FRS26HF6B Publication No. 5995387494 ICE CONTAINER A = FRS26HF6B (FRS26HF6BB2) B = FRS26HF6B (FRS26HF6BQ2) C = FRS26HF6B (FRS26HF6BW2) POS. NO PART NO DESCRIPTION 5304428402 A B C Auger-ice 5304404343 A B C Cam-drive 218815300 A B C Container-ice,bucket only 5304404346 A B C Drum-ice disp 5304422805...

  • Page 18: Ice Maker

    Publication No. FRS26HF6B 5995387494 ICE MAKER 03/03...
  • Page 19 FRS26HF6B Publication No. 5995387494 ICE MAKER A = FRS26HF6B (FRS26HF6BB2) B = FRS26HF6B (FRS26HF6BQ2) C = FRS26HF6B (FRS26HF6BW2) POS. NO PART NO DESCRIPTION 218976409 A B C Tube-water 218976901 A B C Tube-water inlet,inlet valve ,to ice maker 218976903 A B C Tube-water inlet,inlet valve ,to filter 218976907 A B C...

  • Page 20: Wiring Schematic

    Publication No. FRS26HF6B 5995387494 WIRING SCHEMATIC 03/03...

  • Page 21: Wiring Diagram

    FRS26HF6B Publication No. 5995387494 WIRING DIAGRAM # = Fast-moving Parts 03/03 * = Non-Illustrated Parts...

This manual is also suitable for:

Frs26hf6bb2Frs26hf6bq2Frs26hf6bw2
