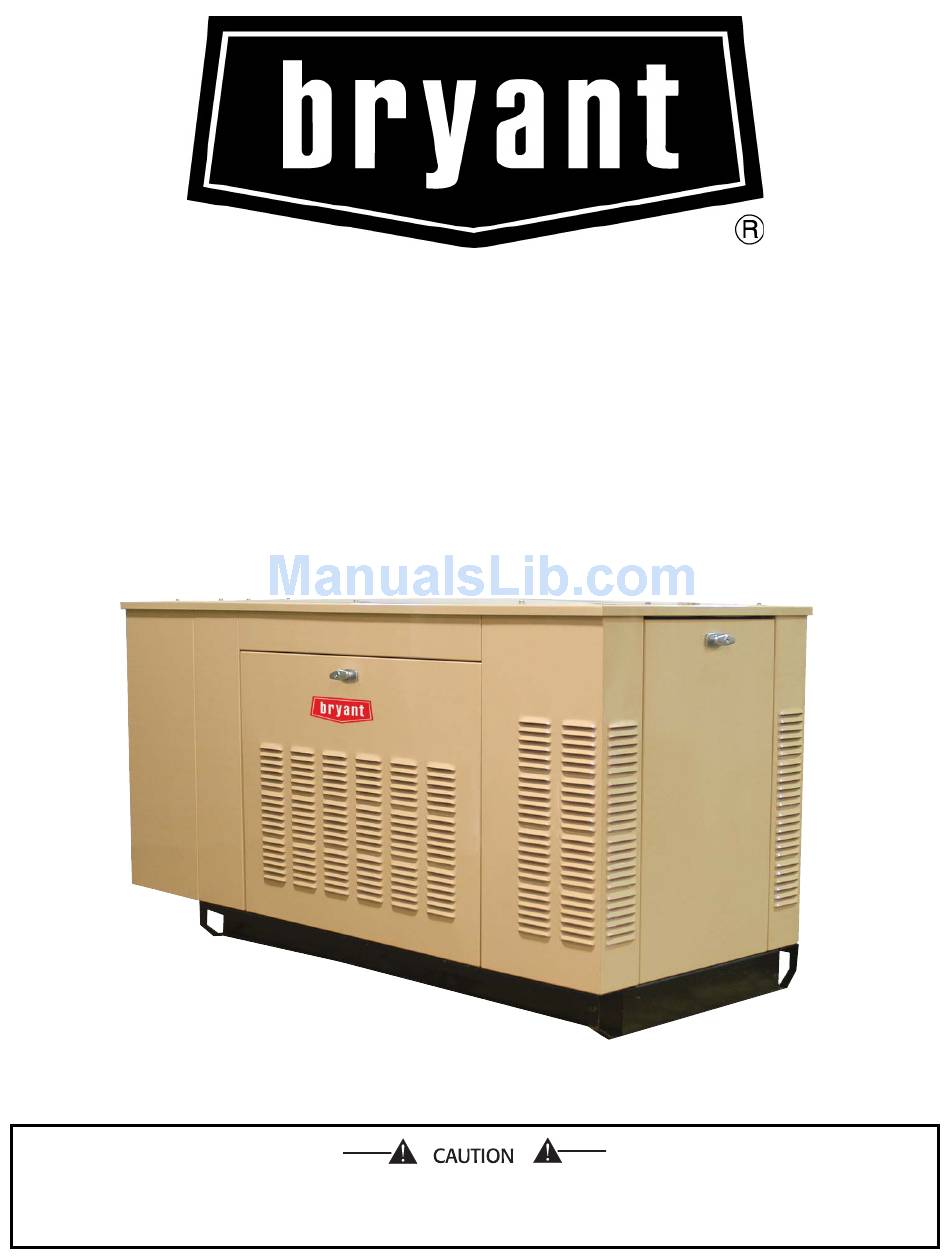

Owner's Manual
Liquid-cooled, Prepackaged
Standby Generators
Model No. ASPAS1BBL025 (25kW)
This manual should remain with the unit.
ONLY QUALIFIED ELECTRICIANS OR CONTRACTORS
SHOULD ATTEMPT INSTALLATION!!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASPAS1BBL025 and is the answer not in the manual?

Questions and answers

Doryne Isley
June 13, 2025

Do you sell exterior covers for this model

0

Subscribe to Our Youtube Channel

Related Manuals for Bryant ASPAS1BBL025

Summary of Contents for Bryant ASPAS1BBL025

  • Page 1 Owner’s Manual Liquid-cooled, Prepackaged Standby Generators Model No. ASPAS1BBL025 (25kW) This manual should remain with the unit. ONLY QUALIFIED ELECTRICIANS OR CONTRACTORS SHOULD ATTEMPT INSTALLATION!!

  • Page 2: Introduction

    INTRODUCTION The operator is responsible for proper and safe use of the equipment. Bryant strongly recommends that Thank you for purchasing a Bryant home standby the operator reads this Owner's Manual and thor- generator system. oughly understands all instructions before using this Every effort was expended to make sure that the equipment.

  • Page 3: Table Of Contents

    Table of Contents Bryant Liquid-cooled 25 kW Generator INTRODUCTION ..........IFC Section 3 — OPERATION ........12 Read this Manual Thoroughly........IFC Engineered GTS Transfer Switch ......12 Operation and Maintenance ........IFC Control Console Components......14 How to Obtain Service ..........IFC Manual Transfer and Startup ......14 SAFETY RULES ............2...

  • Page 4: Safety Rules

    If using a procedure, work method or operating technique critical to prevent buildup of explosive gases and to ensure that Bryant does not specifically recommend, ensure that it is correct generator operation. Do not alter the installation or safe for others. Also make sure the procedure, work method or...

  • Page 5: Explosion Hazards

    • Bryant generator sets may operate using one of several • The National Electrical Code (NEC), Article 250 requires types of fuels. All fuel types are potentially FLAMMABLE the frame and external electrically conductive parts of the and/or EXPLOSIVE and should be handled with care.

  • Page 6: Section 1 - General Information

    Section 1 - General Information Bryant Liquid-cooled 25 kW Generator GENERATOR AUTOMATIC SYSTEM OPERATION This equipment is a liquid-cooled, engine-driven gen- When this generator, along with a transfer switch, has erator set. The generator is designed to supply elec- been installed and interconnected, a circuit board in...

  • Page 7: Generator Fuel System

    Section 1 - General Information Bryant Liquid-cooled 25 kW Generator GENERATOR FUEL SYSTEM 1.7.1 LOW OIL PRESSURE SWITCH This unit has been factory tested and adjusted using This switch is normally-closed (N.C.) but is held open a natural gas fuel system. If propane (LP) gas is pre- by engine oil pressure during engine running.

  • Page 8: Unpacking

    Section 1 — General Information Bryant Liquid-cooled 25 kW Generator Figure 1.6 - Low Coolant Level Sensor LIFTING THE GENERATOR When lifting or hoisting equipment is used, be careful not to touch overhead power lines. The generators weight of more than 900 pounds...

  • Page 9: Fuel Consumption

    Section 1 — General Information Bryant Liquid-cooled 25 kW Generator * Rated power of generator is subject to and limited by such Figure 1.8 — Reconfigure the Fuel System factors as ambient temperature, altitude, engine condition, and other factors. Engine power will decrease about 2.5% for...

  • Page 10: Coolant Recommendations

    Section 2 — Installation Bryant Liquid-cooled 25 kW Generator 1.14 COOLANT RECOMMENDATIONS If an open bottom is used, the engine-genera- tor must be installed over non-combustible Use a mixture of half low silicate ethylene glycol base materials and should be located such that com- anti-freeze and half deionized water.

  • Page 11: Generator Location

    This reduces the length of wiring NOTE: and conduit. Bryant recommends the use of a Bryant transfer • Install the generator as close as possible to the fuel switch in conjunction with this generator. supply, to reduce the length of piping. HOWEVER,...

  • Page 12: Total Circuit Isolation Method

    Section 2 — Installation Bryant Liquid-cooled 25 kW Generator TOTAL CIRCUIT ISOLATION GENERATOR AC NEUTRAL METHOD CONNECTIONS When a generator capable of powering all electrical Bryant uses UNGROUNDED neutral. loads in the circuit is to be installed, the “Total Grounding is recommended only at the main service Circuit Isolation Method”...

  • Page 13: Preparation Before Start-Up

    Section 2 — Installation Bryant Liquid-cooled 25 kW Generator Storage batteries give off explosive hydrogen • DO NOT SMOKE when near batteries, gas. This gas can form an explosive mixture • DO NOT cause flame or spark in battery area, and around the battery for several hours after •...

  • Page 14: Section 3 - Operation

    Section 3 - Operation Bryant Liquid-cooled 25 kW Generator CONTROL CONSOLE 2.11.2 TRANSFER SWITCH COMPONENTS If this generator is used to supply power to any elec- trical system normally powered by an electric utility, The components of a home standby generator control the National Electrical Code requires that a transfer console (Figure 3.1) are as follows:...
  • Page 15 Section 3 - Operation Bryant Liquid-cooled 25 kW Generator 3.1.3 15 AMP FUSE 3.1.6 SYSTEM READY LED This fuse protects the control console’s DC control The System Ready LED (green) has two main pro- circuit against electrical overload and is located inside poses.

  • Page 16: Control Console Components

    Section 3 - Operation Bryant Liquid-cooled 25 kW Generator MANUAL TRANSFER AND 6. Reduce load to 3/4, 1/2, 1/4 and no load. Decrease the stability pot if there is instability at START-UP any load point. To transfer electrical loads to the Standby (EMER- 7.

  • Page 17: Weekly Exercise Cycle

    Section 3 - Operation Bryant Liquid-cooled 25 kW Generator 2. Press and hold the “Set Exercise” switch for five CONTROL BOARD DIP SWITCH seconds, then release. SETTINGS At this time all five red LEDs will flash for approxi- Located on the control board is an eight position DIP mately 10 seconds, then the engine will start and run switch (see Figure 3.2).

  • Page 18: Section 4 - Maintenance

    Section 4 — Maintenance Bryant Liquid-cooled 25 kW Generator MAINTENANCE PERFORMED BY INTAKE MANIFOLD PROCEDURE 1. Clean and inspect the mounting surfaces of the AUTHORIZED SERVICE FACILITIES intake manifold and the cylinder head. Both sur- faces must be clean and flat (Figure 4.1).

  • Page 19: Cooling System

    Section 4 — Maintenance Bryant Liquid-cooled 25 kW Generator COOLING SYSTEM • Remove oil dipstick and wipe dry with a clean, lint-free cloth. Air intake and outlet openings in the generator com- • Install oil dipstick, then remove again. partment must be open and unobstructed for contin- •...
  • Page 20 Section 4 — Maintenance Bryant Liquid-cooled 25 kW Generator 4.8.5 CHECK ENGINE COOLANT LEVEL 4. Turn OIL FILTER (Figure 4.1) counterclockwise and remove. Properly dispose of old filter. See “Checking Fluid Levels”. 5. Apply light coating of new engine oil to seal of new oil filter.

  • Page 21: Miscellaneous Maintenance

    Bryant Liquid-cooled 25 kW Generator 4.8.13 COOLANT CHANGE 4.9.3 BATTERY MAINTENANCE Every year, have a Bryant dealer drain, flush and The battery should be inspected per Section 4.7, refill the cooling system. See “Specifications” for cool- Scheduled Maintenance. The following procedure ing system recommendations.
  • Page 22 Section 4 — Maintenance Bryant Liquid-cooled 25 kW Generator 4.9.4 BATTERY REPLACEMENT PERIODIC REPLACEMENT PARTS When replacing batteries, use the same number and Part Name Part Number the type of battery that follows: Oil Filter # 0F4604A Radiator Cap # 046627 BCI Group No.

  • Page 23: Scheduled Maintenance

    Section 4 — Maintenance Bryant Liquid-cooled 25 kW Generator 4.10 SCHEDULED MAINTENANCE Following is a recommended maintenance schedule for small standby and residential generator sets. The estab- lished intervals in the schedule are the maximum recommended when the unit is used in an average service appli- cation.
  • Page 24 Section 4 — Maintenance Bryant Liquid-cooled 25 kW Generator Maintenance Level 1 Level 2 Level 3 Level 4 Tasks Recom- Task Required Task Required Task Task mended Comp. to be done Comp. to be done Comp. Required Comp. to be done...
  • Page 25 Section 4 — Maintenance Bryant Liquid-cooled 25 kW Generator Maintenance Level 1 Level 2 Level 3 Level 4 Tasks Recom- Task Required Task Required Task Task mended Comp. to be done Comp. to be done Comp. Required Comp. to be done...

  • Page 26: Section 5 - Troubleshooting

    Under normal operating conditions, if repair of generator set or replacement of any parts is necessary dur- ing the warranty period, you must contact a dealer. Failure to have the repair or replacement performed by a Bryant dealer will result in non-coverage of warranty repair cost. 24 Bryant...

  • Page 27: Section 6 - Notes

    Section 6 — Notes Bryant Liquid-cooled 25 kW Generator Bryant 25...
  • Page 28 Section 6 — Notes Bryant Liquid-cooled 25 kW Generator 26 Bryant...
  • Page 29 Section 6 — Notes Bryant Liquid-cooled 25 kW Generator Bryant 27...

  • Page 30: Section 7 - Electrical Data

    Section 7 - Electrical Data Bryant Liquid-cooled 25 kW Generator Wiring Diagram — 2.5L Engine — Drawing No. 0F1411-A 28 Bryant...
  • Page 31 Section 7 - Electrical Data Bryant Liquid-cooled 25 kW Generator Wiring Diagram — 2.5L Engine — Drawing No. 0F1411-A Bryant 29...
  • Page 32 Section 7 - Electrical Data Bryant Liquid-cooled 25 kW Generator Electrical Schematic — 2.5L Engine — Drawing No. 0F1413-A 30 Bryant...
  • Page 33 Section 7 - Electrical Data Bryant Liquid-cooled 25 kW Generator Electrical Schematic — 2.5L Engine — Drawing No. 0F1413-A Bryant 31...
  • Page 34 Section 7 - Electrical Data Bryant Liquid-cooled 25 kW Generator Wiring Diagram — 2.5L Engine (25kW unit) —Drawing No. 0E9982-C 32 Bryant...
  • Page 35 Section 7 - Electrical Data Bryant Liquid-cooled 25 kW Generator Wiring Diagram — 2.5L Engine (25kW unit) —Drawing No. 0E9982-C Bryant 33...
  • Page 36 Section 7 - Electrical Data Bryant Liquid-cooled 25 kW Generator Electrical Schematic — 2.5L (25kW unit) — Drawing No. 0E9983-C 34 Bryant...
  • Page 37 Section 7 - Electrical Data Bryant Liquid-cooled 25 kW Generator Electrical Schematic — 2.5L (25kW unit) — Drawing No. 0E9983-C Bryant 35...

  • Page 38: Parts Lists

    36 Bryant...
  • Page 39 Bryant 37...
  • Page 40 38 Bryant...
  • Page 41 Bryant 39...
  • Page 42 40 Bryant...
  • Page 43 Bryant 41...
  • Page 44 42 Bryant...
  • Page 45 Bryant 43...
  • Page 46 44 Bryant...
  • Page 47 Bryant 45...
  • Page 48 46 Bryant...
  • Page 49 Bryant 47...
  • Page 50 ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 0F2912 PIPE MUFFLER OUT 047411 SCREW HHC M6-1.0 X 16 G8.8 0F2869 PIPE EXHAUST 2.5L FORD 022097 WASHER LOCK M6-1/4 0F2823 MUFFLER 2.5L FORD 022473 WASHER FLAT 1/4-M6 ZINC 036434 BOLT U 5/16-18 X 2.09 049813 NUT HEX M6 X 1.0 G8 YEL CHR...
  • Page 51 ITEM PART NO. QTY. DESCRIPTION 098290 ASM MOTOR STEPPER 098941A HOUSING GOVERNOR CONNECTOR 0F0454 HARN GOV 2.5L FORD 098942A COVER CONNECTOR HOUSING 098225 SCREW PFHST #2 X 5/8 043146 SCREW HHC M6-1.0 X 10 G8.8 022097 WASHER LOCK M6-1/4 0E7358 SCREW PPPH HI-LO #4-24 X 3/8 098783 LEVER STEPPER MOTOR...

  • Page 53: Section 9 - Installation Diagram

    Section 9 — Installation Diagram Bryant Liquid-cooled 25 kW Generator Installation Diagram — Drawing No. 0F1020-A Bryant 51...

  • Page 54: Section 10 - Warranty

    Generac. The ECS Warranty applies only to the emission control system of your new engine. If there is any conflict in terms between the ECS Warranty and the Bryant Warranty, the ECS Warranty shall apply except in circumstances where the Generac Warranty may provide a longer warranty period.

  • Page 55: Emission Control System Warranty

    Section 10 – Warranty Bryant Liquid-cooled 25 kW Generator EMISSION CONTROL SYSTEM WARRANTY Emission Control System Warranty (ECS Warranty) for 1995 and later model year engines: (a) Applicability: This warranty shall apply to 1995 and later model year engines. The ECS Warranty Period shall begin on the date the new engine or equipment is purchased by/delivered to its original, end-use purchaser/owner and shall con- tinue for 24 consecutive months thereafter.
  • Page 56 "PREPACKAGED EMERGENCY AUTOMATIC STANDBY GENERATORS" For a period of two years from the date of original sale, Bryant warrants that its generator will be free from defects in material and workmanship for the items and period set forth below. Bryant will, at its option, repair or replace any part which, upon examination, inspection and testing by a Bryant Dealer, is found to be defective.
