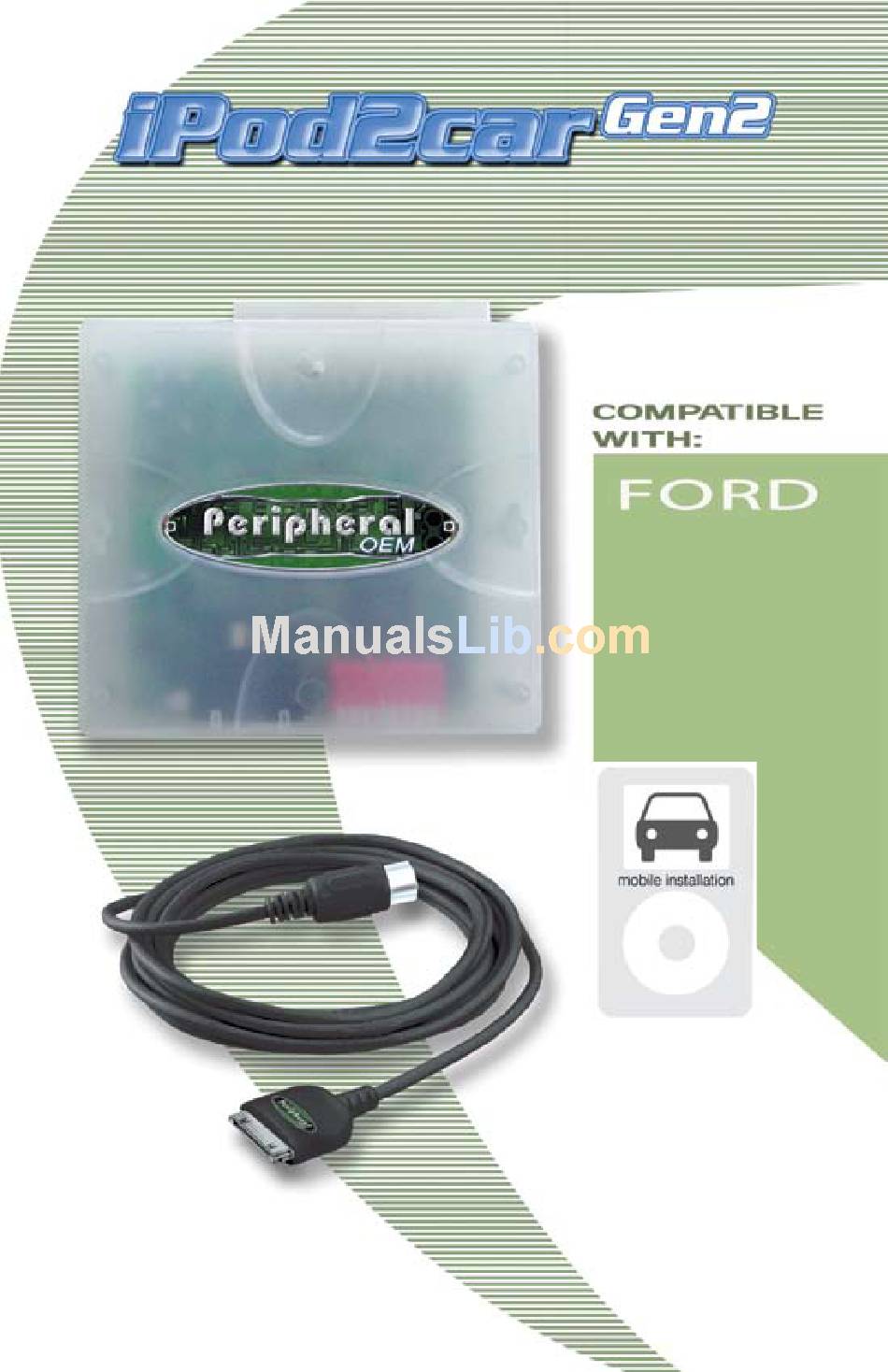

- Page 1 (CAN-BUS) I n S t r U C t I o n M A n U A l Peripheral Electronics®, a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 866-788-4237 in the US or 727-572-9255 ext.265 for international calls support@peripheralelectronics.com...
-
Page 2: Table Of Contents
Table of Contents CHAPTER 1- Getting Started 1.1 Introduction 1.2 Precautions 1.3 Compatibility notes 1.4 Configuration & Harnesses selection 1.5 Programming the iPod2car CHAPTER 2- Ford Installation CHAPTER 3 - Operation 3.1 General operation overview 3.2 Ford Specific Operation 3.3 Troubleshooting 3.4 Warranty 3.5 Warning 3.6 FCC Statement... -
Page 3: Chapter 1- Getting Started 1.1 Introduction
Chapter 1- Getting Started 1.1 Introduction Thank you for purchasing Peripheral Electronic’s® iPod2car Gen2 interface for OEM radios. The iPod2car Gen2 OEM is designed to provide endless hours of listening pleasure from your factory radio. To ensure that your iPod performs cor- rectly with your radio, we recommend that you read this entire manual before at- tempting installation of the iPod2car interface. -
Page 4: Compatibility Notes
Docking cable Radio specific harness iPod2car interface 1.3 Compatibility Notes This section will inform you of the specific requirements for your factory radio to be compatible with the iPod2car Gen2 oEM. these notes will in- form you of any issues or circumstances that can affect the compatibility of our product with your radio, audio system, or accessories. -
Page 5: Programming The Ipod2Car
1.5 Programming the iPod2car To program the interface, set the dip-switches located on the side of the interface (see Fig.1 below) to the configuration listed for your radio on the Harness and Dip Switch Configuration Chart. Switches are in their default setting of “off”... -
Page 6: Chapter 3- Operation
Chapter 3- Operation this chapter will explain how to control the iPod from your factory radio. This will include selecting the iPod, searching for music with the browse menu, and using the Fast Forward, Rewind, Repeat and Random func- tions. 3.1 General Operation Overview Fast Forward When playing a track on the iPod if you want to advance further into the... - Page 7 Browse Menu Flow Chart...
-
Page 8: Browsing By Album
Browsing The iPod2carGen2 OEM allows you to search for files on the iPod with its BROWSE Menu. The BROWSE menu consists of 4 categories. These categories are Artist, Album, Genre and Playlist. The Browse feature works the same as the iPod. All searches begin when you enter the Browse Menu and end with the song selection. -
Page 9: Browsing By Genre
tracks from that album will be displayed on the radio. Browsing by Genre When you choose to browse by Genre, the list of Genre’s on your iPod will be displayed on the radio. After the desired Genre has been selected, the radio will display the names of the artist from the selected Genre on your iPod. -
Page 10: Selecting The Ipod
Exit Browse menu Press the Preset # 3 button to exit the browse menu and continue playing the current song. Selecting the iPod Press the source button on the radio until the display shows Sat1, this is the source where you can control the iPod playback. Browse by Artist Press Preset #2 to enter the browse menu The word ”BROWSE”... -
Page 11: Browse By Album
Browse by Album Press Preset #2 to enter the browse menu. The word ”BROWSE” will appear on your display. You have entered the Browse menu. Press the SEEK► ◄SEEK is displayed. (“F” in front of the different albums indicates that this is the folder of albums). -
Page 12: Browse By Playlist
The list of Artists on your iPod from the desired Genre will be displayed one at a time in Alphabetical order. “AR” will be displayed in front of the artist’s name to indicate that you are searching in the artist folder. Press the SEEK►... - Page 13 Press the SEEK► ◄SEEK button to cycle through the songs in the selected Playlist. When the desired song is displayed on the radio, Press preset #2 to select and play the desired song. A satellite channel number will be displayed, this number represents the number of the song in that playlist.
-
Page 14: Troubleshooting
3.3 Trouble Shooting Symptom no Power no Power iPod does not display the brand of the radio. You can hear music from the iPod but you cant con- trol it from the radio. The radio is not recognizing iPod2car interface Can not change selection in a folder iPod is not charging... -
Page 15: Warranty
3.4 Warranty One Year Limited Warranty The quality controls used in the manufacture of this product will ensure your satisfaction. This warranty applies only to the original purchaser of this product from an authorized Peripheral Elecronics dealer. this warranty covers any supplied or manufactured parts of this product that, upon inspec- tion by Peripheral Electronics authorized personnel, is found to have failed in normal use due to defects in material or workmanship. - Page 16 Peripheral Electronics®, a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 866-788-4237 in the US or 727-572-9255 ext.265 for international calls support@peripheralelectronics.com ©2006 AAMP of Florida, Inc.
