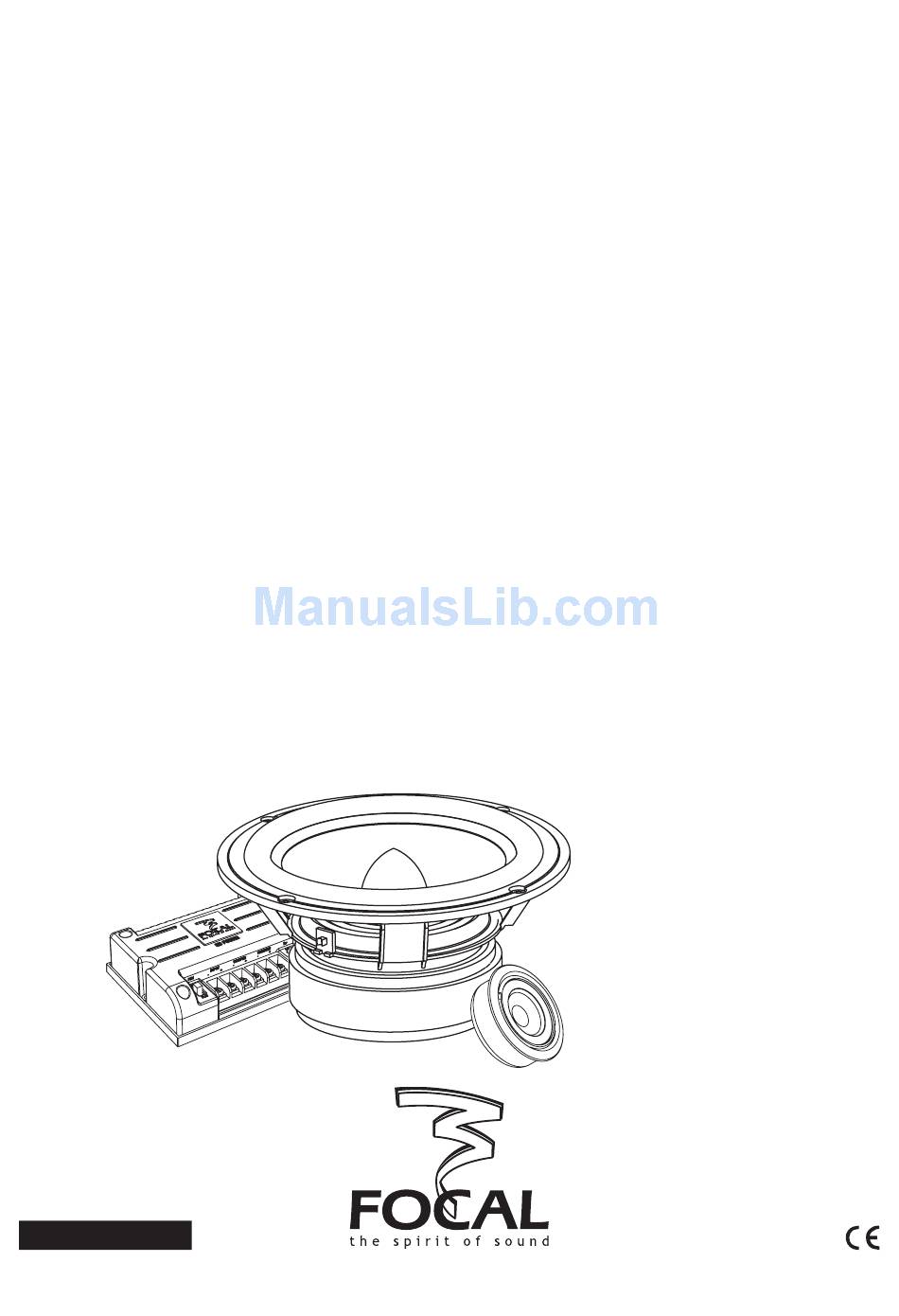

K2 Power User Manual
Congratulations on purchasing a
product from the range, K2 Power.
We are happy you share our
passion, for the "the Spirit of
Sound". Designed using the latest
technology, these speakers con-
tinue Focals perfectionist beliefs,
developing products with high
power handling, and unrivalled
sound
quality.
To
best results from this product,
we recommend that you follow
carefully
all
the
contained in this user's manual.
If not followed correctly any fault
observed, may not be covered by
the guarantee.
Warning
Continued listening at high volume
levels above 110dB, are damage your
hearing durably
Listening above 130dB can damage
your hearing permently.
The Focal-JMlab guarantee
only applies if the enclosed
guarantee card is returned to
us within 10 days of purchase.
Français page 9
Focal- JMlab
- BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France - www.focal-fr.com
®
Due to constant technological advances, Focal reserves its right to modify specifications without notice. Images may not conform exactly to specific product.
Information
We make different measure types
on baffle plan of our speakers and
crossovers in order to guarantee the
best settings according to the placing
of your loudspeakers (fig. A). For a
use on a display shelf, we recommend
the crossover settings as follow:
tweeter level at 0dB, woofer in Flat
obtain
the
mode and filtering slope at 18dB/oct.
for the kits that have this function (fig.
B). For any installation in your vehicle,
information
please refer to the remainder of the
user manual.
Tel. (+33) 04 77 43 57 00 - Fax (+33) 04 77 43 57 04
Features
Membrane K2 Power:
CMKV sandwich composite, including
(Kevlar, foam, and structural glass
fibre). Three individual materials,
each with their own advantages,
allow the cone to be extremely rigid,
with continued low mass value, and
increased damping characteristics,
even when played loud. This ensures
improved
power
handling,
detailed sound quality, low distortion
even at high volume levels.
Chassis made from Zamak:
Inherently rigid and non magnetic.
Voice coil wound on Kapton former:
Light-weight
and
highly
material ensures no deformation of
voice coil.
Butyl moulded rubber surround
suspension:
Long life characteristics, even in the
most extreme climates.
TNK with inverted tweeter dome:
Inverted dome formed from kevlar
material. Producing detailed high
frequencies, acoustically rich and
dynamic.
Crossover of high precision:
Precise level adjustment of tweeter
and
medium
available.
quality
audiophile
used throughout. Large wire gauge
connections included.
with
durable
High
components

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K2 POWER 100 KRS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Focal K2 POWER 100 KRS

  • Page 1 - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France - www.focal-fr.com ® Tel. (+33) 04 77 43 57 00 - Fax (+33) 04 77 43 57 04 Due to constant technological advances, Focal reserves its right to modify specifications without notice. Images may not conform exactly to specific product.
  • Page 3: Installation And Positioning

    Installation and positioning Tweeter Woofer-midrange Tweeter installation The TNK tweeter has been designed K2 Power woofer-midranges, posi- Surface-mount for flush mount or surface mount tioned ideally high in the doors The flush-mounting fixing kit supplied positioning, using the two fixing kits (fig.
  • Page 4 Installation and positioning Woofer and woofer-midrange Woofer woofer-midrange 2-Way kits connecting up, simple recommendations installation, simple steps (with grille) steps K2 Power woofers and woofer- Either cut the required hole or use the Connect the output from the amplifier midranges have been designed for correct hole of choice.
  • Page 5 réglage médium...
  • Page 6 Power products can be fully appreciated. Your Focal-JMlab product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime.Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment.
  • Page 7: Specifications

    Specifications Kit 100 KRS 130 KR 165 KR 165 KR2 Maximum power 100W 140W 160W 160W Nominal power Sensitivity 90dB 90dB 91dB 93dB Frequency response 120 to 70 to 60 to 70 to 20 000Hz 20 000Hz 20 000Hz 20 000Hz Crossover 3.5kHz to 3.5kHz to...
  • Page 9 - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France - www.focal-fr.com ® Tél. (+33) 04 77 43 57 00 - Fax (+33) 04 77 37 65 87 Dans un but d'évolution, Focal-JMlab se réserve le droit de modifier les spécifications techniques de ses produits sans préavis. Images non contractuelles. ©Focal-JMlab...
  • Page 11 Implantation et montage Placement tweeter Placement woofer / médium Montage tweeter Le tweeter TNK est conçu pour être Les haut-parleurs K2 Power pourront Montage en surface monté en surface ou encastré en être placés en haut des portières Le kit de fixation pour le montage en affleurement, grâce aux deux kits pour une perception optimale des surface du TNK offre deux pans pour...
  • Page 12 Implantation et montage Installation woofer et médium Montage woofer et médium Câblage kits 2 voies (100 KRS, 130 Recommandations importantes : Placer si nécessaire les 4 pattes de KR, 165 KR, 165 KR2) Les hauts-parleurs de la ligne K2 Power fixations de vis fournies.
  • Page 13 réglage médium...
  • Page 14: Réglages Fins

    Votre produit Focal-JMlab a été conçu et fabriqué avec des matériaux et composants de haute qualité, susceptibles d’être recyclés et réutilisés. Ce symbole signifie que les appareils électriques et électroniques, lorsqu’ils sont arrivés en fin de vie, doivent être éliminés séparément des ordures ménagères.
  • Page 15: Caractéristiques

    Caractéristiques Kit 100 KRS 130 KR 165 KR 165 KR2 Puissance maximale 100 W 140 W 160 W 160 W Puissance nominale 50 W 70 W 80 W 80 W Sensibilité 90 dB 90 dB 91 dB 93 dB Réponse en fréquence 120 à...
  • Page 16 Notes Date Comment / Commentaire...
  • Page 17 Su producto Focal-JMlab ha sido concebido y fabricado con materiales y componentes de alta calidad, que pueden ser reciclados y reutilizados. Este símbolo signifi ca que los aparatos eléctricos y electrónicos, al final de su vida útil, deberán ser separados de los residuos domésticos y reciclados.
  • Page 18 Produkt Focal-JMlab został zaprojektowany i wykonany z materiałów i elementów wysokiej jakości, nadających się do recyklingu i ponownego wykorzystania. Symbol ten oznacza, że sprzęt elektryczny i elektroniczny należy utylizować po zakończeniu użytkowania odrębnie od odpadów domowych. Sprzęt należy utylizować w komunalnym punkcie zbiórki lub w punkcie recyklingu. Pomóżcie i Wy chronić...
  • Page 19: Garantie France

    Système multimédia : DVD : Amplificateur : Chargeur CD : Autres éléments : Votre choix pour l’achat de ce modèle Focal s’est fait en fonction de : Conseil du revendeur Conseil d’amis, relation Visite d’exposition, salon Article de presse Ecoute en auditorium Possède déjà...
  • Page 20: International Guarantee

    International Guarantee The Focal guarantee only applies if this page is returned to us within 10 days of purchase, to the following address: Focal-JMlab BP 374 108, rue de l’Avenir 42353 La Talaudière cedex - FRANCE Model: Serial number: Name of dealer:...
