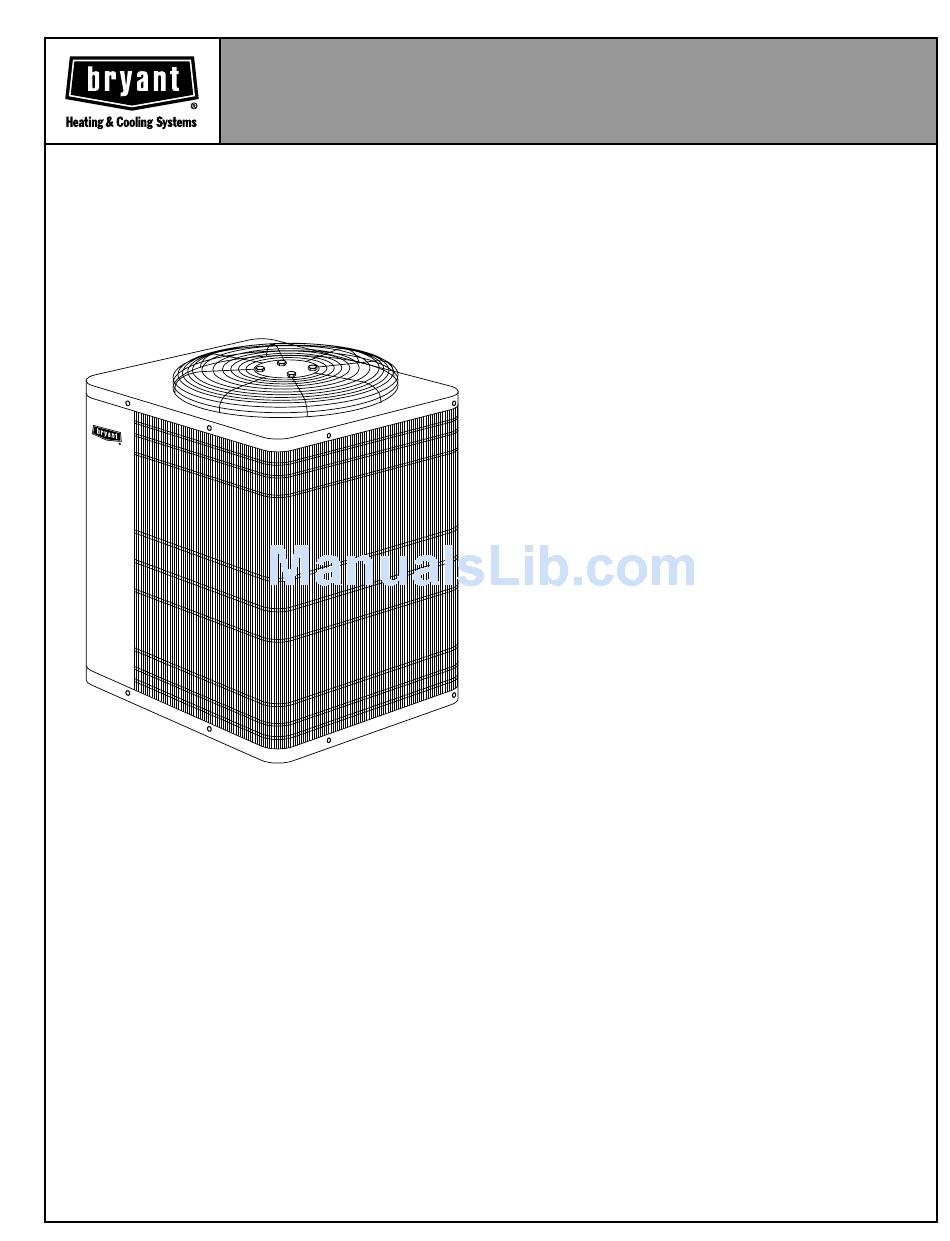

ELECTRIC
AIR CONDITIONER
Model 594D Energy-Efficient Air Conditioners incorporate inno-
vative technology to provide quiet, reliable summer cooling per-
formance. Built into these units are the features most desired by
homeowners today, including SEER ratings of up to 12.0 when
used with components as designated by manufacturer. All mod-
els are listed with UL (U.S. and Canada), ARI, and CEC.
AVAILABLE OPTIONS
ELECTRICAL RANGE —All units are offered in 208/230-volts,
single phase.
HEAVY DUTY INLET GRILLE —The DuraGuard™ coil pro-
tector, made of a coated steel wire grid with vertical 3/8 in.
spacing, is designed to help protect the coil from inclement
weather, vandalism, and incidental damage. It provides pro-
tection while not restricting airflow and maintaining ease of
coil inspection and cleaning.
Model 594D (60 Hz)
WIDE RANGE OF SIZES —Available in 7 nominal sizes from 018
through 060 to meet the needs for residential and light commercial
applications.
WEATHER-PROTECTIVE CABINET —Steel is galvanized, then
coated with a layer of zinc phosphate to which a coat of modified
polyester powder coating is applied and baked on. This provides
each unit with a hard, smooth finish that will last for many years.
All screws on cabinet exterior are ceramic coated for a long-last-
ing, rust-resistant, quality appearance.
TOTALLY ENCLOSED FAN MOTOR —Means greater reliability
under rain conditions and dependable performance for many
years. The permanent-split capacitor type motor was designed for
optimum efficiency. Then, under extreme conditions, the motor
was tested and qualified to help ensure the greatest reliability.
UNIT DESIGN —Copper tube, enhanced aluminum fin coil is
designed for optimum heat transfer. Vertical air discharge carries
sound and hot condenser air up and away from adjacent patio
areas and foliage. Heat pump style base pan for easy removal of
water, dirt, and leaves.
APPLICATION VERSATILITY —The 594D can be combined
with a wide variety of evaporator coils and blower packages to
provide quiet, dependable comfort. Unit can be installed on a
roof or at ground level on a slab.
EXTERNAL SERVICE VALVES —Both service valves are brass,
back seating type with sweat connections. Valves are externally
located so refrigerant tube connections can be made quickly and
easily. Each valve has a service port for ease of checking oper-
ating refrigerant pressures.
EASY SERVICEABILITY —One panel provides access to elec-
trical controls and compressor. Removal of wire dome grille
gives access to fan motor, while removal of top gives access to
coil.
COMPRESSOR PROTECTION —Each model is protected with
internal temperature- and current-sensitive overloads. An inter-
nal pressure relief valve provides high-pressure protection to the
refrigerant system.
BRYANT'S AEROQUIET SYSTEM —Extremely low operating
sound is the result of special attention to the air moving through
the outdoor unit, and a specially designed sound enclosure sur-
rounding the compressor to eliminate sound transmission to the
rest of the systems.
SCROLL COMPRESSOR —All units feature the scroll compres-
sor. This compressor is significantly more efficient than conven-
tional compressors. Due to the simplicity of its design, it offers
improved reliability. Each compressor is mounted on rubber iso-
lators for additional sound reduction. Continuous operation is
approved down to 55°F (12.8°C) in the cooling mode. (See cool-
ing performance tables.)
LIMITED WARRANTY —Standard 5-year warranty on all parts,
with an additional 10-year warranty on the compressor.
Sizes 018 thru 060
Form No. PDS 594D.18.8
