Summary of Contents for BSS Audio Soundweb SW9026
-

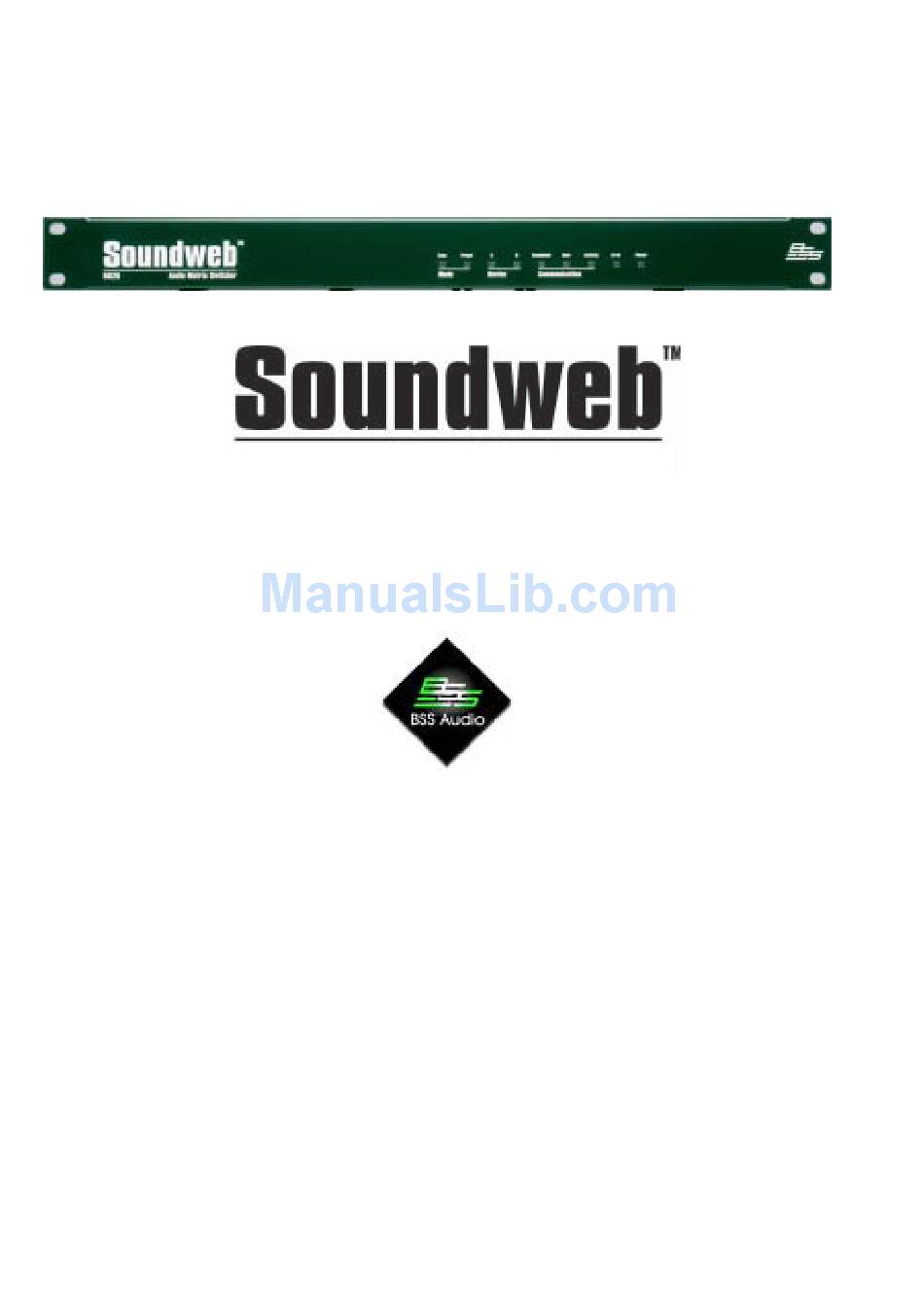

Page 1: Installation Guide
Installation Guide SW9026 Audio Matrix Switcher... -
Page 2: This Equipment Must Be Earthed
IT SHOULD NOT BE NECESSARY TO REMOVE ANY PROTECTIVE EARTH OR SIGNAL CABLE SHIELD CONNECTIONS TO PREVENT GROUND LOOPS. ANY SUCH DISCONNECTIONS ARE OUTSIDE THE RECOMMENDED PRACTICE OF BSS AUDIO AND WILL RENDER THE EMC OR SAFETY CERTIFICATION VOID. For continued compliance with international EMC regulations, it is important that all cables be screened, and connected as follows: •... -
Page 3: Mechanical Installation
Soundweb 9026 Installation Guide Mechanical Installation If the unit is likely to undergo extreme vibration through extensive road trucking and touring, it must be supported at the rear and/or sides to lessen the stress on the front mounting flange. Use either a ready-built rack tray or mount the 9026 unit between other units. -
Page 4: Rear Panel Details
Soundweb 9026 Installation Guide Rear Panel Details The 9026 audio and control connections are via Klippon (also known as BL, Phoenix or Combicon) pluggable terminal block connectors. 12 x 6-way female Klippon connectors are supplied for making these connections. For audio cables and looms, see the Product Overview 2000 catalogue from: Direct Cable Systems Ltd. - Page 5 Soundweb 9026 Installation Guide RS-232 The RS232 port is for connecting the unit directly to a PC, or the rear port of a Soundweb 9088ii, 9000, 9000ii or 9008 device. Soundweb devices can be connected to two 9026 units as follows: Soundweb 9088ii, 9008, 9000 or 9000ii Rear Serial Port RS-232 In...
- Page 6 Soundweb 9026 Installation Guide RS-232 Port Connection Information 1-DCD 6-DSR 2-RX 7-RTS 3-TX 5-GROUND 9-N/C 4-DTR...
-
Page 7: Control Inputs
Soundweb 9026 Installation Guide Control Inputs The control ports are designed to be used with a 9012 wall panel or simple switches and faders or potentiometers. There are four sets of ports, or “zones”, marked Z1 - Z4. The control port facilities are used in conjunction with the PC setup software; see its online help for more details, and for electrical specifications of the 9012 and it’s resistor values, see Soundweb Designer’s online help (under “control inputs and logic outputs”). -
Page 8: Technical Specifications
(45mm x 445mm x 168mm) Weight 2.3kg (5lbs) unpacked BSS Audio have a policy of continued product improvement and accordingly reserve the right to change features and specifications without prior notice. BSS Audio A Division of Harman International Industries Ltd Cranborne House, Cranborne Road, Potters Bar, Herts EN6 3JN England Tel +44 (0)1707 660667 Fax +44 (0)1707 660755 http://www.bss.co.uk...
