Bradford White EverHot
Ambler, PA 19002
Tech. Service (800) 334-3393
Service Part (800) 538-2020
Warranty Service (800) 531-2111

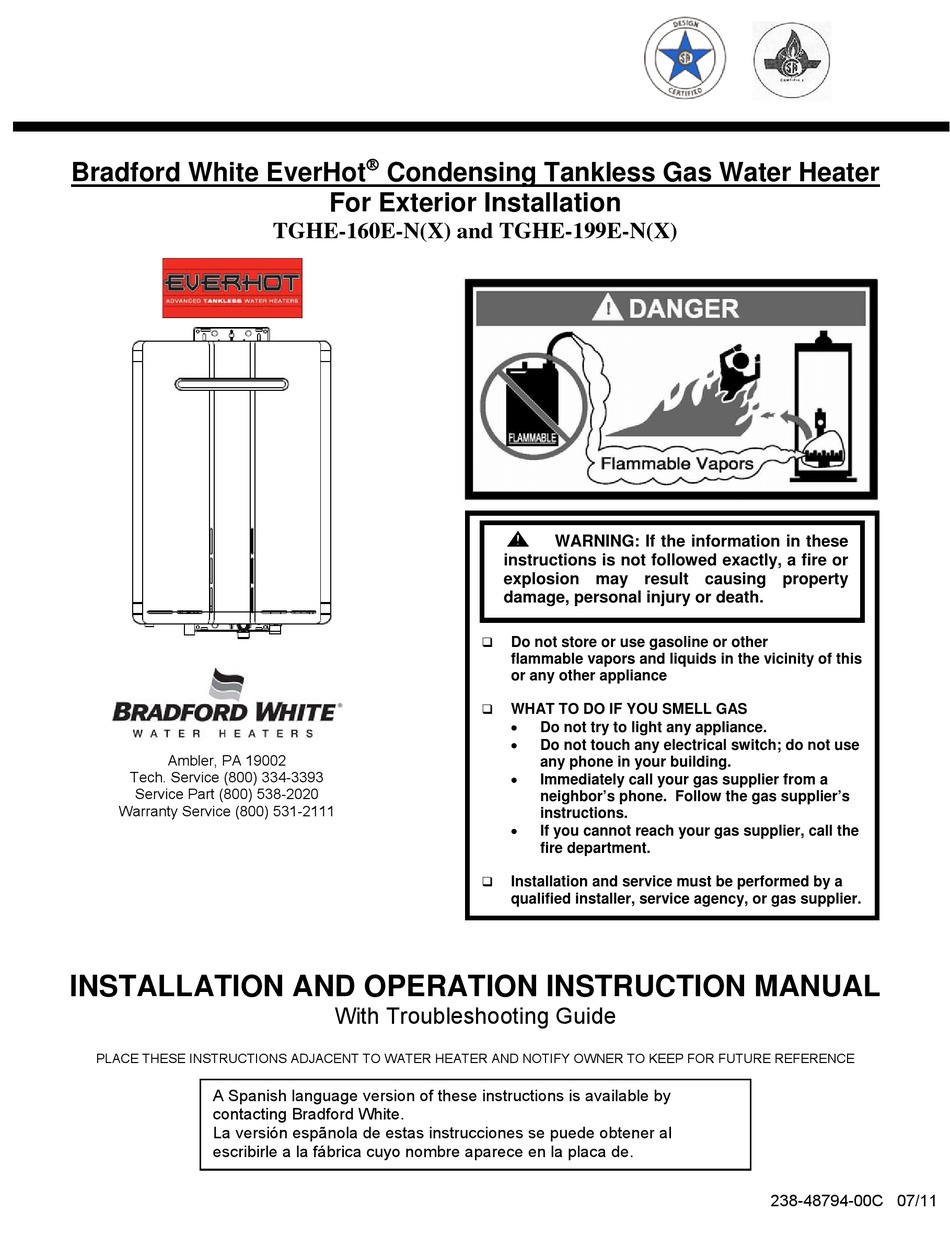

INSTALLATION AND OPERATION INSTRUCTION MANUAL
PLACE THESE INSTRUCTIONS ADJACENT TO WATER HEATER AND NOTIFY OWNER TO KEEP FOR FUTURE REFERENCE
A Spanish language version of these instructions is available by
contacting Bradford White.
La versión espãnola de estas instrucciones se puede obtener al
escribirle a la fábrica cuyo nombre aparece en la placa de.
Condensing Tankless Gas Water Heater
For Exterior Installation
TGHE-160E-N(X) and TGHE-199E-N(X)
With Troubleshooting Guide
WARNING: If the information in these
instructions is not followed exactly, a fire or
explosion may result causing property
damage, personal injury or death.
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this
or any other appliance
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use
any phone in your building.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency, or gas supplier.
238-48794-00C 07/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EverHot TGHE-160E-NX and is the answer not in the manual?

Questions and answers

Summary of Contents for Bradford White EverHot TGHE-160E-NX

  • Page 1  Bradford White EverHot Condensing Tankless Gas Water Heater For Exterior Installation TGHE-160E-N(X) and TGHE-199E-N(X) WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.  Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance...
  • Page 2: Table Of Contents

    SECTION I: IMPORTANT INFORMATION READ CAREFULLY This gas-fired water heater is design certified by CSA International under the American National Standard, Z21.10.3 (as indicated on the rating plate) and CAN/CGA 4.3-M (as indicated on the rating plate) available from CSA Standards Association, 5060 Spectrum Way, Mississauga, Ontario, Canada L4W 5N6.
  • Page 3 DANGER DO NOT store or use gasoline or other flammable, combustible, or corrosive vapors and/or liquids in the vicinity of this or any other appliance. This water heater is for outdoor installation only. Do not install indoors. This water heater is equipped with an adjustable thermostat to control water temperature. Hot water temperatures required for automatic dishwasher and laundry use can cause scald burns resulting in serious personal injury and/or death.
  • Page 4 WARNING DO NOT tamper with or alter the water heater and/or controls. DO NOT operate water heater with jumpered or absent controls or safety devices. DO NOT operate water heater if any external part has been under water. Immediately call a qualified service technician to inspect the water heater and to replace any part of the control system including gas controls, which has been under water.
  • Page 5 WARNING Liquefied petroleum gases/propane gas is heavier than air and will remain at floor level if there is a leak. Basements, crawl spaces, closets and areas below ground level will serve as pockets for accumulation of leaking gas. Before lighting, smell all around the appliance area for gas.
  • Page 6: Specifications

    SECTION II: SPECIFICATIONS Table 1. Specifications Model TGHE-160E-N(X) TGHE-199E-N(X) Minimum Rate Btu/h 9,500 (Natural) / 10,300 (Propane) Maximum Rate Btu/h 157,000 199,000 Flow Rate (Min-Max) * 0.4-8.0 GPM (1.5-30 L/min) 0.4-9.8 GPM (1.5-37 L/min) Flow Rate (45°F rise) 6.6 GPM (25 L/min) 8.5 GPM (32 L/min) Default Temperature Setting 104°F (40°C)
  • Page 7 Dimensions TGHE-160E-N(X), TGHE-199E-N(X) Table 2. Water Heater Dimensions. TGHE-160E-N(X) TGHE-199E-N(X) DESCRIPTION In. (mm) in. (mm) Width 18 ½ (470) 18 ½ (470) Depth 10 5/8 (271.9) 10 5/8 (271.9) Height - Unit 26 3/8 (670) 26 3/8 (670) Height - with brackets 28 3/8 (721.6) 28 3/8 (721.6) Hot Water Outlet - from wall...
  • Page 8 TGHE-199E-N(X) TGHE-160E-N(X) Figure 1. Graph Showing Pressure Drop v. Water Flow Rate. TGHE-199E-N(X) TGHE-160E-N(X) Temperature Rise (°F) Figure 2. Graph Showing Water Flow Rate v. Temperature Rise.
  • Page 9: Installation Instructions

    SECTION III: INSTALLATION INSTRUCTIONS WARNING INSTALLATION OF THIS WATER HEATER REQUIRES ABILITY EQUIVALENT TO THAT OF A LICENSED PLUMBER. Plumbing, air supply, venting, gas supply and electrical work are required. DO NOT ATTEMPT TO LIGHT ANY GAS APPLIANCE IF YOU ARE NOT CERTAIN OF THE FOLLOWING: ...
  • Page 10 WARNING  Residential use water heaters are suitable for potable water heating only. DO NOT use a residential use water heater for space heating or combination space heating/domestic water WARNING heating. Commercial use water heaters may be used for space heating or combination space heating/domestic water heating.
  • Page 11 MOUNT WATER HEATER ON THE WALL This water heater must be installed outdoors. Refer to Table 3 clearances under overhangs, windows, doors, etc. Also, avoid locations where there is heavy water run-off from roofs. Determine the proper height and location for the water heater to be installed. Consider the water and gas connections. Allow enough room for servicing the water heater and maintain the clearances from combustible materials.
  • Page 12 State Regulations NOTICE BEFORE INSTALLATION Bradford White direct-vent appliance must be installed by a state qualified or licensed contractor. If you are not properly trained, you must not install this unit. IMPORTANT: In the State of Massachusetts (248CMR 4.00 & 5.00) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above...
  • Page 13 VENT TERMINAL AIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED Figure 3. Installation Clearances.
  • Page 14 Table 4. Installation Clearances. Canadian Description Installations Installations Clearance above grade, veranda, 12 inches 12 inches porch, deck, or balcony (30 cm) (30 cm) Clearance to window or door that 36 inches 12 inches may be opened (91 cm) (30 cm) Clearance to permanently closed window Vertical clearance to ventilated...
  • Page 15 Local codes supersede these clearances.  Avoid termination locations near a dryer vent.  Avoid termination locations near commercial cooking exhausts. (0.91 m) to ventilated or unventilated soffit or eve 36" vent or to a deck or porch 12" (0.30 m) to an inside 2"...
  • Page 16 High Altitude Installations The default setting for the water is 0-2,000 ft (0-610 m) with dip switch numbers 2 and 3 in the OFF position. If this water heater is installed at a higher altitude, it is necessary to modify the dip switch settings according to Table 5.
  • Page 17: Water Connections

    SECTION IV: WATER CONNECTIONS WARNING Failure to install and maintain a new, listed pressure relief valve will release the manufacturer from any claim, which might result from excessive temperature and pressures. Keep clear of the pressure relief valve discharge line outlet. The discharge may be hot enough to cause scald injury.
  • Page 18 potable water. Unions should be installed on both the hot and cold water lines for future servicing and disconnection of the water heater. Install a shut-off valve in the cold water supply line. 2. In order to service the water heater in the event the heat exchanger needs to be flushed of mineral deposits, tee fittings with shut-off valves and service connections to hoses should be installed.
  • Page 19 Figure 5. Scald Warning. Table 7. Approximate scald time/temperatures. APPROXIMATE TIME/TEMPERATURE RELATIONSHIPS IN SCALDS 120°F (49C) More than 5 minutes 1½ to 2 minutes 125°F (52C) 130°F (54C) About 30 seconds About 10 seconds 135°F (57C) 140°F (60C) Less than 5 seconds Less than 3 seconds 145°F (63C) 150°F (66C)
  • Page 20 Figure 6. Recommended Piping for a Basic Installation.
  • Page 21 Pump to be of bronze or stainless construction Figure 7. Recommended Piping for a Circulation Systems.
  • Page 22 Recommended Piping for Power Failure Freeze Protection  As long as electrical power and gas are supplied to the EverHot water heater, freeze protection is provided to the heat exchanger and piping inside the water heater with ambient temperatures as cold as -4F (-20C), when protected from direct wind exposure.
  • Page 23 PRESSURE RELIEF VALVE WARNING Keep clear of the pressure relief valve discharge line outlet. The discharge may be hot enough to cause scald injury. The water is under pressure and may splash. For protection against excessive pressure, install pressure protective equipment required by local codes, but not less than a pressure relief valve certified by a nationally recognized testing laboratory that maintains periodic inspection of production of listed equipment or materials as meeting the requirements of the Standard for Relief Valves and Automatic Gas...
  • Page 24 Combination Water and Space Heating Applications – Commercial Use Water Heaters Only Commercial use water heaters may be used for space heating or combination space heating/potable water heating applications, provided the following requirements and recommended piping diagrams are carefully followed. WARNING The following instructions must be carefully followed to assure safe and reliable operation of the water heater.
  • Page 25 Note: in Massachusetts, the following must be done:  Tempered potable water must meet temperatures in 248 CMR.   All water piping must be insulated in accordance with 780 CMR (Massachusetts energy code).   50 feet maximum distance from water heater to space heating load (developed length).   Piping loop between water heater and heating load must be in compliance with 248 CMR.   All circulators must use an electronically controlled timer that activates every 6 hours for 60 seconds.  Figure 9. Recommended Piping for Combination Water and Space Heating Applications.
  • Page 26: Gas Connections

    SECTION V: GAS CONNECTIONS WARNING Connect this water heater only to the type of gas as shown on the rating plate. Use clean black iron pipe or equivalent material approved by local codes and ordinances. Dirt and scale from the pipe can enter the gas valve and cause it to malfunction.
  • Page 27 ® Check the type of gas and the gas inlet pressure before connecting the EverHot water heater to the gas supply. If the gas supply type does not match the type shown on the water heater rating plate, then DO NOT connect the water heater.
  • Page 28 INITIAL OPERATION AND TESTING (INSTALLER ONLY) 1. Open the gas and water supply valves to the water heater. 2. Check for water and gas leaks. Use soap solution to check for gas leaks. 3. To check inlet supply pressure, remove the 1/8” NPT plug on the gas inlet supply fitting just below the bottom casing and install a barb fitting for attaching a hose to a manometer.
  • Page 29: Electrical Connections

    SECTION VI: ELECTRICAL CONNECTIONS WARNING Turn off or disconnect the electrical power supply to the water heater before servicing. Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing. All electrical wiring must be installed and grounded in accordance with local codes, or in the absence of local codes, the National Electrical Code, ANSI/NFPA 70 (latest edition) and/or CSA C22.2 Electrical Code (latest edition).
  • Page 30 TWIN THERMISTOR WATER LEVEL WATER LEVEL DETECTING ELECTRODE CIRCUIT Figure 10. Ladder Diagram. WARNING DO NOT adjust any dipswitch settings on PC board unless instructed to do so.
  • Page 31 Figure 11. Wiring Diagram for TGHE Models.
  • Page 32 TEMPERATURE CONTROLS The included temperature control allows the end user to set the hot water supply temperature and will display certain diagnostic codes of the water heater if there is a malfunction. All models have the option of up to four controllers that can be used to conveniently control water temperatures for bath and shower fixtures.
  • Page 33 WARNING Do not adjust this water heater in any residential application above 120ºF. If this water heater is used in a commercial application where temperatures in excess of 120ºF are required, use an ASSE approved mixing device. WARNING This water heater is equipped with an energy cut out device to prevent overheating. Should overheating occur or the gas supply fails to shut off, turn off the manual gas control valve to the water heater, and call a qualified service agency.
  • Page 34 In Use Indicator Temperature Display Priority Button Priority Indicator Figure 12. Remote Control and the Description of Functions on All Controls. Residential Control, p/n 239-48788-00 Commercial Control, p/n 239-48789-00 Installation of Control(s) 1. The controls may be wired in parallel only. 2.
  • Page 35 8. Remove the plastic cover from the PCB and electrical connections. 9. Thread the cable through the access hole at the base of the water heater and connect the wires to the control terminals on the right hand side of the PCB. REMOTE CONTROL CONNECTION TERMINALS REMOTE...
  • Page 36 Troubleshooting – Electrical There are a number of (live) tests that are required when fault finding this product. Extreme care should be used at all times to avoid contact with energized components inside the water heater. Only trained and qualified service technicians should attempt to repair this product. Before checking for resistance readings, disconnect the power source to the unit and isolate the item from the circuit (unplug it).
  • Page 37 Table 16. (FM) Combustion Fan Motor. Connector Wire Color Voltage Resistance Nos. Red-Black 6-45 VDC White-Black 5-10 VDC 9.2-9.4k ohms Yellow-Black 11-13 VDC 3.5-3.9k ohms Set your meter to the hertz scale. Reading across the white and black wires at terminals 2 and 4 you should read between 60 and 420 hertz.
  • Page 38 Table 21. Remote Controls. Connector Wire Color Voltage Resistance Nos. Terminals A1 10-13 VDC 1.5-3.0k ohms Frost Protection: This unit has frost protection heaters mounted at different points to protect the water the water heater from freezing. The heaters located on the hot water outlet line should have a resistance reading of 10-20 ohms through each of these heaters.
  • Page 39: Operating Instructions

    SECTION VII: OPERATING INSTRUCTIONS WARNING Water heaters are heat-producing appliances. To avoid damage or injury there must be no materials stored against the water heater or direct vent system, and proper care must be taken to avoid unnecessary contact (especially by children) with the water heater and direct vent system. UNDER NO CIRCUMSTANCES SHOULD FLAMMABLE MATERIALS, SUCH AS GASOLINE OR PAINT THINNER BE USED OR STORED IN THE VICINITY OF THIS WATER HEATER OR IN ANY LOCATION FROM WHICH FUMES COULD REACH THE WATER HEATER.
  • Page 40 LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE OPERATING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This water heater does not have a ...
  • Page 41: Temperature Adjustment

    CAUTION In climates where below freezing temperatures may occur, the water heater must be drained when power is off to the water heater to prevent freeze damage to the heat exchanger. Drain solenoids are recommended to prevent freeze damage during power failures in cold climate regions. TURNING OFF THE WATER HEATER FOR AN EXTENDED PERIOD OF TIME ...
  • Page 42 2. To set the desired temperature on the control, all hot water faucets must be closed. If there are more remote controls installed, press the “Priority” button on the control you want to change the setting on and the “Priority” indicator light will glow. 3.
  • Page 43 SCALDING Figure 17. Scalding Warning. This water heater can deliver scalding temperature water at any faucet in the system. Be careful whenever using hot water to avoid scalding injury. Certain appliances, such as dishwashers and automatic clothes washers may require increased water temperature. By setting the thermostat on this water heater to obtain the increased temperature water required by these appliances, you may create the potential for scald injury.
  • Page 44 DIAGNOSTIC CODES ON THE TEMPERATURE CONTROL DISPLAY  The Bradford White EverHot tankless water heaters have the ability to monitor and display any operating faults on the control display. The diagnostic codes will display on the monitor and will assist in servicing the water heater.
  • Page 45 Code Code Description Remedy Over Temperature Check for restrictions in air flow around unit and vent terminal. Warning Check for low water flow in a circulating system causing short-cycling. Check for foreign materials in combustion chamber and/or exhaust piping. Check for clogged heat exchanger. Condensate Trap Condensate container is full.
  • Page 46: Maintenance

    SECTION VIII: MAINTENANCE WARNING Always turn off the electrical power supply, the manual gas valve, and the manual water control valve whenever servicing this appliance. KEEP THE WATER HEATER AREA CLEAR AND FREE FROM COMBUSTIBLE MATERIALS, GASOLINE, AND OTHER FLAMMABLE VAPORS AND LIQUIDS. ...
  • Page 47 CAUTION Before manually operating the valve, make sure that a drain line has been attached to the valve to direct the discharge to an open drain. Failure to take this precaution could mean contact with extremely hot water passing out the valve during this checking operation. FLUSHING PROCEDURE FOR MINERAL SCALE REMOVAL FROM HEAT EXCHANGER The amount of calcium carbonate (minerals) released from water is in direct proportion to water temperature and usage.
  • Page 48 Eve r Hot® Rinnai Water Heater n-line Filter Gas Supply Cold Water Line Hot Water Line 5 gallon pail of virgin, food grade, white vinegar (or virgin, Circulating Pump food grade, citric acid). Figure 19. Piping for Mineral Scale Flushing.
  • Page 49 ® Common Troubleshooting Comments on the Operation of the EverHot Tankless Water Heater Comment: I don’t have any hot water when I open the tap! Make sure the gas and electricity is turned on to the water heater. The temperature display should have the green light lit when a hot water tap is open and the water heater is operating.
  • Page 50: Parts List

    SECTION IX: PARTS LIST TGHE-160E and TGHE-199E Models...
  • Page 51 TGHE-160E TGHE-199E Description Quantity Main Body Wall Bracket Rubber Bushing Connection Reinforcement Panel Heat Protection Plate Front Panel Gasket - Top and Bottom Gasket - Side Screw Cover Screw Cover Lid Cable Access Assembly Rubber Bushing Packing Screw Cover Assembly Reinforcement Bracket Attachment Bracket Screw...
  • Page 53 TGHE-160E TGHE-199E Description Quantity Burner Unit Assembly LPG Burner Unit Assembly NG Burner Case Cover Burner Packing Burner Burner Case Back Cover Damper LPG Damper NG Manifold Assembly NG Manifold Assembly LPG Manifold Packing Manifold Packing Combustion Chamber Sight Glass Plate Electrode Flame Rod Electrode Packing...
  • Page 55 TGHE-160E TGHE-199E Description Quantity Gas Controller Assembly Test Port Set Screw Gas Connection 3/4" NPT Water Inlet 3/4" NPT Water Flow Servo and Sensor Assembly Rectifier By-pass Flow Assembly Stop Bracket Hot Water Outlet 3/4" NPT Stop Bracket Plug Band (Small) Drain Valve Water Filter Assembly Cover...
  • Page 57 TGHE-160E TGHE-199E Description Quantity Connection Harness Frost Sensing Switch Anti-Frost Heater 120V Valve Heater 120V Assembly Fuse Harness Power Harness Sensor Harness Thermal Fuse Harness Assembly Ignitor Harness Temperature Controller Harness Solenoid Connection Harness AWG#18 Harness Connection Harness Heater and Harness...
  • Page 58: Warranty

    SECTION X: WARRANTY What does this Limited Warranty Cover? This limited warranty covers both the heat exchanger and component parts for leakage or other malfunction caused by defects in materials and/or workmanship. It applies to the original consumer purchaser and to any subsequent owner as long as the water heater remains installed at its original place of installation.
  • Page 59 demand recirculation is not incorporated. A system that incorporates a continuous recirculation due to timer settings, excessive heat loss of the loop or aquastat / thermostat setting will be treated as a continuous circulation system and have a reduced warranty of 3 years. On-demand recirculation is defined as a hot water re-circulating loop or system that utilizes existing hot and cold lines or a dedicated return line, and only activates when hot water is used.
  • Page 60 EverHot® Limited Warranty Registration In order to confirm Limited Warranty coverage at 12 years for Residential Applications complete the information below and click submit. *Consumers First Name: *Consumers Last Name: ____________________ ___________________ *Address: *City: ____________________ ____________________ *State: *Zip: ____________________ ____________________ *Phone Number: *Installation Date: ____________________...
  • Page 61 NOTES:...
  • Page 62 NOTES:...
  • Page 63 NOTES:...
  • Page 64 Ambler, PA For U.S. and Canada field service, Contact your professional installer or local Bradford White representative. Sales/800-523-2931 Fax/215-641-1670 Parts Fax/215-641-2180 Technical Support/800-334-3393 Fax/269-795-1089 Warranty/800-531-2111 Fax/269-795-1089 International: Telephone/215-641-9400 Telefax/215-641-9750 Mississauga, ON Sales/866-690-0961 905-238-0100 Fax/905-238-0105 Technical Support/800-334-3393 Email parts@bradfordwhite.com techserv@bradfordwhite.com www.bradfordwhite.com...
