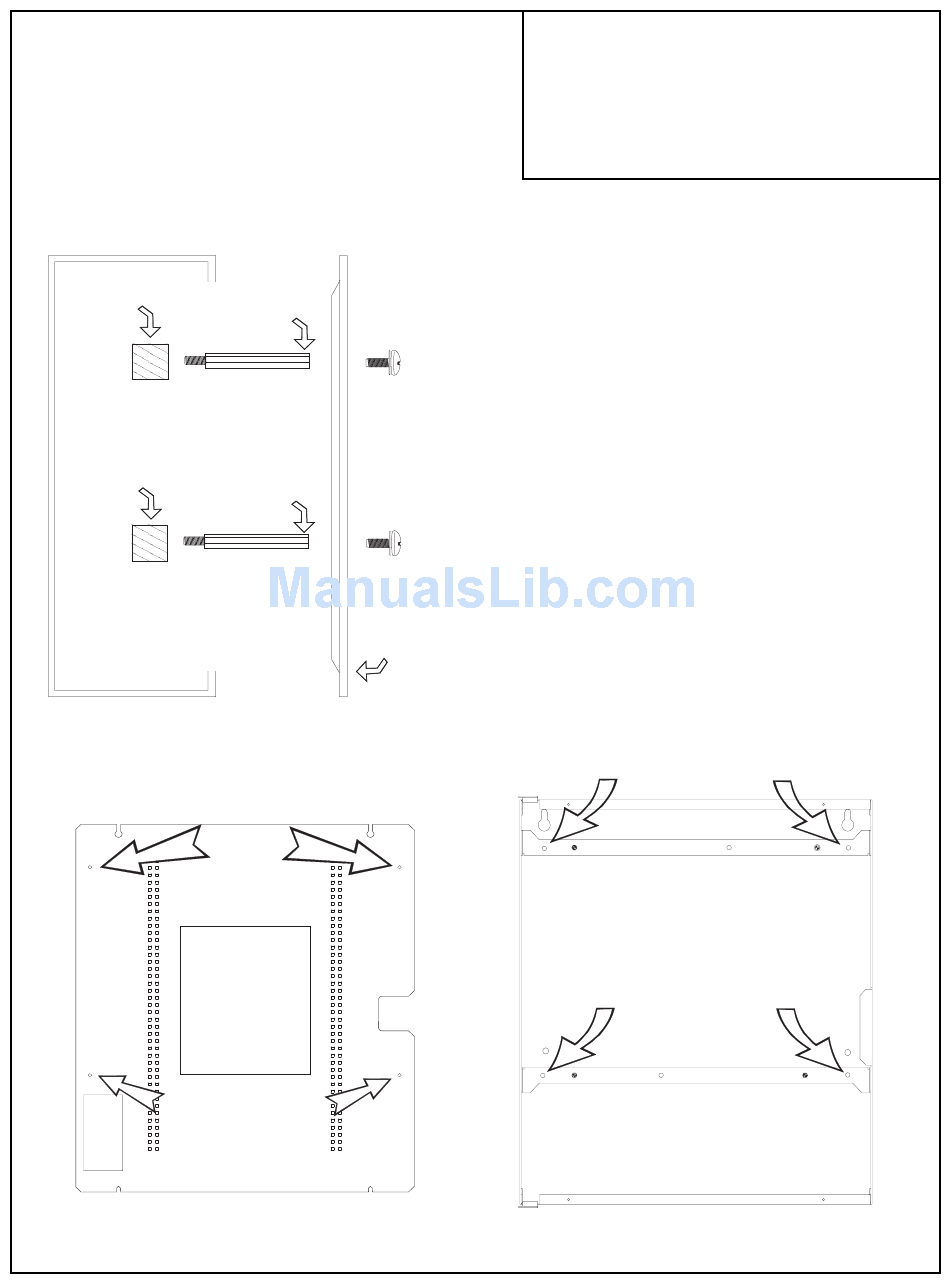

The DP-4XF Kit includes the dress panel,
four screws, and four stand-offs. To install
the DP-4XF on the 4X backbox, you must
first determine which type of backbox you
have.
Rail
Stand-off
Rail
Stand-off
Use these holes for
Type A
cabinet
Use these holes for
Type A
cabinet
DP-4XF Dress Panel
Cabinet Type A: This backbox has PEM
nuts on the rails inside the box. Screw the
four 1-15/16" standoffs into the nuts in the
rails. Then secure the dress panel with the
screws provided.
Dress Panel
DP-4XF
Product Installation Drawing
Document 15619 Rev:A 11/24/92
Type A:
PEM nuts in rail
Type A:
PEM nuts in rail
4X Backbox
P/N 15619:A ECN 92-197
Advertisement
Table of Contents
Related Manuals for Fire-Lite DP-4XF
Summary of Contents for Fire-Lite DP-4XF
- Page 1 DP-4XF The DP-4XF Kit includes the dress panel, Product Installation Drawing four screws, and four stand-offs. To install the DP-4XF on the 4X backbox, you must Document 15619 Rev:A 11/24/92 first determine which type of backbox you P/N 15619:A ECN 92-197 have.
- Page 2 Rail Cabinet Type B: This backbox has no PEM nuts in the rails but rather, has holes on the top and bottom flanges. Secure the dress panel to the backbox with the screws Dress Panel provided. NOTE: If the meter option is not to be used, Rail install the plate with the two screws pro- vided over the meter hole.
