Summary of Contents for Electrolux ER 7521 B

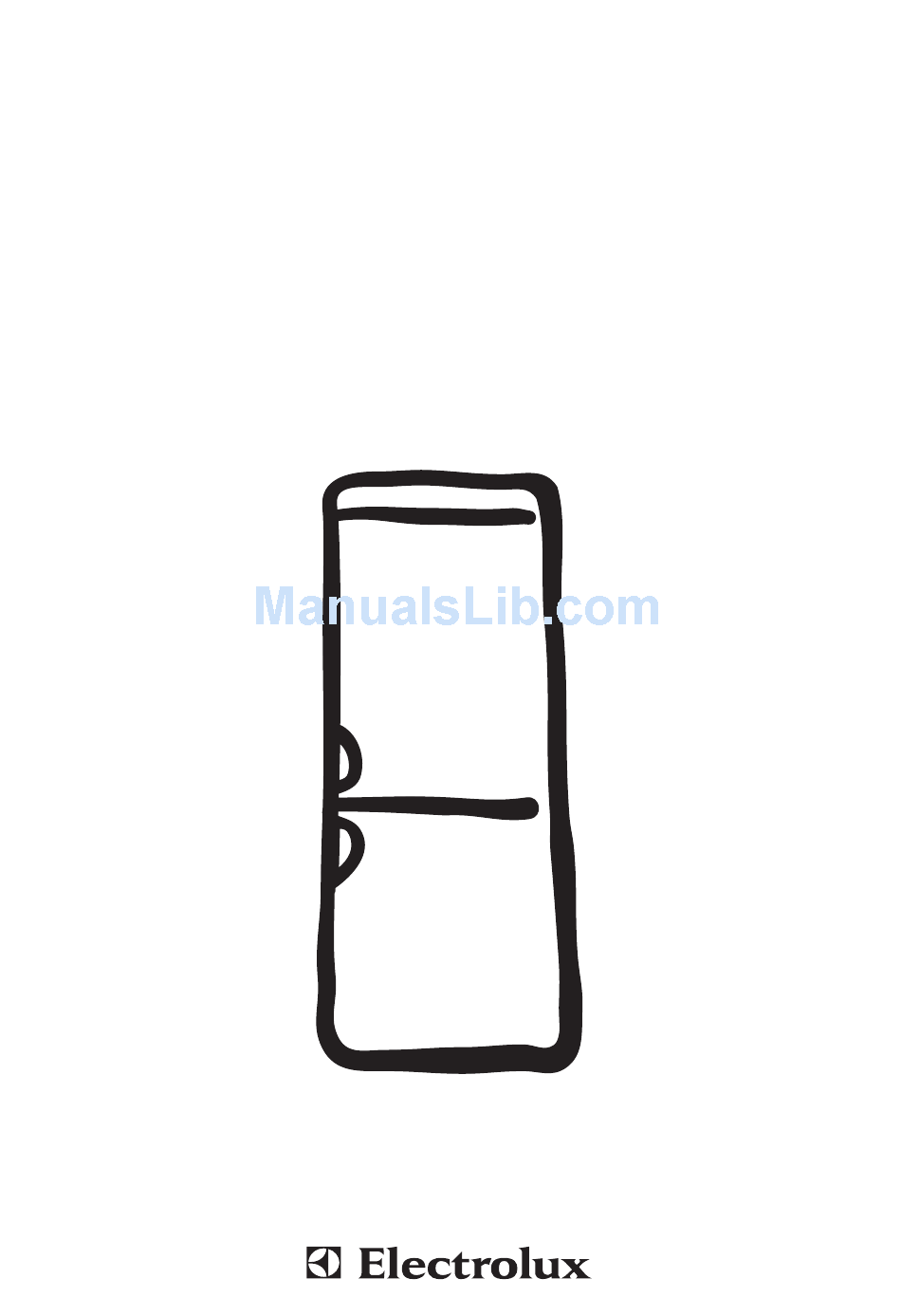

- Page 1 - f r e e z e r INSTRUCTION BOOK ER 7521 B 2222 069-92...
-
Page 2: Important Safety Information
Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local Electrolux Service Force Centre and always insist on genuine spare parts. At the end of the Appliance Life ¥... -
Page 3: Table Of Contents
CONTENTS Instructions for the User Important Safety Information Description of the Appliance Operation Before use Setting the temperature The freezer compartment Freezing fresh food Frozen food storage Thawing Making ice cubes Fresh food refrigeration Normal operating sounds Movable shelves Hints and Tips Maintenance and Cleaning Internal cleaning External cleaning... -
Page 4: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE A- Thermostat control B- Dairy compartment C- Can storage shelf D- Bottle storage shelf E- Compartment for freezing fresh food F- Compartment for storing frozen food G- Salad crispers H- Glass shelf I - Storage shelves... -
Page 5: Operation
Do not use soap or detergent as the smell may linger. Dry thoroughly. Setting the temperature The temperature inside the refrigerator is regulated by a thermostat with 6 temperature positions and an ÒOFFÓ (O) position. Position 1 = minimum coldness Position 6 = maximum coldness Turn the thermostat dial to the required position. -
Page 6: Thawing
Do not use sharp or metallic instruments to remove the trays from the freezer. Movable shelves The walls of the refrigerator have runners so that shelves can be positioned as desired. The door shelves can be easily removed for cleaning. Gently ease the shelf in the directions shown. -
Page 7: Hints And Tips
¥ Keep the time between buying chilled food and placing it in your refrigerator as short as possible. ¥ Do not push food together too much, try to allow air to circulate around each item. -
Page 8: Maintenance And Cleaning
Replace the light cover by sliding it into its original position and replacing the screw. Defrosting Refrigerator The refrigerator automatically defrosts every time the compressor stops. The water is discharged, via the pipe, into a tray located at the back of the appliance above the compressor, where it evaporates. - Page 9 Freezer When the frost has reached a thickness of up to 4mm it can be removed using the ice scraper provided with the appliance. During this operation it is not necessary to disconnect the appliance from the mains and remove the food. Never use metal tools for this operation.
-
Page 10: Something Not Working
SOMETHING NOT WORKING Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation a charge will be made, even if the appliance is under guarantee. Before contacting your local Service Force Centre, check the following points: Symptom No power to the appliance The light does not come on... -
Page 11: Service And Spare Parts
The model and serial number of the appliance (found on the rating plate) The purchase date CUSTOMER CARE DEPARTMENT For general enquiries concerning your Electrolux appliance or for further information on Electrolux products, please contact our Customer Care Department by letter or telephone as follows:- Customer Care Department... -
Page 14: Guarantee Conditions
Standard guarantee conditions We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: The appliance has been correctly installed and used only on the electricity supply stated on the rating plate. -
Page 15: Technical Specification
TECHNICAL SPECIFICATIONS DIMENSIONS POWER SUPPLY VOLTAGE AND FREQUENCY TOTAL POWER ABSORBED AVERAGE DAILY UNITS ELECTRICITY * GROSS CAPACITY NET CAPACITY This figure is based on standard test results in accordance with European Standard EN 153. Actual consumption will depend on how the appliance is used and where it is located. Height Width 54,5 cm... -
Page 16: Installation
INSTALLATION Warning IF YOU ARE DISCARDING AN OLD APPLIANCE THAT HAS A LOCK OR CATCH ON THE DOOR, YOU MUST ENSURE THAT IT IS MADE UNUSABLE TO PREVENT YOUNG CHILDREN BEING TRAPPED INSIDE. Depending upon the position which you choose for your appliance, you may wish to reverse the way in which the door opens. -
Page 17: Electrical Connection
Electrical connections Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. WARNING: THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any liability should this safety measure not be observed. If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug fitted. -
Page 18: Door Reversal
Door reversal 1. Disconnect from the electricity supply. 2. Remove all loose items, including food, store food in a cool place. 3. Gently lay the fridge/freezer on its back with the top held away from the floor by 5-8 cm (2-3 inches) of packing;... - Page 20 © Electrolux Household Appliances Limited 2001...
