Bogen Model PCMCPU
Central Processing Module for
Bogen's PCM2000 Zone Paging System
© 2001 Bogen Communications, Inc.
All rights reserved.
54-5945-01B 1010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCMCPU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bogen PCMCPU

Summary of Contents for Bogen PCMCPU

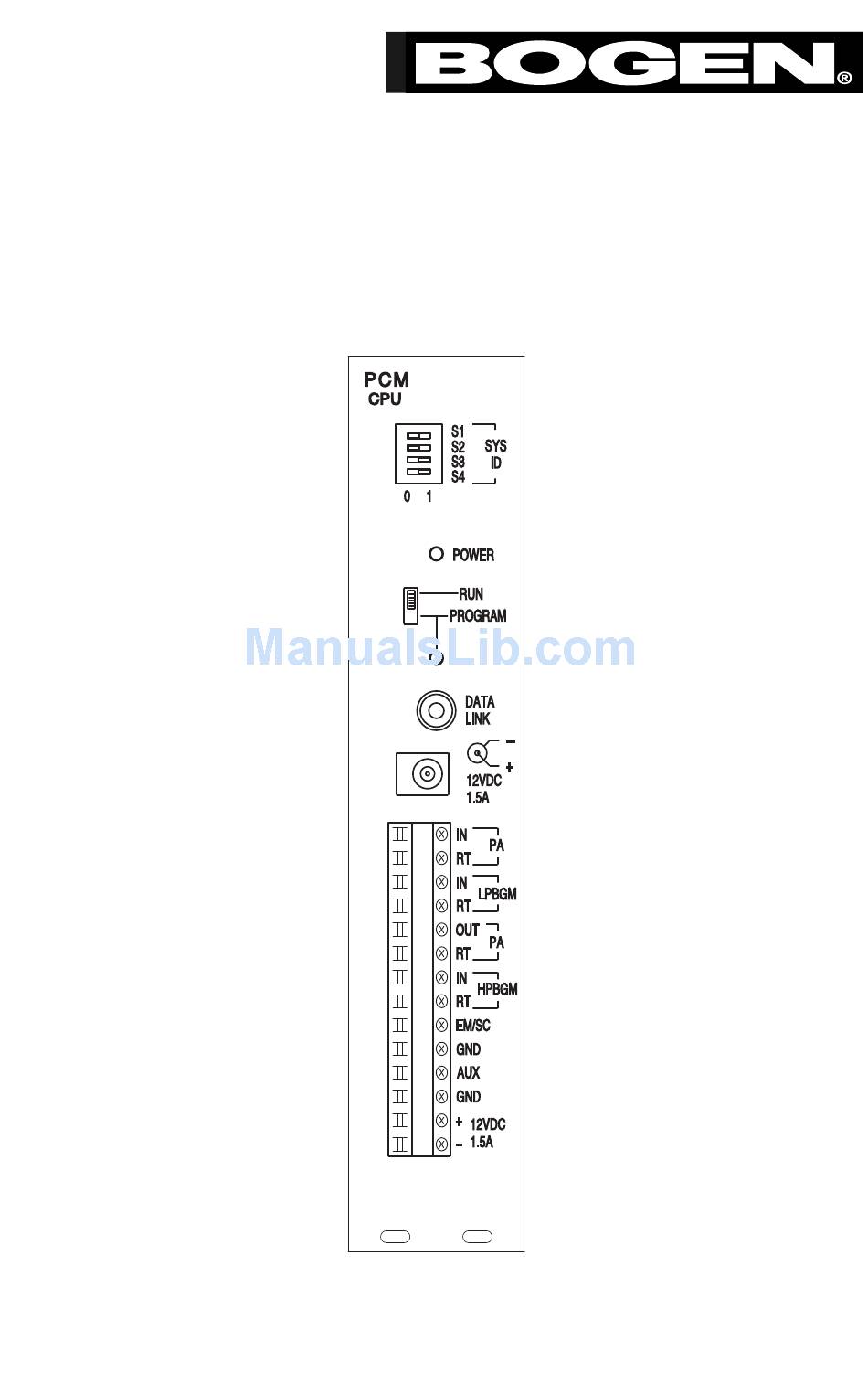

  • Page 1 Bogen Model PCMCPU Central Processing Module for Bogen's PCM2000 Zone Paging System © 2001 Bogen Communications, Inc. All rights reserved. 54-5945-01B 1010...
  • Page 2 PCMCPU FCC Required Statements WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Requirements This equipment is component registered with the Federal Communications Com- mission (FCC) in accordance with Part 68 of its rules.

  • Page 3: Table Of Contents

    PCMCPU Contents Section 1: Overview Description ......................4 PCM2000 System ..................4 Voice Channel ....................4 Background Music (BGM) ................5 Signaling ......................5 Other Features....................5 Specialized Features ..................5 Section 2: Installation Assembling Modules ..................6-7 Power......................8 System ID ......................8 Program/Run Switch ..................8 Audio Connections..................8 Low-Power BGM ....................8 High-Power BGM ....................8 Emergency/Shift Change Trigger..............8 AUX/GND Contacts ..................8...

  • Page 4: Section 1: Overview

    Section 1 Overview Description The Bogen Model PCMCPU is the microprocessor module for the Bogen PCM Zone Paging System. One module is required per assembly (up to three PCMZPM zone modules). The PCMCPU module provides power, data and audio connec- tions for the PCM system.

  • Page 5: Background Music (Bgm)

    PCMCPU Background Music (BGM) • Low-power distributed (buffered for up to 50 amplified speakers) • High-power, using dedicated BGM amplifier • High-power using a single paging/BGM amplifier • BGM disable to individual zones • Local BGM input on each individual zone module Signaling •...

  • Page 6: Section 2: Installation

    PCMCPU Section 2 Installation Assembling Modules To assemble modules together, place them side by side starting with the left most module of the assembly (for master system assembly, PCMCPU). Plug the ribbon cable connector into its header (see drawing for orientation). Then plug the 6-pin connector onto its header.
  • Page 7 PCMCPU Repeat the procedure for the rest of the modules to be included in the assembly. LOCKING LOCKING SLOT ALIGN CONNECTORS SO LOCKING RIDGE FACES HEADER WALL ALIGN . POLARIZING TAB IN SLOT LOCKING LOCKING SCREW CLAMP SLOT TAB & SLOT The figure below shows the correct sequence of modules for a maximum assembly.

  • Page 8: Power

    PCMCPU Power The PCM system requires 12V DC 1.5A. Use the PCMPS2 power supply. Plug the power supply into the POWER jack on the PCMCPU module. Power can also be connected to the 12V DC terminals on the connector block. System ID For a system with no satellites, set SYS ID DIP switches on PCMCPU module to the position shown.

  • Page 9: Section 3: System Expansion

    PCMCPU Section 3 System Expansion Concept In situations where it is necessary to extend beyond 9 zones of paging, satellite systems and a master must be used. Each satellite system is responsible for the specific group of zones as determined by the setting of its SYS ID DIP switches. The master system transmits its commands on the Data Link bus to all satellites at the same time, but only the specifically addressed satellite responds.

  • Page 10: System Id

    PCMCPU System ID Once the satellite systems have been wired together, the satellite ID numbers can be assigned. The ID for the master system (the one which has the PCMTIM module) must be set to zero (all SYS ID switches set to "0"). Although satellite systems can be numbered in any order, it is best to number them sequentially, starting with "1"...

  • Page 11: Section 4: Paging System Assemblies: Applications And Illustrations

    PCMCPU Section 4 Paging System Assemblies: Applications and Illustrations Introduction The examples and illustrations shown on the following pages are typical paging system configurations. For improved clarity, these illustrations show the modules separated from each other. In actual systems, all modules in an assembly are physically connected.

  • Page 12: One-Way Paging System With Satellites

    10 satellites. Two stranded wires can be clamped in each of the terminals to simplify wiring and eliminate wiring splices. NOTE: The Bogen PCM Configuration Guide contains more detailed information on applications. It can be downloaded at: www.bogen.com/products/pdfs/telephonepagepdfs/PCM2000c.pdf...

  • Page 13: One-Way Paging System With Satellites

    PCMCPU One-Way Paging System with Satellites...

  • Page 14: Two-Way Talkback Paging System With Satellites

    25V output of the paging amp and high-power BGM source instead of the typical 70V output. Also reducing the amount of treble from the BGM source helps reduce leakage. NOTE: The Bogen PCM Configuration Guide contains more detailed information on applications. It can be downloaded at: www.bogen.com/products/pdfs/telephonepagepdfs/PCM2000c.pdf...
  • Page 15 PCMCPU Two-Way Talkback...

  • Page 16: 3-Zone System W/ One-Way Paging & Single Amp Bgm

    IN position. Set the paging level using the amplifier's volume control and the BGM level using the BGM SRC VOLUME control on the PCMTIM. NOTE: The Bogen PCM Configuration Guide contains more detailed information on applications. It can be downloaded at:...
  • Page 17 PCMCPU 3-Zone System...

  • Page 18: 6-Zone System W/ One-Way Paging, Hi/Low Power & Local Bgm

    The centralized paging amplifier's input is connected to the PA IN & RT terminals. The amplifier's output is connected to the PA OUT & RT terminals. NOTE: The Bogen PCM Configuration Guide contains more detailed information on applications. It can be downloaded at:...
  • Page 19 PCMCPU 6-Zone System (one CPU per assembly)

  • Page 20: 9-Zone System W/ Talkback, Single Amp Bgm, Hi/Low Power Zones

    PCMZPM module's TALKBACK DIP switch for the desired zone to ON. Follow the recommendations in the PCMTBM manual to adjust talkback quality. NOTE: The Bogen PCM Configuration Guide contains more detailed information on applications. It can be downloaded at: www.bogen.com/products/pdfs/telephonepagepdfs/PCM2000c.pdf...
  • Page 21 PCMCPU 9-Zone System...
  • Page 22 Notes...
  • Page 23 Notes...
  • Page 24 HEREBY DISCLAIMED AND EXCLUDED TO THE MAXIMUM EXTENT ALLOWABLE BY LAW. Bogen's liability arising out of the manufacture, sale or supplying of products or their use or dis- position, whether based upon warranty, contract, tort or otherwise, shall be limited to the price of the product.
