Bogen CK10 Installation Manual

Cable Kit, 10-Foot
Model CK10

Description

The CK10 is a 10-foot long Cable Kit. The kit can be used either as a main suspension
drop cable or as a safety cable.

Contents

10-foot long Cable w/ fixed loop, Cable clamp, Eyebolt, Spacer Nut, Instruction Sheet

Installation

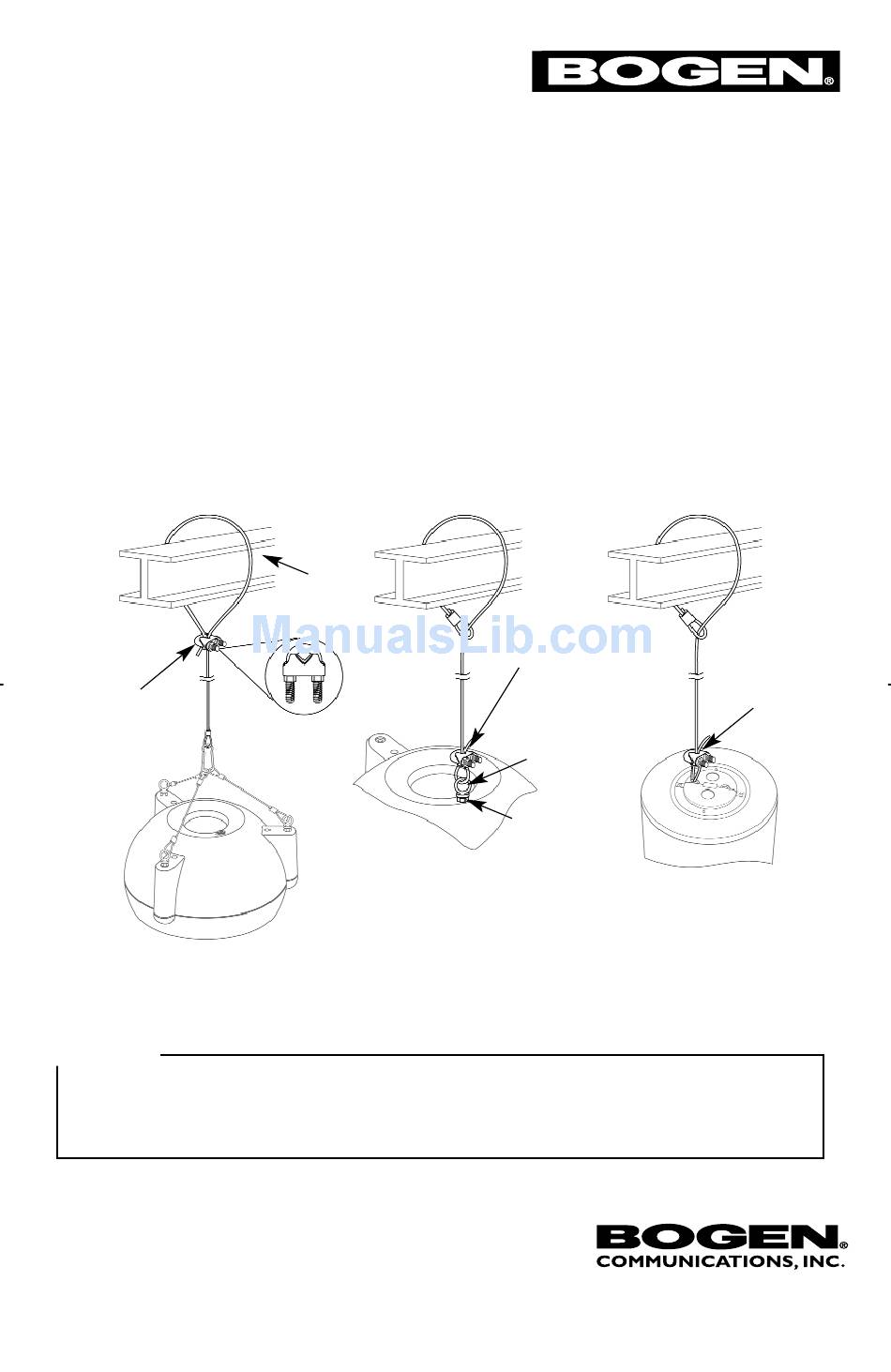

The cable can be secured to the speaker and the building structure in a variety of
ways. Below are three common approaches. The support structure MUST be able
to support 100 lbs. to provide adequate safety margin.
SEE WARNING
Pendant
Drop Cable

WARNING

CABLE CLAMPS MUST BE SECURELY TIGHTENED. FAILURE TO DO SO MAY
RESULT IN PROPERTY DAMAGE, INJURY OR DEATH, AND LEGAL LIABILITY
TO YOU AND YOUR BUSINESS.
Specifications subject to change without notice.
© 2003 Bogen Communications, Inc.
Part No. 54-2094-01B 0908
SUPPORT
STRUCTURE
Safety Cable for Pendant
(Primary Suspension Cables not shown)
Thread Spacer Nut completely on
to Eyebolt, then thread the Eyebolt
into Safety Point. Tighten securely
(but do not over-tighten).
SEE WARNING
EYEBOLT
SPACER NUT
Seismic Tether
Ceiling Speaker
