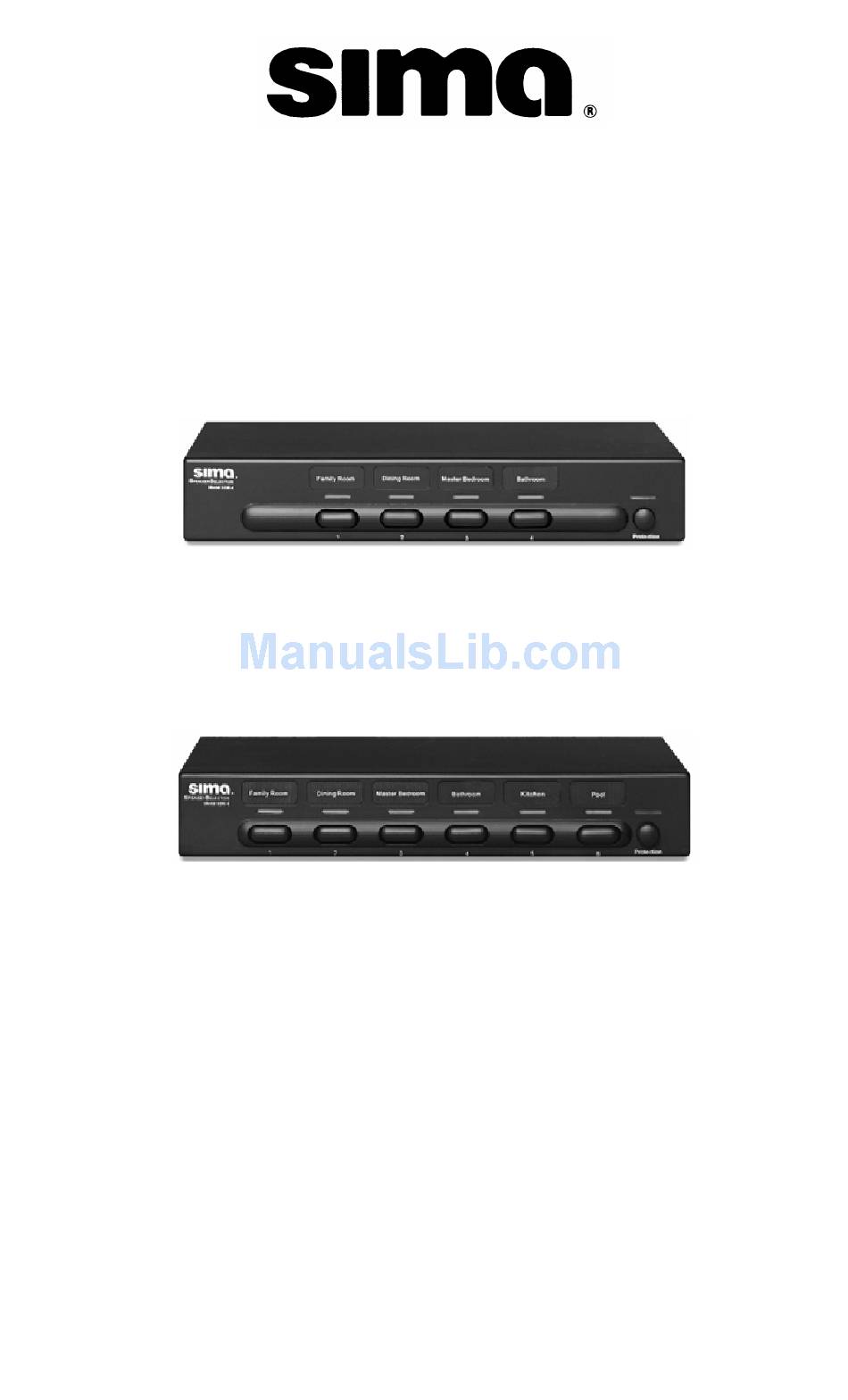

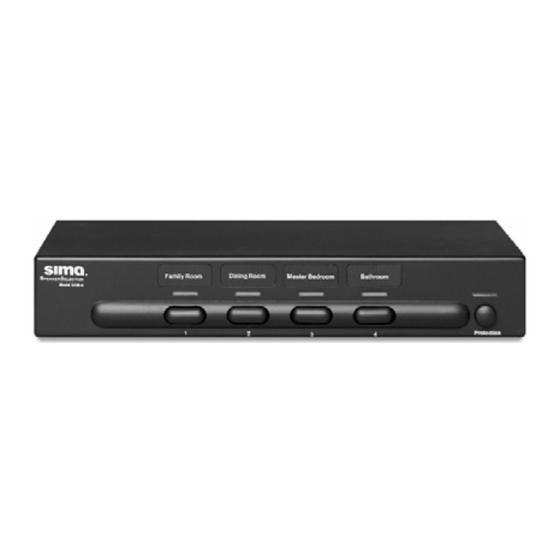

  • Page 1 Speaker Selectors Models SSW-4 and SSW-6 User Manual (SSW-4) (SSW-6)
  • Page 2: Table Of Contents

    Date Purchased: ___________, Model: ___________ ©1999 by Sima Products Corp. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without prior written permission from Sima Products Corp. Page 2...
  • Page 3: Introduction

    Introduction • Left and right “commons” are isolated The Sima speaker selectors have been designed to let you add additional to work with all types of amplifiers speakers around your home or office • Protection for amplifier and unit and turn them on and off without •...
  • Page 4: Typical Hook Up

    Typical Hook up The diagram below shows a overview of a typical system with the SSW-6 using 6 speaker pairs. Figure 3, Overview of typical system (SSW-6 shown) Installation Tips • It is recommended to use 18 or 16 AWG gauge stranded wire. For runs longer than 50’, 14 gauge is recommended.
  • Page 5: Operation

    • Push the tab and simultaneously insert the wire into the correct hole. • Verify that there are no wire frays. Connect the wires from the speaker output from your receiver or amplifier to the SSW-4/6 terminals marked AMPLIFIER. Pay attention and connect the “+” output from the right front output on the amplifier to the right “+”...
  • Page 6 Refer to your amplifier or receiver’s user manual or on the rear panel of the amplifier to determine the minimal speaker impedance that your amplifier can handle. If your amplifier can handle 4 ohm loads 4 ohm 6 ohm 8 ohm 16 ohm speakers speakers...
  • Page 7: Trouble Shooting

    Trouble Shooting Problem Solution No sound Make sure correct speaker is selected. Make sure no wires are touching each other or the case of the amplifier or SSW-4/ SSW-6 selector. One or both speakers Reduce volume level and unit will automatically turn off when music is reset.
  • Page 8: Limited Warranty

    It is recommended that you contact Sima to obtain a return authorization number. Limitation of Liability and Remedies Sima shall have no liability for any damages due to lost profits, loss of use or anticipated benefits, or other incidental, consequential, special or punitive damages arising from the use of, or the inability to use, this product, whether arising out of contract, negligence, tort or under any warranty, even if Sima has been advised of the possibility of such damages.
