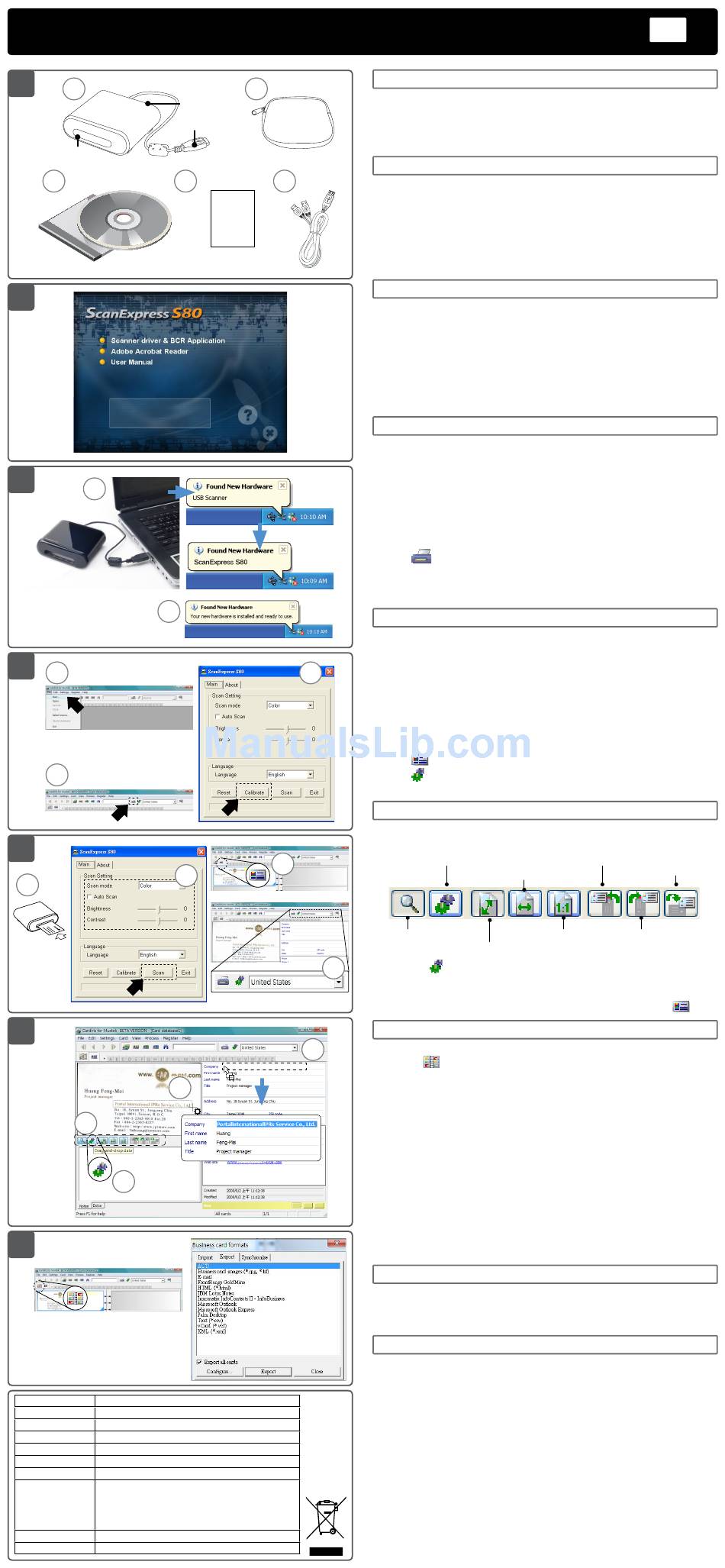

Mustek ScanExpress S80 Quick Start Manual

ScanExpress S80
1
1
A
3
2
3
1
4
3
4
5
1
6
1
2
7
Scanner Type Color CIS Sheet feed
Scan Area A8 size, 54mm (W)
Light Source LED
Interface USB 1.1
Scanning Mode Color mode, Gray Mode, Line Art
Power Consumption 0.7W (standby), 2.3W (during scan), fully USB powered
System Support Windows XP, Vista
System requirement • Pentium III 300 CPU or above
• 256MB RAM (512MB for Windows Vista / 7)
• 200MB available hard disk space Windows XP / Vista / 7
• CD-ROM Drive
• Available USB Port
Dimension 108mm x 89mm x 32mm
Weight 153g
Name Card Scanner
2
C
B
4 5
2
3
2
3

1. Package Contents

1. Name card scanner
A: Paper Feed Slot
B: USB Type A plug
C: Paper withdraw slot

2. Installing Software

1. Insert the software Installation CD into your CD or DVD-ROM drive.
2. Click on Scanner driver & BCR Application, then follow the
on screen instructions to complete the scanner driver and BCR
(Cardiris) software installation.
ATTENTION: Please complete the software installation before
connecting the scanner. Don not connect the scanner to PC at this
stage.

3. Installing Hardware

1. With the PC being turned on, connect the scanner's USB plug to the
USB port of your PC.
Note: Two pop-ups will appear at the right side of task bar after the
computer detects the new hardware being inserted.
2. The Windows Hardware Manager will detect the hardware and start
to install it. Follow on screen instructions to complete installation.
The pop-up message will appear at the right side of task bar when
the hardware installation is complete.

4. Calibrate and clean the scanner

To get high image quality and good recognition results, you must
calibrate the scanner for use at the first time prior to scanning. Please
repeat the calibrate and clean procedures from time to time.
1. Insert the attached calibration and clean paper facing up into the
feed slot of the scanner.
2. Click Start > All programs > I.R.I.S. Applications > Cardiris >
Cardiris.
3. Click File > New to create a new sheet.
4. Click (Scan Cards) button to bring up the Scan setting dialog
window.
5. Click the Calibrate button, then click OK to start the calibrating
procedure.

5. Business card scanning

1. Follow Steps 1-4 in the Calibrate and clean the scanner section to
bring up the scan dialog window.
Note: Insert the document facing up into the paper feed slot of the
5
scanner, making sure the document remains in position. Gently push
forward until the document is grasped by the feed slot.
2. Select the preferred Scan Mode, Auto Scan, and Brightness/
Contrast, then click the Scan to start the scan procedure.
Note: For more detailed settings above, please refer to Cardiris Help
located in Help > Help Topics.
3. Click (Card view) button on the upper toolbar.
4. Click (Recognize cards) button to start the character recognition.
Make sure the correct country is selected in the country select field.

6. Editing

1. Select and click a function below to adjust the preview of the
scanned card.
Drag-and drop data
Magnifying glass
4
2. Click the
3. Select the area you wish to edit or recognize again using a mouse.
4. Drag and drop the selected square to the target field.
Note: Drag-and-drop operation works only in the Card view (

7. Export and Synchronize

4
• To export and synchronize the data with other softwares, please
switch to
1. Click File > Import, Export and Synchronize... > Synchronize tap.
2. Click Export tab.
3. Select a preference format you wish to export the scanned name
card, and then click Export. The supported formats include as follow:
*.jpg, *.tif, E-mail, FrontRange GoldMine, HTML(*.html), IBM Lotus
Notes, Innomatix InfoContacts II, Outlook, Outlook Express, Palm
Desktop, Text (*.csv), vCard(*.vcf) and XML(*xml).
4. Alternatively, repeat the steps above 1-2 to select Synchronize.
5. Select a preference software you wish to synchronize the scanned
name card, and then click Synchronize. The supported softwares
include as follow: ACT!, FrontRange GoldMine, IBM Lotus Notes,
Outlook, Outlook Express, Palm Desktop and Pocket PC.
For more BCR functions, please refer to Cardiris Help located in Help
> Help Topics.

8. Troubleshooting

• Check to make sure the USB cable is firmly plugged into the
computer.
• Please calibrate or clean the scanner if the scan result is poor quality.

9. Safety Information and Specification

• Keep away from water or moisture and dusty areas.
• Never store in hot and very cold areas.
• Only use attachments/accessories specified by the manufacturer.
• No objects filled with liquids, such as vases, shall be placed on apparatus.
• Avoid dust contamination when the scanner is not in use.
• When left unused for a long period of time, the unit should be disconnected from
the USB cable and PC.
• Avoid environments where the scanner would be exposed to direct sunlight (or
any other source of excessive heat) for long periods of time.
• Protect the scanner from potential liquid spills such as soda, coffee, tea, etc.
• Be carefully to keep it without dropping it or strong impact.
• Operate the scanner on a level, well-grounded work surface, free of excessive
vibration.
• Don't open the scanner case alone without technical support because there is
danger of electrical shock.
Quick Start Guide
2. Carry pouch
3. Installation CD
4. Calibration paper
5. USB extension cable
Fit to width
Actual size
Fit the window
(Drag-and-drop data) button.
(Album view).
EN
Rotate left Turn
upside
Rotate right
).
