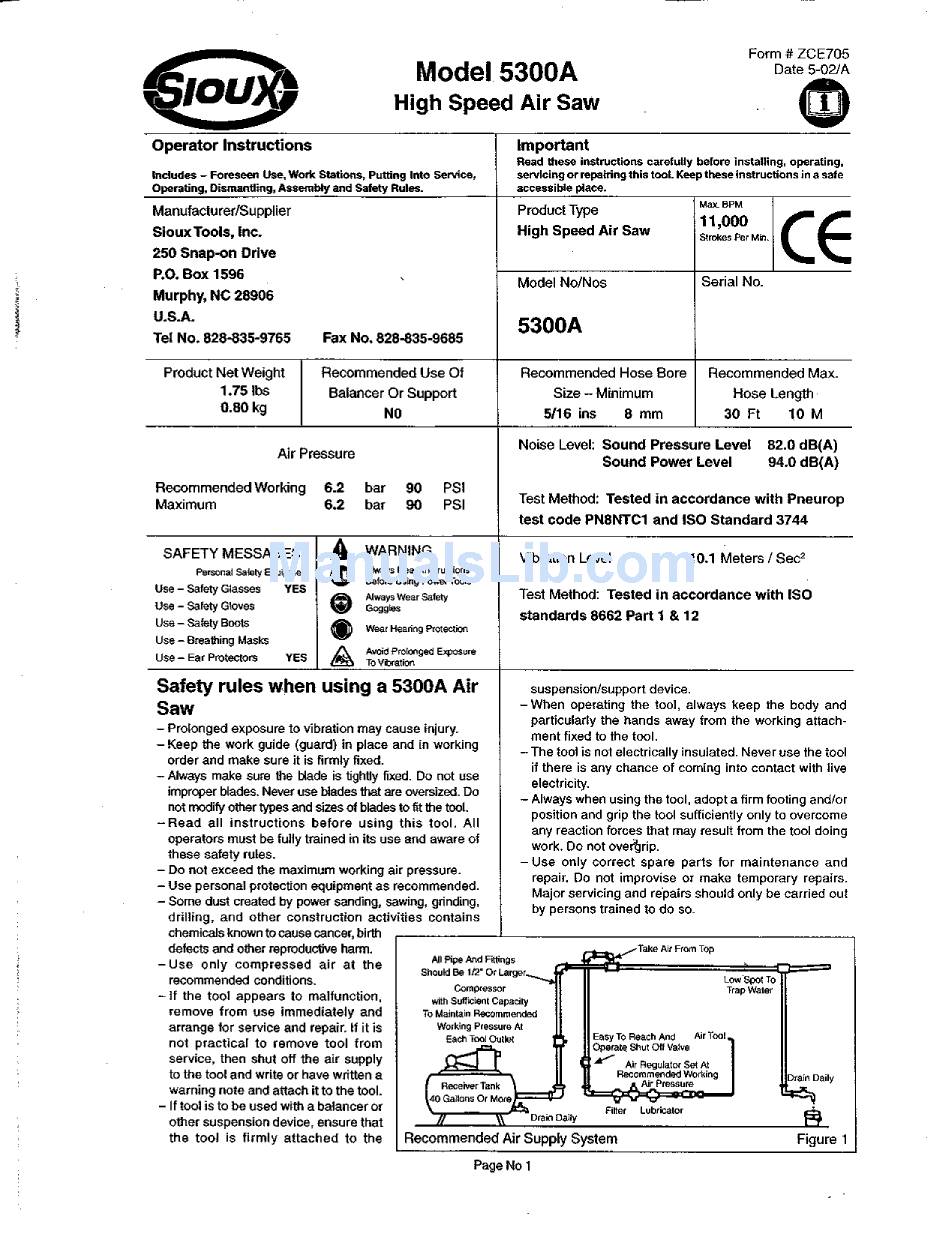

Sioux Tools 5300A Operating Instructions Manual

Form
#
ZCE705
Date 5-02/A
Operator Instructions
Indudes
-
Foreseen
Use,
Work Stations, Putting Into Service,
Operating, Dismantling, Assembly and Safety Rules.
Manufacturer/Supplier
Sioux Tools, Inc.
250
Snap-on Drive
P.O.
Box 1596
Murphy, NC
28906
U.S. A.
Tel No.
828-835-9765 Fax No. 828-835-9685
Air Pressure
Product Net Weight
1.75 lbs
0.80
kg
RecornrnendedWorking
6.2
bar 90
PSI
Maximum
6.2 bar
90
PSI
Recommended Use O f
Balancer Or
Support
N O
SAFETY MESSAGES
1 A
WARNING
Personal Safety Equipment
Use
-
Safety
Glasses
Use
-
Safety Gloves
defects and
other
reproductive harm.
-Use only compressed air at the
recommended conditions.
I f the tool appears to malfunction.
remove from
use
immediately
and
arrange for service and repair. If it is
not practical to
remove tool from
service, then shut off the air supply
to the
tool and write
or have written a
warning note
and attach it to the tool.
-
If tool is to be used with a balancer or
other
suspension device, ensure that
Use
-
Safety Boots
Use
-
Breathing Masks
use- ~ a r Protectm YES
Important
Read these instructions
carefully
before installing,
operating,
servicing
or
repairing this toot. Keep these instructions in a
sate
accessible
place.
@
ear
baring P r o t e c t i o n
Avoid Prolonged Exposure
& ,
Tovhtw
Safety
rules when
using
a 5300A Air
Saw
-
Prolonged exposure to vibration
may
cause injury.
-Keep the work guide (guard) in place and in working
order and
make
sure it
is
firmly fixed.
-Always make
sure the
blade is tightly fixed. Do not use
improper blades. Never use Hades that are oversized. Do
not modify other types and sizes of blades to fit the tool.
-Read all instructions before using this tool. All
operators
must be
fully trained
in
its use and aware of
these safety rules.
-Do not exceed the maximum working air pressure.
-
Use personal protection equipment as recommended.
-
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains
chemicals known to
cause cancer,
birth
,
Model
NoINos
5300A
Product Type
High
Speed
Air Saw
Serial No.
Max BPM
11,000
Noise
Level: Sound Pressure Level
82.0
dB(A)
Sound Power Level 94.0 dB(A)
Recommended Hose Bore
Size
-
Minimum
5/16 ins
8
mrn
Test
Method: Tested in
accordance with Pneurop
test code PN8rn'C-l
and
!SO Standard 3744
Recommended
Max.
Hose Length
3 0 F t
1 0 M
Vibration Level
10.1 Meters / Sec2
Test Method:
Tested
in
accordance with
I S 0
standards 8662 Part 1 & 12
suspension/support device.
-When operating the tool, always keep
the body and
particularly the hands away from the working attach-
ment fixed to the tool.
-The tool is not electrically insulated. Never use
the tool
if there is any chance of coming into contact with live
electricity.
-
Always when using the tool. adopt
a firm footing and/or
position and grip the tool sufficiently only to overcome
any
reaction forces that may result from
the
tool doing
work. Do not ove&rip.
-Use only correct spare parts for maintenance and
repair. Do not
improvise or make temporary repairs.
Major servicing and repairs shouid only be carried out
by persons trained to do so-
Take
Air From
Top
All Pipe And Fitinas
Should Be l/a- Or Larger
LOTI SpO! To
Compressor Trap Water
with
Sufficient Capacity
the tool is firmly attached to the
1
Recommended Air Supply System
Figure 1
Page
No 1
