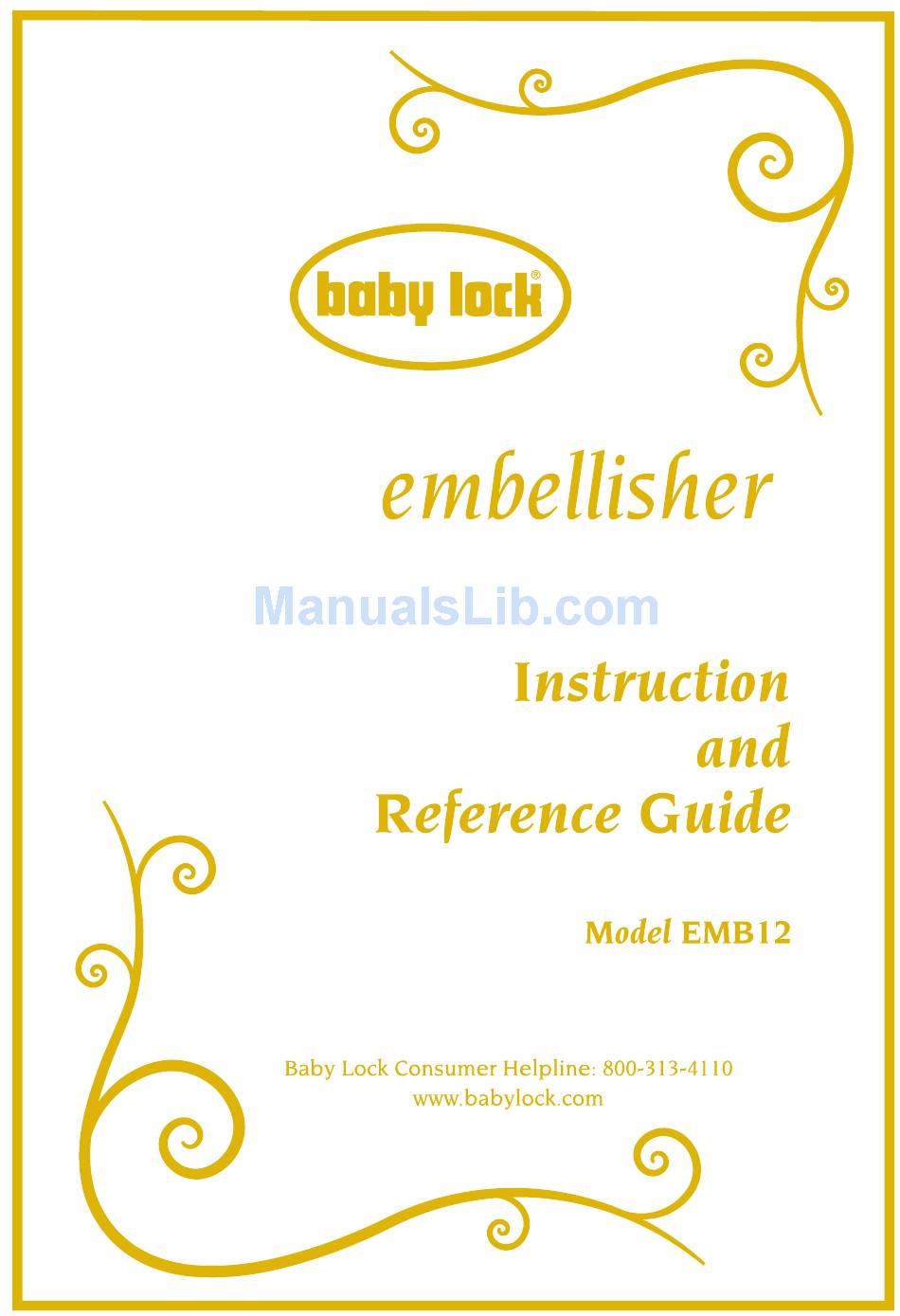

Baby Lock embellisher EMB12 Instruction And Reference Manual
  1. Manuals
  2. Brands
  3. Baby Lock Manuals
  4. Sewing Machine
  5. embellisher EMB12
  6. Instruction and reference manual

Baby Lock embellisher EMB12 Instruction And Reference Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the embellisher EMB12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baby Lock embellisher EMB12

Summary of Contents for Baby Lock embellisher EMB12

  • Page 2: Important Safety Instructions

    3. Never operate this felting machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the needle felt- ing machine to the nearest authorized Baby Lock retailer for examination, repair, electrical or mechanical adjustment.
  • Page 3 11. Always use the proper needle plate. The wrong needle plate can cause the needles to break. 12. Do not use bent needles. 13. Do not pull or push fabric while stitching. It may deflect the needles causing them to break. 14.
  • Page 4 1.Overview of Baby Lock Embellisher Cloth presser height adjusting screw Yarn & ribbon guide Yarn port Ribbon guide Handwheel Cloth Finger guard presser Needle Needle clamp plate holder Accessory storage Socket for Ribbon foot controller slot Power switch Sewing table...
  • Page 5 2. Setting Up Your Baby Lock Embellisher 1. Plug in the machine: Plug the power cord into the machine first, then into a wall out- let. Always make sure the power is off and remove the plug from the wall outlet when...
  • Page 6 2. Setting Up Your Baby Lock Embellisher cont. 5. Set up yarn stand a) From the top side of the yarn stand, insert the threaded end of the yarn stand pin into opening in yarn stand. b) Place washer and wing nut on the threads of yarn stand pin and tighten with fingers.
  • Page 7 3. Remove and replace Finger Guard Finger guard is a safety device to reduce risk of injury. If you would like to remove finger guard, special care is required around the felting needles. To remove finger guard: a) Open the lamp cover. b) Loosen the screw of finger guard by turning it counterclockwise.

  • Page 8: Start Embellishing

    4. Start Embellishing Let your creativity soar with your new Baby Lock Embellisher! Now you can make your projects even more distinctive. Let your imagination run free with new ways to create beautiful felted embellishment on your crafts, home decorating, quilting, sewing, and scrapbooking.
  • Page 9 4. Start Embellishing cont. Layer the cloth/fabric/materials that will be felted together to create the embellishment. Make sure the smaller piece to be felted is on the correct side of the project. NOTE:Depending on the look you want to achieve this can be either right or wrong side of project.
  • Page 10 5. Yarn Embellishing 1. Rotate the yarn & ribbon guide toward the back of the machine. Align the guide with the top of the yarn stand pin. 2. Place yarn or thread on the yarn stand and pull yarn end from center. 3.
  • Page 11 5. Yarn Embellishing cont. Yarn threader 5. Rotate the handwheel to bring the needle bar to its highest position. 6. Raise the cloth presser lifter lever. 7. Insert yarn into the yarn port using the yarn threader. (Fig. 4) 8. Pull the yarn from the bottom of the cloth presser.
  • Page 12 6. Ribbon Embellishing 1. Rotate the yarn & ribbon guide toward the back of the machine. Align the guide with the top of the yarn stand pin. 2. Place ribbon on the yarn stand. 3. Insert the ribbon into the slot of the yarn & ribbon guide.

  • Page 13: Maintenance

    7. Maintenance Changing the Needle(s) Use #365A017 needles for the Embellisher machine. Do not use any other type of needles Note: #365A017 needle is a very special needle and is exclusive for the Embellisher machine. See your Baby Lock retailer for replacement needles. Caution: When changing needle(s), unplug the power cord from the electrical outlet.
  • Page 14 7. Maintenance Cont. Replacement of light bulb Swing the lamp cover towards the left to open. Remove the light bulb and replace with new one that is the same type rated 15 watts/120 volts or 15 watts/230 volts. ATTENTION: To prevent possibly injury, unplug main power cord prior to replacing light bulb.
  • Page 15 3. Is there dust or lint around the edge of the needles, cloth presser, or holes of the needle plate? 4. Does the free arm area need to be cleaned? For problems other than bent needles or needle breakage, please contact your Baby Lock retailer. Specifications Needle: #365A017 Number of needles: 12 Needle clamp holder: Round type (2.5 intervals between needles)
  • Page 16 EMB12 EI-35-Ta 2008.8.1200...
