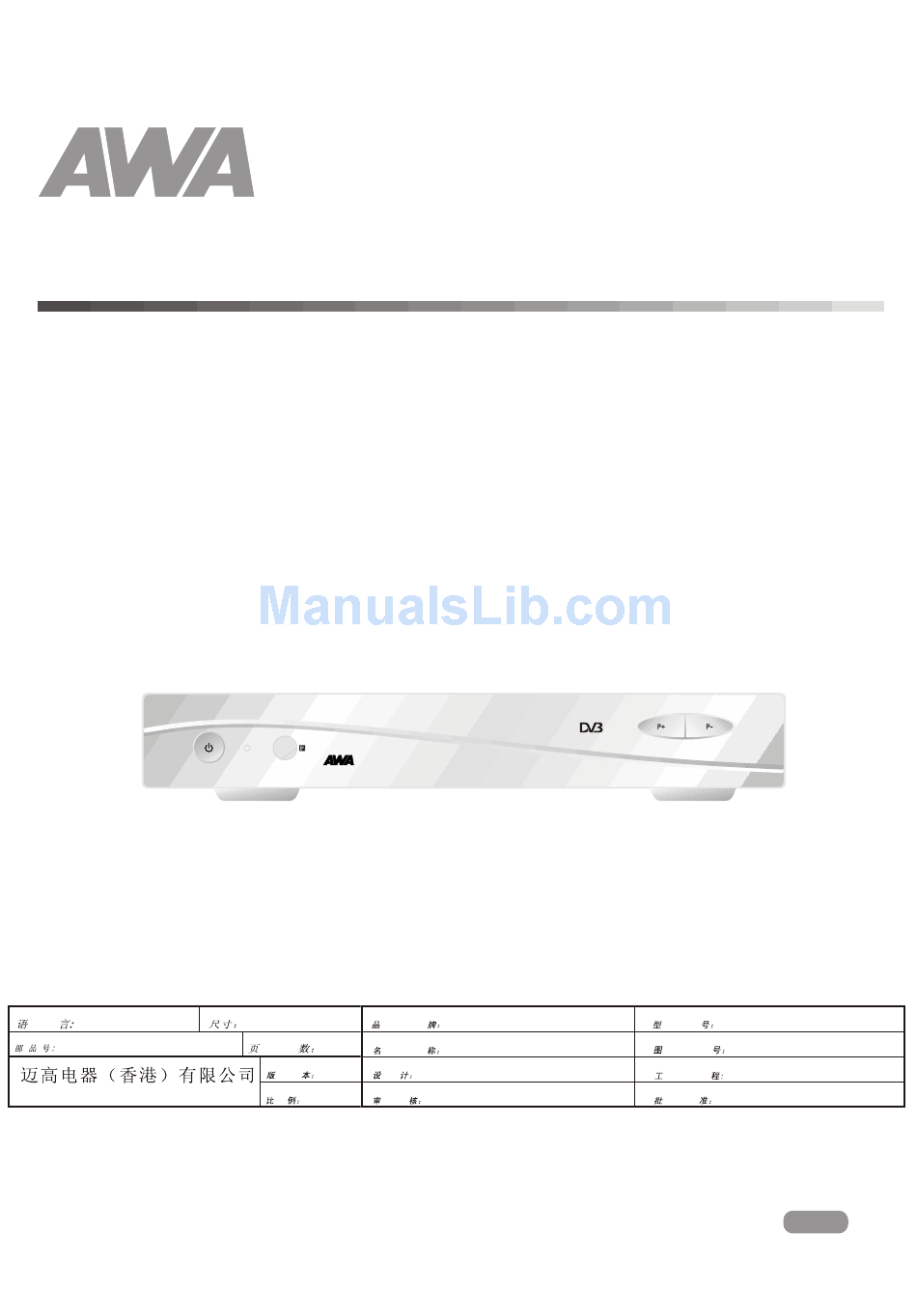

Set Top Box
Digital receiver
STB 232
Language:
English
PART N0.
MICO ELECTRIC (HONG KONG) LIMITED
J5840 AWA STB 232English IB V1.0
Read this manual before installation and use.
OWNER'S MANUAL
STB232
Size:
Brand Name:
148 x 210 mm
Total Pages:
Description:
36
Version.:
Design:
V1.0
Scale:
Auditing:
1:1
AWA
English IB
Felly
Jan.17,07
Model No.:
STB 232
Drawing No.:
00STB 232.I01.0.02
Engineering:
Authorize:
English
Advertisement
Table of Contents
Related Manuals for AWA STB 232
Summary of Contents for AWA STB 232
- Page 1 English Total Pages: Drawing No.: PART N0. Description: English IB 00STB 232.I01.0.02 Version.: Design: Engineering: Felly V1.0 Jan.17,07 Scale: Auditing: Authorize: MICO ELECTRIC (HONG KONG) LIMITED J5840 AWA STB 232English IB V1.0 English Read this manual before installation and use.
-
Page 2: Important Safeguards
SAFETY INFORMATIONS TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. CAUTION Water and Moisture- do not use this video product near water for example, To reduce the near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or risk of fire and electric shock, do near a swimming pool and the like. - Page 3 SAFETY INFORMATIONS This STB has been manufactured to satisfy international safety standards. Please read the following recommended safety precautions carefully. MAINS SUPPLY AC220-240V ~ 50/60Hz Do not overload wall outlets, extension cords or adapters OVERLOADING as this can result in fire or electrical shock. LIQUIDS Keep liquids away from the STB.
-
Page 4: Table Of Contents
CONTENTS SAFETY INFORMATION INFORMATIONS About the STB Front panel Rear panel Remote control SYSTEM CONNECTION General Connecting to the TV aerial Connecting to the TV Connecting a HiFi system Connecting to video recorder GETTING STARTED Switching on WELCOME PAGE System setup INSTALLATION Automatic channel scan Manual channel scan... -
Page 5: About The Stb
INTRODUCTION About the STB Front panel Channel down Channel up Standby button STB232 Power indicator Remote sensor Rear panel TV aerial Component Video for an external TV aerial (Y Cb Cr) Coaxial Digital Audio AC 220-240V ~50/60Hz STB 232 N294 MADE IN CHINA Down Mix Audio 2 channel L/R... -
Page 6: Remote Control
INTRODUCTION Remote control Remove the battery compartment cover. Load two AAA (UM-4 or R03) batteries into the battery compartment. Make sure that the batteries have been inserted in the correct polarities matching to the symbols +, - marked in the battery compartment. Close the battery compartment cover. - Page 7 INTRODUCTION Power On/Standby (Switch the STB ON/STANDBY mode) Numeric entry (Enter numeric values and to select the channel directly by entering its number) Menu (Open up menu) Red Button (For teletext function) Page up Cursor/ Enter to select sub-menu from the main menu and channel +/-, to select menu and sub-menu from the menu and volume +/-,...
-
Page 8: System Connection
SYSTEM CONNECTION General There are many different types of equipment that you can connect to the STB. In this manual you will see some of the most common ways to connect your equipment. Connecting to the TV aerial You can connect the STB to the following type of aerials: Standard outdoor aerial Please note the following: In some block of flats, the roof-mounted aerial system includes a filter and channel selector. -
Page 9: Connecting To The Tv
SYSTEM CONNECTION Connecting to the TV Antenna RF cable AC 220-240V ~50/60Hz STB 232 N294 MADE IN CHINA Yellow CVBS cable White Y Cb Cr cable Green Blue Remove the aerial lead from your TV and connect this to the TV AERIAL input socket on the STB. Switch on your TV, plug in and switch on your STB. -
Page 10: Connecting A Hifi System
SYSTEM CONNECTION Connecting a HiFi system Hi-Fi AC 220-240V ~50/60Hz STB 232 N294 MADE IN CHINA You can connect an RCA/Cinch single cable from the DIGITAL AUDIO socket on the STB to a HiFi system equipped with digital audio input. This output is also used for connection to an external Dolby digital decoder. -
Page 11: Connecting To Video Recorder
SYSTEM CONNECTION Connecting to Video Recorder Antenna Green Blue AC 220-240V ~50/60Hz STB 232 N294 MADE IN CHINA R cable Yellow White Video Cassette Recorder R cable Remove the aerial lead from your TV and connect this to the TV AERIAL input socket on the STB. Connect a Y Cb Cr cable between Y Cb Cr socket on the TV and the Y Cb Cr on the STB. -
Page 12: Getting Started
GETTING STARTED Switching on Turn on your TV set and select the corresponding AV input (with the AV key, or simular, on the television remote control). Turn on the main power supply to the STB, the indicator on the front of the unit will turn red and then green. -
Page 13: Installation
Installation Automatic channel scan Press the "MENU" button to enter the setup menu of the STB. Press "UP" or "DOWN" cursor button to select "Installation". Main Menu Press the "OK" Button to enter the sub-menu. Channel Installation Select the "Auto Scan" press "OK" button ,Auto Scan menu appears Setup... -
Page 14: Aerial Adjustment
Installation Aerial Adjustment When you adjust the location of aerial,use this menu to check signal intensity and quality of the selected channel. Press the "MENU" button to enter the main menu of the STB. Main Menu Press "UP" or "DOWN" cursor button to select "Installation". -
Page 15: Operation
OPERATION Subtitle SUBTITLE Press Subtitle button to switch subtitle On/Off. Page up / Page down Press to page up for the picture ,channel list ,favorite list and other text information. Press to page down for the picture ,channel list ,favorite list and other text information. Volume Control The volume level of the STB can be altered with the "Left"... -
Page 16: Accessing The Favorite Channels,Teletext,Displaying Program Information
OPERATION Accessing the favorite channels Press the "FAVOURITE" button to open up the "FAVOURITE LIST". Favorite Group 1 Press "LEFT" or "RIGHT" cursor button to select the desired favourite 0001 HN Radio2 0002 BBC NEWS 24 group. 0003 BBC Text Channel 0004 BBC Two Select the favourite channels and press "OK"... -
Page 17: Epg,Tv/Radio
OPERATION Accessing the Electronic Program Guide (EPG) Accessing the EPG of all channels: 15/02/2006 14:29 Press the "EPG" button to enter EPG menu . 14:05-14:55 0001 HN Radio2 BBC News Press "OK" button to view the current selected in full screen. 0002 BBC NEWS 2 Theme: News 0003 BBC Text... -
Page 18: Channel
CHANNEL Channel list There are four ways of channel selection - stepping through the channel list, selection by number, from the on-screen channel list, and using the electronic programme guide(EPG). Stepping through the channel list: To move through the channel list, press the upward arrow or downward arrow key on the remote control. -
Page 19: Tv Channel List
CHANNEL TV Channel list Enter Channel menu. Press "UP" or "DOWN" cursor button to highlight TV TV Channel List channel list. All Channel 0001 BBC CHOICE Press the "OK" button ,TV channel list appears. Preview 0002 BBC NEWS 2 Press "LEFT" or "RIGHT" cursor button to select channel group. - Page 20 CHANNEL TV Channel list (Continued) Sort In channel list menu, press numeric button "4" to open "Sort" menu. TV Channel List Press "UP" or "DOWN" cursor button to highlight sorting All Channel Sort 0001 BBC CHOICE way you want and Press "OK" button to confirm.
-
Page 21: Radio Channel List
CHANNEL TV Channel list (Continued) Edit: Use edit menu can rename the selected channel. Edit Channel All Channel In "Edit Channel" menu, press numeric button "4" to open 0001 BBC CHOICE Edit Channel edit channel menu.Highlight name item and press "OK"button Preview 0002 BBC NEWS 2 Name... -
Page 22: Delete All Favorites
CHANNEL Delete All Favorites Use this menu to delete all favorite channels. Enter Channel menu. Channel Press "UP" or "DOWN" cursor button to highlight Delete TV Channel List All Favorites item. Radio Channel List Input Password Delete All Favorites Press the "OK" button ,you will be asked to input the Delete All Channels ----... -
Page 23: System Set-Up
SYSTEM SET-UP Many aspects of your STB can be set to reflect your circumstances and preference. The SETTINGS menu screen is accessed from main menu. System setup main menu Use system menu to setup OSD Language, TV System, Start up Main Menu Service,Region and Time, Timer Setting, OSD Setting and Parental Lock. -
Page 24: Tv System
SYSTEM SET-UP TV System Use this menu to setup Display Mode,Aspect Ratio.Dolby Digital, Video Output and LCN Mode. TV System Enter "System Setup" menu, highlight "TV System". Display Mode Auto Aspect Ratio 4:3PS Press "OK" button ,the sub-menu appears. Dolby Digital Video Output Y Cb Cr Press "UP"... -
Page 25: Start Up Service
SYSTEM SET-UP Start up Service Use this menu to setup a start up service when you power on STB. Enter "System Setup" menu, highlight "Start up Service". Start up Service Press "OK" button ,the sub-menu appears. Boot on Service Mode Start up Service BBC ONE Press "UP"... -
Page 26: Timer Setting
SYSTEM SET-UP Timer Setting Various time can be set, such as program time, Sleep time. Enter "System Setup" menu, highlight "Time Setting". Timer Setting Program Timer Press "OK" button ,the Time Setting menu appears. Sleep Timer Load Default Timer Setting Press "UP"... -
Page 27: Osd Setting
SYSTEM SET-UP OSD Setting You can set Subtitle On/Off,OSD Timeout and OSD Transparency. Enter "System Setup" menu, highlight "OSD Setting". OSD Setting Subtitle Display Press "OK" button ,the OSD Setting menu appears. OSD Timeout OSD Transparency Press "UP" or "DOWN" cursor button to select the desired item and press "OK"... -
Page 28: Parental Lock
SYSTEM SET-UP Parental Lock The parental lock allows you to password protect channels,groups of menus or allow access to all menu.s System Setup Enter "System Setup" menu, highlight "Parental Lock".you will be asked to input password(the default password is"0000"). OSD Language Input Password TV System Start up Service... -
Page 29: Tools
Tools Use Tools menu ,you can see the information of current event,play game,Load factory default settings, upgrade software,help using remote control and enter welcome page for quick shortcut menu. Tools main menu Press the "MENU" button to enter the main menu of the STB. Main Menu Press "UP"... -
Page 30: Game
Tools Game You can play Game use STB by the function. Game Enter "Tools" menu, highlight "Game". Tetris Snake Press "OK" button ,the Game menu appears. Othello Press "UP" or "DOWN" cursor button to select the desired game . Highlight "Start" in game you selected and press "OK" button Select Enter MENU... -
Page 31: Remote Control Help
Tools Remote Control Help This function can show the description of each button on the screen. Remote Control Help Enter "Tools" menu, highlight "Remote Control Help". Power Press "OK" button ,the help menu appears. Menu Exit Press any button on the remote control, the corresponding button Mute Pause on the screen will be highlight and show up a statement of this key... -
Page 32: Troubleshooting
TROUBLESHOOTING In some region, the digital terrestrial signal may be weak. So you'd better use the antenna in which the booster was built,for watching the weak signal channels. Problem Possible cause What to do Mains lead unplugged Check mains lead Standby light not lit Mains fuse blown Check fuse... -
Page 33: Specification
SPECIFICATIONS SYSTEM RESOURCE FLASH SDRAM EEPROM TUNER & CHANNEL RF INPUT CONNECTOR x1 (IEC-TYPE, IEC169-2, FEMALE) RF OUTPUT CONNECTOR x1 (IEC-TYPE, IEC169-2, MALE (LOOPTHROUGH)) FREQUENCY RANGE: 174MHz ~230MHz (VHF) & 470MHz ~862MHz (UHF) SIGNAL LEVEL: -15 ~ -70 dbm DECODER MPEG-2 ISO/IEC 13818 TRANSPORT STREAM MPEG-2 MAIN PROFILE @MAIN LEVEL... - Page 34 NOTE...
