DVD 5.1 HOME THEATRE SYSTEM
DA641

Advertisement

Table of Contents
loading

Related Manuals for AWA DA641

Summary of Contents for AWA DA641

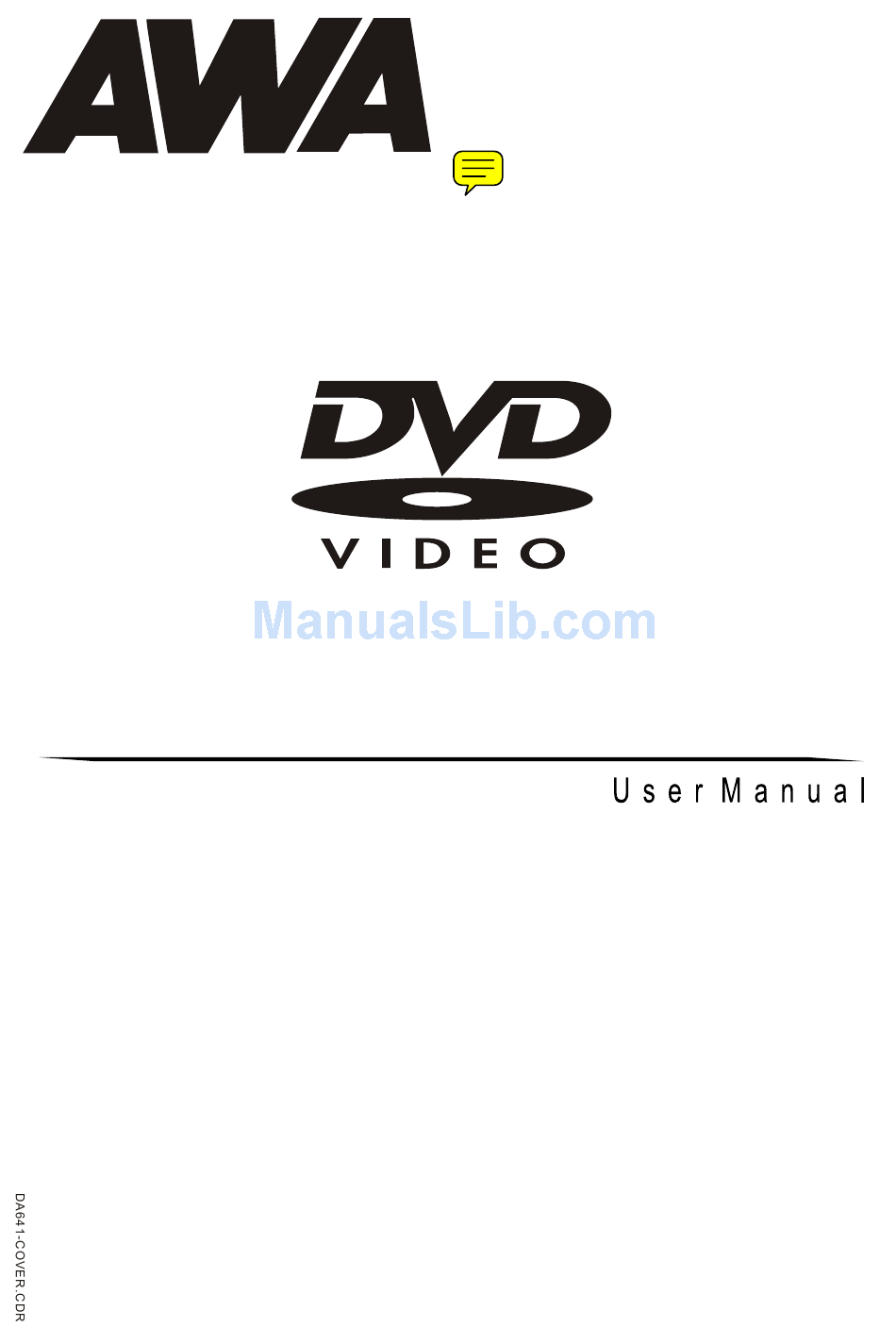

  • Page 1 DVD 5.1 HOME THEATRE SYSTEM DA641...

  • Page 2: Table Of Contents

    Contents Features..................2 For Your Attention................3 Accessories...................4 Panel....................5 Connection.................6-7 System Setup................8-12 Play..................13-17 Troubleshooting................18 Specification................19 M1389E21B-P1.CDR...

  • Page 3: Features

    Features Thank you for purchasing our product. Please read this manual carefully before connection and operation. Please keep this manual for future reference. This DVD player is a new generation home player which can produce high quality video and audio for your continued enjoyment. Built in Dolby Digital, LPCM, MPEG etc.

  • Page 4: For Your Attention

    For Your Attention IMPORTANT NOTES Please read through the manual carefully before connection and operation. Do not open the cover or touch any internal components. Turnoff the power when the unit is not being used. (Unplug the power cord if the unit is not used for a long time) Plug,as the disconnected device entirely with power source ,should keep in easy-to-operation in daily life.

  • Page 5: Accessories

    Accessories Accessories Remote Controller A/V Cable User Manual Speaker Connect Cable FM Antenna AM Antenna Remote Controller Operation Insert the batteries into the cell box. Points the remote controller at the remote sensor within 8 meters and with 30-degree of its left or right side.

  • Page 6: Panel

    Panel FRONT PANEL 1. POWER 3. OPEN/CLOSE BUTTON 5. STOP BUTTON 2. DVD DOOR 4. PLAY/PAUSE BUTTON 6. VOLUME KNOB REAR PANEL COMPONENT VIDEO OUT VIDEO Cb/Pb FM 75ohm -ANTENNA- AM LOOP SPEAKERS COAXIAL S-VIDEO Cr/Pr 2CH AUDIO IN VIDEO 2CH AUDIO OUT DIGITAL AUDIO 1.

  • Page 7: Connection

    Connection Connection Connection Stereo Audio Stereo Audio Stereo Audio Use a pair of Use a pair of Use a pair of audio audio audio cable (red for right /white for left) to connect the stereo cable (red for right /white for left) to connect the stereo cable (red for right /white for left) to connect the stereo audio output terminal of this unit to the other stereo audio input terminal.

  • Page 8: Connection

    Connection Connection Connection Connection Connection Connection Connection Connection Connection Connection The following available video output for this unit . The following available video output for this unit . The following available video output for this unit . The following available video output for this unit . The following available video output for this unit .

  • Page 9: System Setup

    System Setup MENU OPERATION: Press [SETUP] key for the screen to show the setup page. In setup mode, press [SETUP] key again to quit the setup page. Press direction key to the desired item, and press [ENTER] to confirm. (1) Some setup items are concerning the present modes. The items in gray can't be set up.
  • Page 10 System Setup STEREO: The audio out format is stereo even if the original sound is 5.1CH format. 3D SURROUND: The audio out is virtual surround sounds (only for 5.1CH player) 5.1CH: Turn off DOWNMIX function. If playing 5.1CH discs or the unit is connected with 5.1 channel amplifier, this item should be selected.(only for 5.1CH player) FRONT, CENTER, REAR and SUB-WOOFER SPEAKER: (No this item in...
  • Page 11 System Setup CHANNEL DELAY PAGE: If the above setup dissatisfy you, you can set the speaker distances in the real conditions. Press up/down direction key to select the speaker, and press left/right direction key to adjust the distance. EQUALIZER: In this item you can set sound mode, bass boost, super bass and treble boost.
  • Page 12 System Setup VIDEO SETUP PAGE COMPONENT V IDEO: OFF: Set video output to the composite. YUV: Set video output in analog component video format when connecting to Y/U/V terminals. P-YUV: Set progressive YUV signals. Connection same as YUV. Note: : If the video setting differs with the physical connection, the TV set may not have picture.
  • Page 13 System Setup P R E F E R E N C E P A G E TV system: This unit is suitable for all kinds of TV systems. You can select one of the PAL, MULTI or NTSC. PAL : Set the output at PAL system. MULTI: The TV system is auto switched according to the disc system.

  • Page 14: Play

    Play STANDBY Stand by/working mode switch OPEN/CLOSE Eject or load the disc tray When playing VCD1.1, CD disc, after loading the disc, use the digital key to select the desired track or chapter directly. Press [10+] key and then another digital key to select the track whose number is 0/10 0/10 more than 10.
  • Page 15 Play MENU Return to the previous menu when playing DVD disc. W hen playing VCD2.0 disc, it works as PBC. Press [MENU] button to switch PBC ON and PBC OFF. under PBC ON mode, the disc menu will show. You can select a program in the menu. Under PBC OFF mode, the menu will not appear, press digital key to select the track directly.
  • Page 16 Play When playing VCD or CD disc with multi-channel, press [L/R/ST] L/R/ST button to select left channel/right channel/stereo/mix audio output. STEP When playing DVD, VCD or SVCD disc, press [STEP] once, the picture changes to next frame. Press [ ] to resume normal play. ZOOM When playing DVD, VCD disc, press [ZOOM] to zoom in or zoom out the picture.
  • Page 17 Play PLAY PICTURE CD DISC Press [ ], 12 small pictures will show on the TV screen. Press direction key to select the desired picture. Use direction key to select SLIDE SHOW, then press [ENTER] to start random play. Use direction key to select MENU, then press [ENTER] to enter instruction menu. Instruction menu as follows: [PROGRAM]: to change picture transform mode, [ ]: entering picture preview...

  • Page 18: Play

    Play Tuner Operation: AM/FM AM/FM switch. MO/ST Mono/Stereo switch in FM mode. MEMORY After having selected a station and tuned a new frequency, press [MEMORY] to save the frequency. AUTO Automatic searching and presetting in FM/AM tuner mode. Press the digital button to choose a preset station, you must input two digital key to select a station.

  • Page 19: Troubleshooting

    Trouble shooting Before resorting to maintenance service, please kindly check by yourself with the following chart. Symptom Cause(s) Solution The power cord isn't connected Connect the power cord properly No power Fuse melting Replace a same specification fuse! TV video setup isn't corrected Select the suitable setup Player video setup isn't corrected No picture...

  • Page 20: Specification

    Specification DVD RECEIVER Power supply AC ~240V/50Hz Power consumption 150W Temperature -10~+40 Working 5%~90% environment Relative humidity TV System PAL/NTSC Frequency Response 20Hz~20KHz Disc output S/N(A weight) 80dB( 1KHz Frequency Range 70dB( 1KHz 60dB(1KHz) THD+NOISE Below the limit of apparatus measure WOW FLUTTER AM frequency Range 522KHz~1620KHz...
