Freud RTP1000 Set Up And Instructions Manual

RTP1000 Set Up Instructions
Inventory check list:

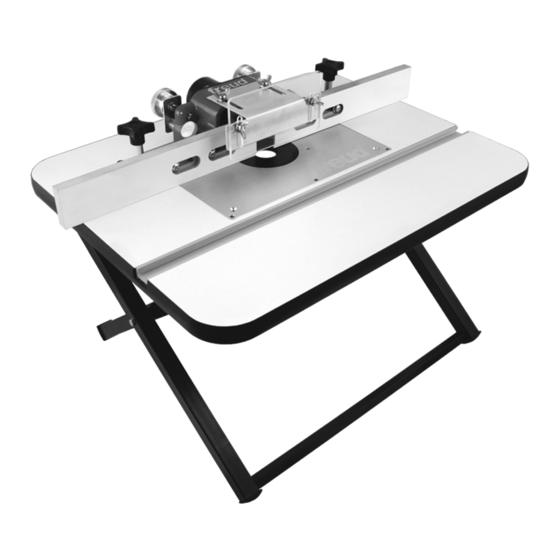

1 Table with Folding Legs
1 SH-5 Premium Router Fence
1 Clear Plastic Chip Guard
1 Metal Chip Guard Mounting Bracket
1 Insert Plate with 2 Reducing Rings
1 Guide Pin
1 Right & Left Fence Attachments
2 T-Handle Bolts**
2 5/16" Flat Washers**
2 1/4" Carriage Bolts
2 1/4" Flat Washers**
2 1/4" Wings Nuts
2 #10 Wing Screws**
2 #10 Flat Washers
4 1/4" Phillips Screws & Flat Washers**
4 #10 Flat Head Phillips Screws*
8 #10 Socket Flat Head Screws*
* Contained in Hardware Pack 1
** Contained in Hardware Pack 2
Optional:
• This system will accept a standard 3/4" miter gauge.
• An optional Feather Board (Freud model BF3510) may be purchased separately.
To learn more about Freud ® products visit us at www.freudtools.com
If any part is damaged or
missing do not return to
the merchant, please call
1-800-334-4107
for immediate assistance.
1
5/2007
