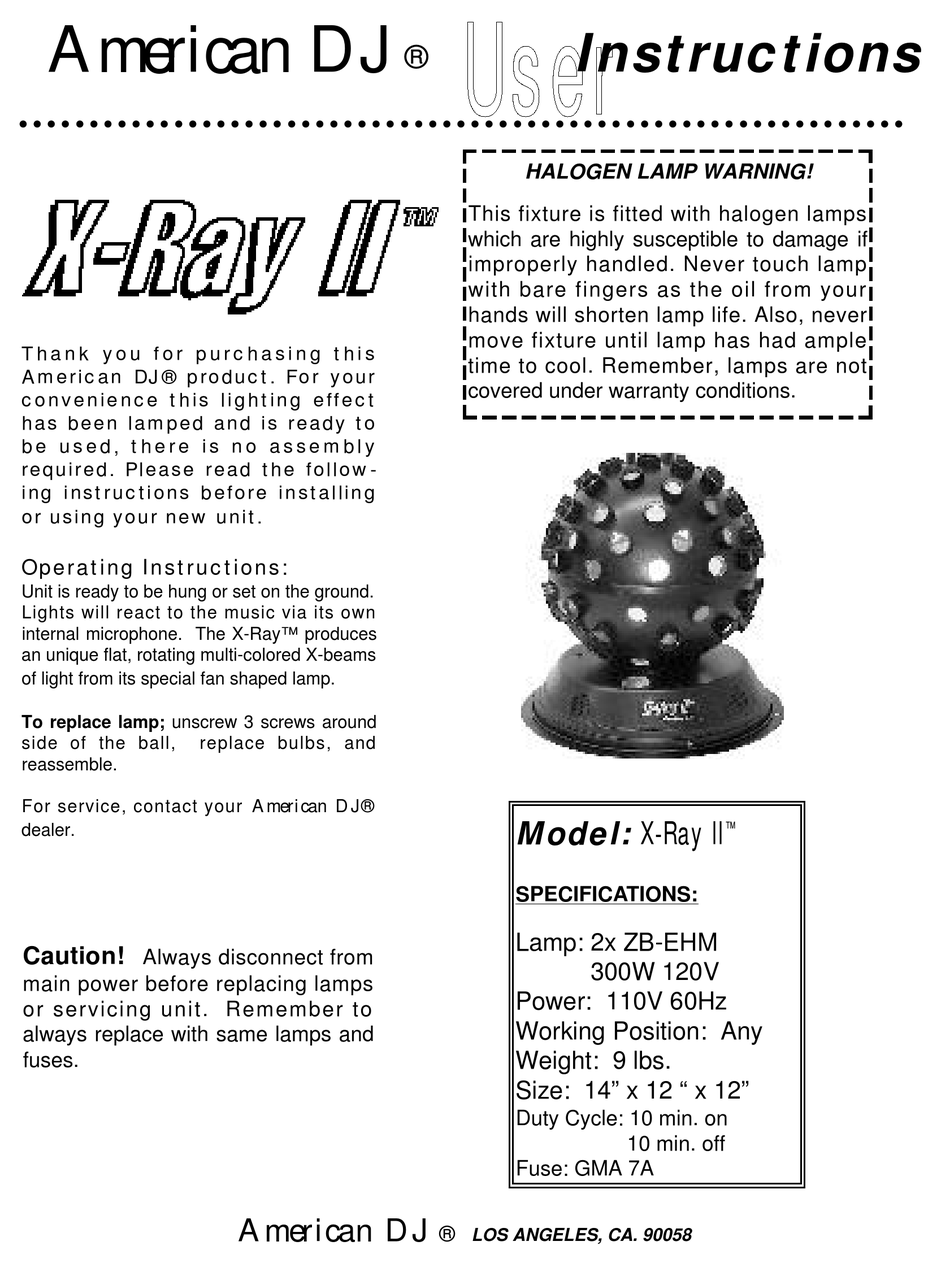

American DJ X-Ray ll User Instructions

American DJ
Thank you for purchasing this
American DJ® product. For your
convenience this lighting eff e c t
has been lamped and is ready to
be used, there is no assembly
required. Please read the follow-
ing instructions before installing
or using your new unit.

Operating Instructions:

Unit is ready to be hung or set on the ground.
Lights will react to the music via its own
internal microphone. The X-Ray™ produces
an unique flat, rotating multi-colored X-beams
of light from its special fan shaped lamp.
To replace lamp; unscrew 3 screws around
side of the ball,
reassemble.
For service, contact your American DJ®
dealer.
C a u t i o n !
Always disconnect from
main power before replacing lamps
or servicing unit. Remember to
always replace with same lamps and
fuses.
replace bulbs, and
American DJ
User
Instructions
®
HALOGEN LAMP WARNING!
This fixture is fitted with halogen lamps
which are highly susceptible to damage if
improperly handled. Never touch lamp
with bare fingers as the oil from your
hands will shorten lamp life. Also, never
move fixture until lamp has had ample
time to cool. Remember, lamps are not
covered under warranty conditions.
Model: X-Ray ll
SPECIFICATIONS:
Lamp: 2x ZB-EHM
Power: 110V 60Hz
Working Position: Any
Weight: 9 lbs.
Size: 14" x 12 " x 12"
Duty Cycle: 10 min. on
Fuse: GMA 7A
® LOS ANGELES, CA. 90058
™
300W 120V
10 min. off
