Exposure 2010S2 Quick Start Manual

high fidelity engineering
since 1974
FM TUNER
Quick Start Mods
Thank you for purchasing the Exposure 2010S2 FM Tuner.
Before you start
Contents:
Exposure 2010S2 FM Tuner
HS-101 Exposure System Remote Control
Mains cable
(batteries included)
Please note that your Exposure 2010S2 FM Tuner
may take up to 48 hours to "run-in" before reaching
its optimal performance. Each subsequent "run-in"
will then take about 30 minutes.
For optimum performance,
use Exposure speaker cables with your Exposure equipment.
1
Installation
a) Connect the mains cable to
the IEC mains input socket.
2
Amplifier Connection
The Exposure 2010S2 FM Tuner : Back View
Analogue Output
• Connect RCA Phono sockets to appropriate line input on the amplifier.
• Make sure right and left channels are properly connected.
(Right channel is marked in red)
3
Operation
Ensure that the volume control knob or your amplifier is set to minimum.

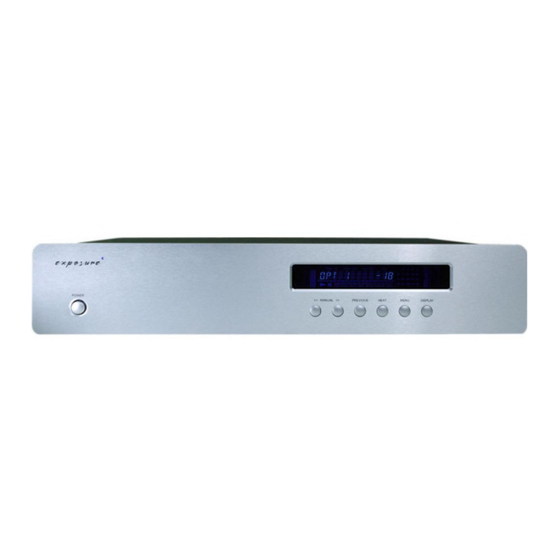

The Exposure 2010S2 FM Tuner : Front View
The LED power indicator will light up.
Press power switch.
b) Connect to the mains outlet on the wall. DO NOT
switch on until all input and output connections are
made.
Antenna
• For best performance connect to a roof mounted antenna or cable
distribution system.
The display will illuminate.
4
Function Controls
<< Manual Tune down one step, press and hold for SEEK tuning
Manual >> Tune up one step, press and hold for SEEK tuning
Previous Previous preset in list (in MENU mode, Previous item in list)
Next Next preset in list (in MENU mode, Next item in list)
Press to enter MENU mode, Press NEXT or PREVIOUS for
Menu
desired item, Press DISPLAY to select and press MENU
again to exit
Display Press for display ON/OFF (in MENU mode select desired
item)
5
Remote Control
Press the black Tuner button on the remote control before using the grey
function buttons, otherwise the remote will not operate the FM Tuner.
1~9,10+ Presets stations 1 to 18. Press +10
first followed by 0-8 to select
presets 10-18
Display Press once to turn display off. The
display will stay off until another
button is pressed. Press again to
turn it back on.
PREV Select Previous preset
NEXT Select Next preset
<SEARCH> SEEK tune up or down
