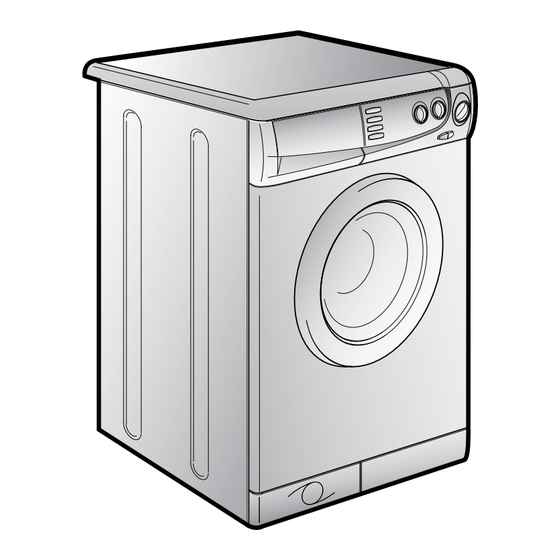

- Page 1 Washing machine Instructions for use AQUAVIVA 1300 AQ 130...
-
Page 2: Table Of Contents
Introduction Contents Page Please read these instructions for use carefully and all other information enclosed with the Introduction washing machine. General delivery notes Keep all documentation in a safe place for future reference or for any future owners. Safety notes Quick start Useful advice for the user Note: this machine is solely for domestic use. -
Page 3: General Delivery Notes
B) Turn off the tap - Press additional function buttons (if required) C) Candy equips all its appliances with earthing. Ensure that the mains supply is earthed, - Press the on/off button (page 7) and if it is not, seek assistance from a qualified person. -
Page 4: Description Of Controls
Useful advice for users Description of controls Fig. 1 Tips on using your domestic appliance in the most environmentally-friendly and economical Do a full load in your washing machine To prevent any possible waste of energy, water or detergent we recommend that you put a full load in your washing machine, not exceed the maximum loads shown below: Cotton and linen 4,5 kg Mixed... - Page 5 WASH TEMPERATURE selector EXTRA RINSE button This function will allow an extra rinse or more water added at the rinse stage – depending on Can be turned in either direction the programme selected. This is particularly important for avoiding skin irritation from detergent residues for people with particularly sensitive skin.
-
Page 6: Detergent Drawer
Detergent drawer Programme selector The washing machine has 3 different programme groups according to type of wash, The detergent draw is split into 4 compartments: temperature and duration for handling the various types of fabric (see wash programme - the first, labelled "I", is for prewash detergent or for guide). -
Page 7: Sorting The Laundry
Sorting the laundry The correct way to wash - It is recommended you wash only items which are machine washable with water and Preparing the laundry detergent and not dry-clean items. A) Select the laundry. - If you need to wash rugs, bedspreads or other heavy items, it is best not to spin them. Loading the laundry B) Open the porthole. - Page 8 Get the best results from your new Candy machine perlon), mixed cotton 40° To ensure you get the best results from your new Candy machine it ● is important to use the right detergent in your everyday wash. There Rinses...
-
Page 9: The Main Wash
Dosages Detergents, washing aids and amounts to use Only use detergents which are suitable for use in a washing machine. You will obtain the best results from your wash with the minimum use of chemical products Choice of detergent and the best care for your laundry if you take into consideration the degree of soiling as well General purpose detergents as the type of detergent to choose. -
Page 10: Cleaning And Routine Maintenance
Transporting the appliance or long Cleaning and routine maintenance periods when appliance is not in Do not use alcohol-based scourers and /or thinners on the outside of your washing machine, just a wipe with a damp cloth will suffice. The washing machine needs very little maintenance: If the appliance is being transported or is out of use for - Cleaning the drawer compartments. -
Page 11: Investigating Malfunctions
Note: The use of environmentally-friendly, phosphate-free detergents can have the following effects: Investigating malfunctions - waste water from rinsing may be cloudier because of the presence of zeolites held in suspension, without the rinse performance being adversely affected; What might be the cause of… - presence of white powder (zeolites) on laundry after washing, which is not absorbed by Defects you can remedy yourself the fabric and does not alter the colour of the fabric. -
Page 12: Technical Data
SETTING UP + INSTALLATION Remove the polystyrene base and place the machine near its permanent position (diagram 1). Carefully cut through the hose retaining clip at the rear of the appliance (diagram 2). Unscrew the central bolt (A); unscrew the 4 lateral screws (B) and remove the cross piece (C) (diagram 3). -
Page 13: Electrical Connections
Note: we recommend you keep the transit bracket, Note: it is advisable to turn off the tap after each wash braces and screws to immobilise the machine for future to isolate the washing machine from the water supply. transit. The Manufacturers will not be responsible for any For the washing machine to function properly the terminal end of the discharge hose (mouth) possible damage to the machine caused by not must be at a minimum of 50 cm and a maximum of 85 cm from the ground. - Page 14 NOTES ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 15 ............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 16 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................The manufacturer declines all responsibility in the event of any printing mistakes in ............................................this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
