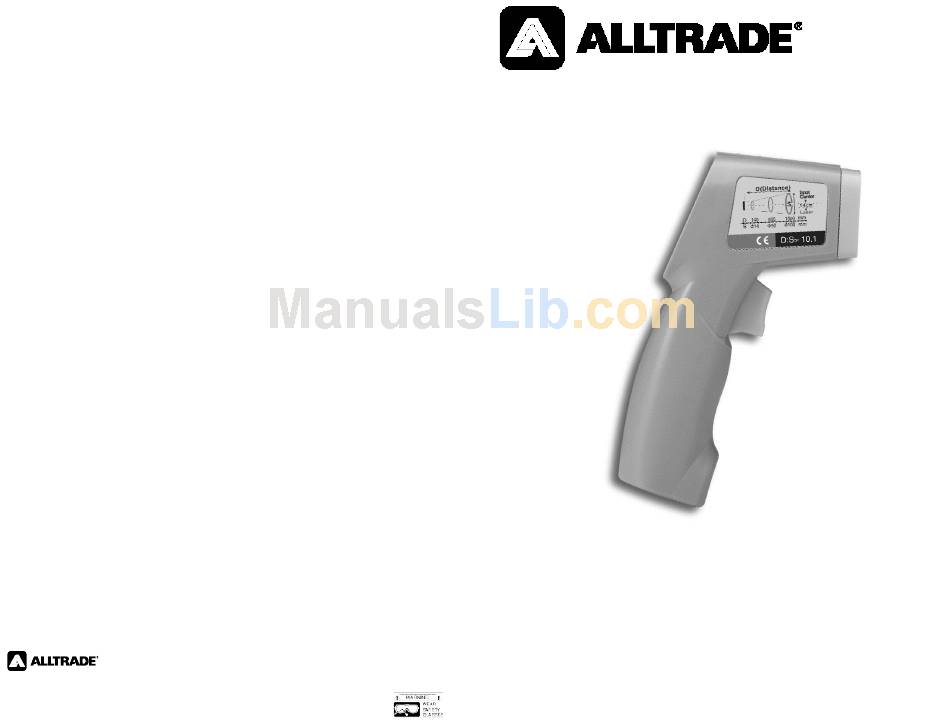

AllTrade 480742 Owner's Manual

Digital infrared thermometer

Table of Contents

Download this manual

Model #480742

DIGITAL INFRARED THERMOMETER

CAREFULLY READ THROUGH THE ENTIRE OWNER'S MANUAL

BEFORE OPERATING YOUR DIGITAL INFRARED THERMOMETER.

KEEP MANUAL WITH IMPORTANT RECORDS FOR

SAFETY INSTRUCTIONS, OPERATING PROCEDURES AND WARRANTY.

Please retain these instructions for future reference.

If you encounter any problems or difficulties,

please contact our toll free Customer Service Department at:

1-800-423-3598

1431 VIA PLATA

1-310-522-9008 (California only)

LONG BEACH, CA 90810-1462

1-310-522-9066 Fax

FOR CUSTOMER SERVICE

www.alltradetools.com

1-800-423-3598

Table of Contents

Need help?

Do you have a question about the 480742 and is the answer not in the manual?

Page 1 If you encounter any problems or difficulties, please contact our toll free Customer Service Department at: 1-800-423-3598 1431 VIA PLATA 1-310-522-9008 (California only) LONG BEACH, CA 90810-1462 1-310-522-9066 Fax FOR CUSTOMER SERVICE www.alltradetools.com 1-800-423-3598 © Copyright 2004, Alltrade Tools LLC Rev.1...
Page 2 SPECIFICATIONS: GENERAL Display 4 digit LCD display Measurement Ranges -40˚C to 500˚C (-40˚F to 932˚F) with 0.1˚C (32.18˚F) resolution Sample rate Approximately 1 second Laser power <1mW output at 675µm wave length. (Class II laser product) Storage Temperature -20˚C to 50˚C (-4˚F to 122˚F) Operating Temperature 0˚C to 50˚C (32˚F to 122˚F) Operating Humidity...
Page 3 PARTS AND DESCRIPTION FIGURE 1 Laser Pointer Beam LCD Display F/C Key for Fahrenheit and Centigrade Modes MODE Key selects Emissivity LASER Key BACKLIGHT Button for Night Usage Point and Shoot Laser Trigger Battery Compartment MEASUREMENT FIELD AND TARGET SIZE OPERATING INSTRUCTIONS (Distance) (Spot Center) Chart showing the distance of item being measured versus the area (circumference) of the Spot Center.
Page 4 TAKING A TEMPERATURE READING 1. Hold the device by its handle and pull the trigger. There will be a one second delay, and then the LCD will come on. 2. While continuing to pull the trigger, point the IR sensor at the object you are attempting to measure for at least 1 second.
