X15i
Multimedia Projector
Operator's Guide
Thank you for purchasing this projector.
WARNING ►Before using, read the "Product Safety Guide" and these
manuals to ensure correct usage through understanding. After reading, store
them in a safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
CAUTION
This symbol indicates information that, if ignored, could result
possibly in personal injury or physical damage due to incorrect
handling.
 Please refer to the pages written following this symbol.
NOTE • The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in this manual.
• The reproduction, transmission or use of this document or contents is not permitted without
express written authority.
Trademark acknowledgment
• VGA and XGA are registered trademarks of the International Business Machines
Corporation.
• Apple and Mac are registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
• Windows is a registered trademark of Microsoft Corporation.
• Internet Explorer is a trademark of Microsoft Corporation.
All other trademarks are the property of their respective owners.


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X15I - Digital Projector XGA LCD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 3M X15I - Digital Projector XGA LCD

  • Page 1: About This Manual

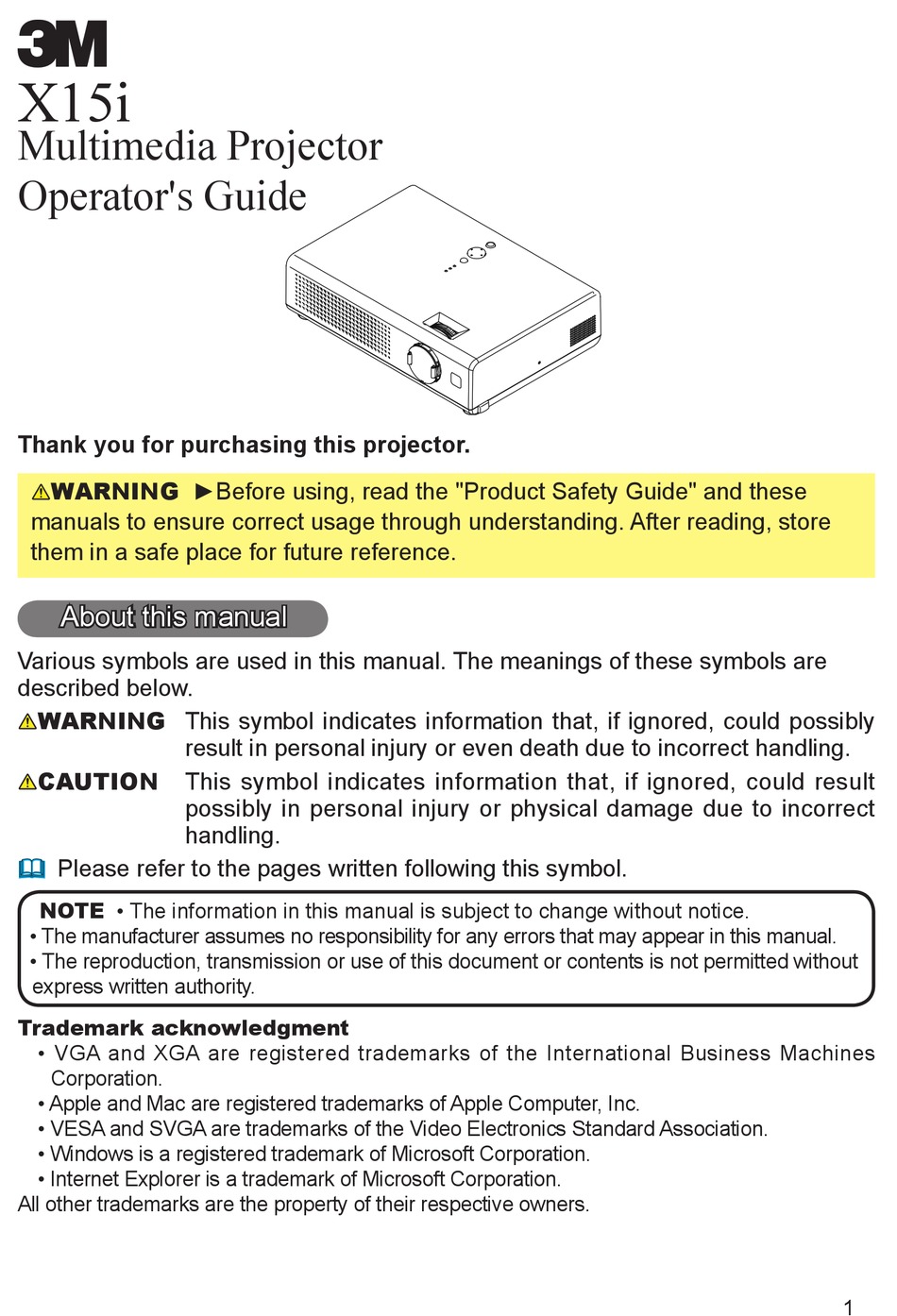

    X15i Multimedia Projector Operator's Guide Thank you for purchasing this projector. WARNING ►Before using, read the "Product Safety Guide" and these manuals to ensure correct usage through understanding. After reading, store them in a safe place for future reference. About this manual Various symbols are used in this manual.
