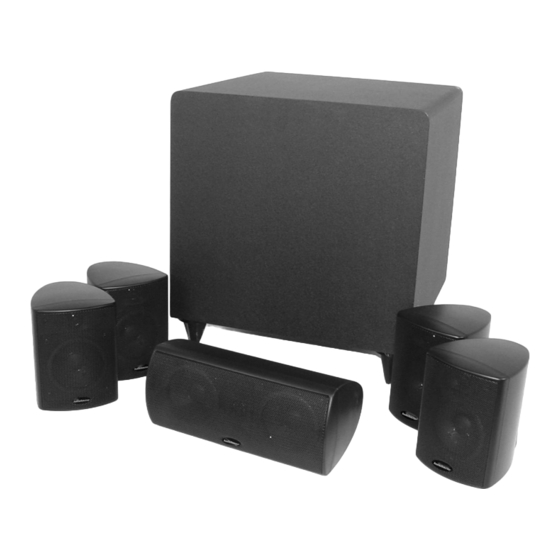

THIS SYSTEM CONTAINS:
• 4 each LS130 Satellite Speakers
(left front, right front, left rear and right rear speakers)
• 1 each LS130C Center Channel Speaker
• 1 each SW380 Powered Subwoofer
• 1 each UL Approved Power Supply
• 4 each Wall Hangers and 16 Screws
• Color Coded Speaker Wire
Congratulations on your purchase, and welcome to the AudioSource family of satisfied customers. Please take a
few moments to read this manual before you start to install your new speaker system. Also, be sure to retain this
document should you need to refer to it in the future.
The AudioSource System 230 Home Theater Speaker system is designed to accurately reproduce high fidelity
music, including digital source materials. Movies and stereo television broadcasts will sound more realistic, putting
you in the center of the action. The AudioSource System 230 Home Theater Speaker system is video shielded,
allowing placement on or near your television or monitor screen without disturbing the monitoring device's performance.
With proper placement you should be able to enjoy a true theater experience.
This manual is divided into two sections. The first provides information about the LS130 satellites and LS130C
center channel speaker. The next section concerns the SW380 Powered Subwoofer.
LS130 & LS130C
CONNECTING YOUR SPEAKERS
The spring-clamp connectors will accommodate up to 16-gauge speaker wire. Strip the insulation back about 1/4 inch. Press
the Spring-clamp in to reveal the opening of the connector, insert wire and release.
When connecting the speakers, be sure to maintain the correct polarity. Attach the wire from the (+) Red or positive terminal
of the speaker to the (+) Red or positive terminal of the corresponding component's speaker output terminal. The (-) Black or
negative terminal of the speaker must connect the respective (-) Black or negative terminal of the corresponding component's
speaker output terminal. This is easy to do by observing the color, stripe or ribbing that appears on the speaker wire. Note:
The LS130C Center channel uses a Green terminal for (+) or positive, where the LS130 satellites utilize a Red terminal for (+)
or positive. All LS130 and LS130C speakers use Black for the (-) or negative terminal.
If any parts of this system are missing or damaged,
do not return to the store of purchase.
1.800.HELP.115
Please call AudioSource directly.
Advertisement
Related Manuals for AudioSource System 230
Summary of Contents for AudioSource System 230
- Page 1 Movies and stereo television broadcasts will sound more realistic, putting you in the center of the action. The AudioSource System 230 Home Theater Speaker system is video shielded, allowing placement on or near your television or monitor screen without disturbing the monitoring device’s performance.
-
Page 2: Speaker Placement
SPEAKER PLACEMENT The LS 130C Center Channel speaker should be placed as close as possible to the center of the television or display device, either above or just below the picture area. This locks the sound and dialog to the picture. Place the left and right front speakers away from the picture toward the corners of the room. -
Page 3: Placement Guidelines
FEATURES OF THE SW380 The AudioSource SW380 features a highly efficient ported enclosure, a rugged 8-inch reinforced driver and an eighty watt amplifier with a passive low frequency crossover network. A choice of line level or speaker level input is provided for fast and easy connection to virtually any system. -
Page 4: Safety Instructions
In the event your System 230 fails to operate properly, please contact the dealer Power Sources where you purchased the unit, or you may contact AudioSource directly for further The appliance should be connected to a power supply only of the type described assistance.
