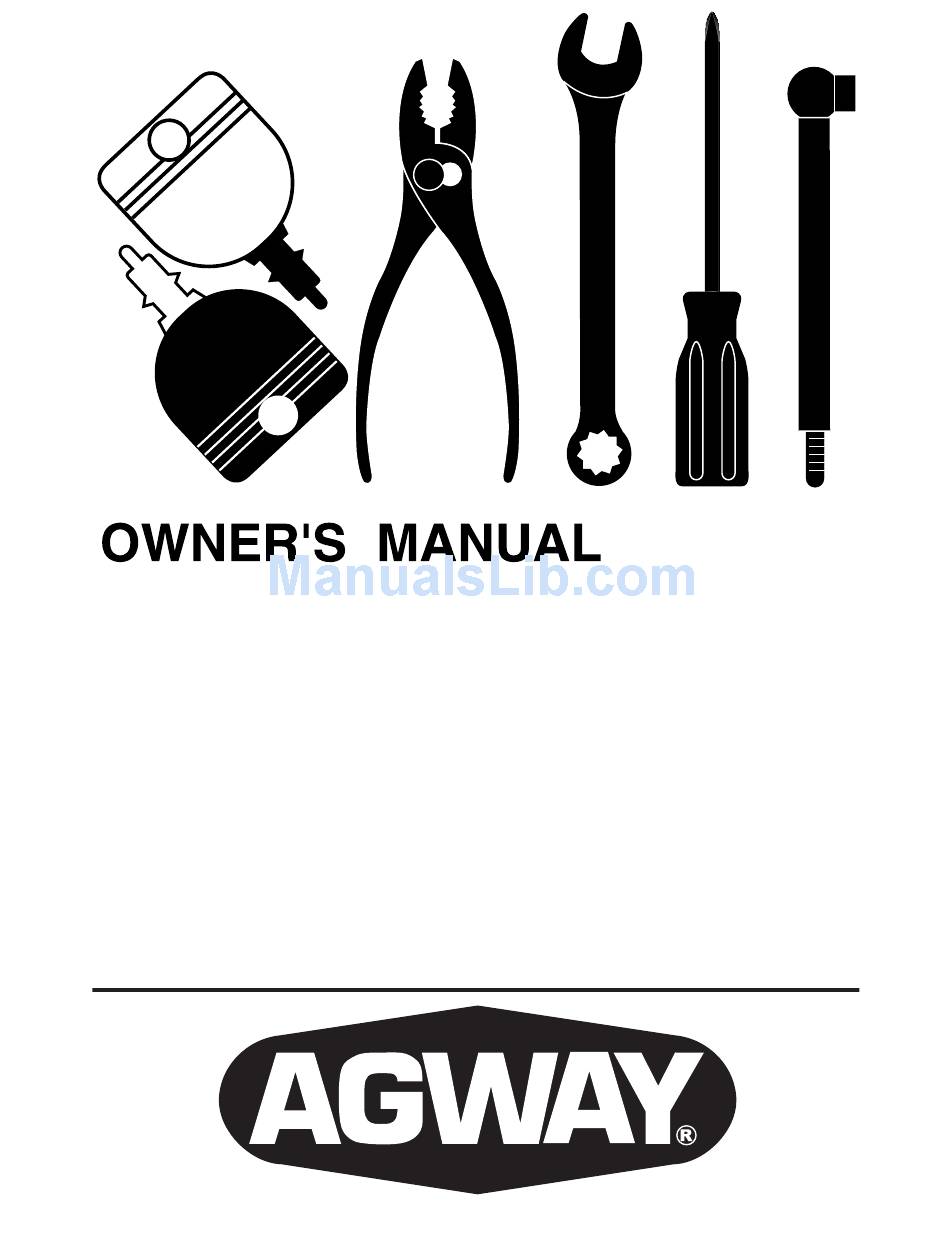

Agway AG22H42STA Owner's Manual

22 hp 42 inch lawn tractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

MODEL NO. AG22H42STA
22 HP 42 INCH
LAWN TRACTOR
•
Assembly
•
Operation
•
For Parts and Service, contact our authorized distributor:
call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886
Maintenance
•
Service and Adjustments
•
Storage
•
Troubleshooting
•
Repair Parts
190650 Rev. 1 7.28.04 TR/MH
PRINTED IN U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG22H42STA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Agway AG22H42STA

Summary of Contents for Agway AG22H42STA

  • Page 1 MODEL NO. AG22H42STA 22 HP 42 INCH LAWN TRACTOR • Assembly • Operation • Maintenance • For Parts and Service, contact our authorized distributor: call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886 Service and Adjustments • Storage • Troubleshooting • Repair Parts 190650 Rev.

  • Page 2: Table Of Contents

    Transportation charges for any parts submit- ted for replacement under this warranty must be paid by the purchaser unless such return is requested by Electrolux Home Products. 3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery which we fi...

  • Page 3: General Operation

    IMPORTANT: This cutting machine is ca pa ble of amputating hands and feet and throw- ing objects. Failure to observe the fol low ing safety instructions could result in serious injury or death. WARNING: In order to prevent ac- cidental starting when setting up, trans- port ing, ad just ing or making repairs, always dis con nect spark plug wire and place wire where it can not contact spark...
  • Page 4 • Follow the manufacturer’s rec om men d- a tions for wheel weights or coun ter - weights to improve stability. • Use extra care with grass catchers or other at tach ments. These can change the stability of the machine. •...
  • Page 5 • Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area. • Never carry passengers or children even with the blades off. • Do not mow in reverse unless ab so - lute ly necessary.

  • Page 6: Product Specifi Cations

    PRODUCT SPECIFICATIONS Gasoline 4.0 Gallons Capacity Unleaded and Type: Regular Oil Type SAE 30 (Above 32°F) (API-SG-SL): SAE 5W-30 (Below 32°F) Oil Capacity: W/Filter W/O Filter 3.75 Pints Spark Plug: Champion QC12YC (GAP: .040") Ground Speed Forward: (MPH): Reverse: Tire Pressure: Front: 14 PSI Rear: 10 PSI Charging...

  • Page 7: Unassembled Parts

    UNASSEMBLED PARTS (1) Large Flat Washer (1) Knob (4) Adjusting Bar (4) Retainer Springs (double loop) (4) Wheels Keys (2) Keys Steering Wheel Steering Wheel Adapter Steering Sleeve Steering Wheel Insert (1) Hex Bolt 1/4-28 x 1-1/4 (1) Locknut Seat (1) Washer 17/32 x 1-3/16 x 12 Gauge Gauge Wheel...

  • Page 8: Assembly/Pre-Operation

    ASSEMBLY/PRE-OPERATION Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you as sem ble must be tightened securely. Use the correct tools as nec es sary to in sure proper tightness.

  • Page 9: Install Seat

    INSTALL SEAT Adjust seat before tightening adjustment knob. 1. Remove adjustment knob and fl at washer securing seat to cardboard packing and set aside for assembly of seat to tractor. 2. Pivot seat upward and remove from the cardboard packing. Remove the cardboard packing and discard.
  • Page 10 TO CONVERT TO BAGGING OR DISCHARGING Simply remove mulcher plate and store in a safe place. Your mower is now ready for discharging or installation of optional grass catcher accessory. NOTE: It is not necessary to change blades. The mulching blades are de signed for discharging and bagging also.

  • Page 11: Operation

    These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. REVERSE HIGH NEUTRAL LIGHTS ON ENGINE ON ENGINE OFF OIL PRESSURE FUEL OVER TEMP LIGHT ATTACHMENT ATTACHMENT CLUTCH ENGAGED CLUTCH DISENGAGED FREE WHEEL (Automatic Models only) Failure to follow instructions...
  • Page 12 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. Ammeter Choke Control Throttle Control Clutch/Brake...
  • Page 13 The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any ad just ments or repairs.

  • Page 14: To Operate On Hills

    approximately 2-1/2 inches during the cool season and to over 3 inches during hot months. For healthier and better looking lawns, mow often and after mod- erate growth. • For best cutting performance, grass over 6 inches in height should be mowed twice.

  • Page 15: Towing Carts And Other At Tach - Ments

    TO TRANSPORT When pushing or towing your tractor, be sure to disengage transmission by placing freewheel control in free wheel ing po si tion. Freewheel control is located at the rear drawbar of tractor. 1. Raise attachment lift to highest posi- tion with at tach ment lift control.
  • Page 16 NOTE: Before starting, read the warm and cold starting procedures below. 7. Insert key into ignition and turn key clock wise to start position and release key as soon as engine starts. Do not run starter con tin u ous ly for more than fi...

  • Page 17: Mowing Tips

    forward, after the tractor moves ap- prox i mate ly fi ve (5) feet, slowly move motion control lever to reverse po si tion. After the tractor moves ap prox i mate ly fi ve (5) feet return the motion control lever to the neutral (N) position.

  • Page 18: General Recommendations

    MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE Check Brake Operation Check Tire Pressure Check Operator Presence and Interlock Systems Check for Loose Fasteners Sharpen/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Check V-Belts Check Engine Oil Level Change Engine Oil (with oil filter)
  • Page 19 TRACTOR Always observe safety rules when per- form ing any main te nance. BRAKE OPERATION If tractor requires more than fi ve (5) feet to stop at highest speed in highest gear on a level, dry concrete or paved surface, then brake must be checked and adjusted.

  • Page 20: Engine Lubrication

    1. Disconnect BLACK battery cable fi rst then RED bat tery cable and remove battery from tractor. 2. Rinse the battery with plain water and dry. 3. Clean terminals and battery cable ends with wire brush until bright. 4. Coat terminals with grease or pe tro - leum jelly.

  • Page 21: Air Filter

    CLEAN AIR SCREEN Air screen must be kept free of dirt and chaff to prevent engine dam age from overheating. Clean with a wire brush or compressed air to re move dirt and stub- born dried gum fi bers. AIR FILTER Your engine will not run properly using a dirty air fi...

  • Page 22: Service And Adjustments

    SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR AD JUST MENTS: 1. Depress clutch/brake pedal fully and set parking brake. 2. Place motion control lever in neutral (N) position. 3. Place attachment clutch in “DISENGAGED” position. 4.
  • Page 23 TO LEVEL MOWER HOUSING Adjust the mower while tractor is parked on level ground or driveway. Make sure tires are properly infl ated (See “PROD- UCT SPECIFICATIONS” section of this man u al). If tires are over or underinfl ated, you will not properly adjust your mower.
  • Page 24 Mandrel Idler Pulleys Pulley Mandrel Pulley TO CHECK AND ADJUST BRAKE Your tractor is equipped with an ad just able brake system which is mounted on the right side of the transaxle. If tractor requires more than fi ve (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be checked and ad just ed.
  • Page 25 Engine Pulley Clutching Idler Stationary Idler Center Span Keeper Transmission Input Pulley TRANSAXLE MOTION CON TROL LE- VER NEUTRAL AD JUST MENT The motion control lever has been pre set at the factory and adjustment should not be necessary. 1. Loosen adjustment bolt in front of the right rear wheel, and lightly tight en.
  • Page 26 TO ATTACH JUMPER CABLES - 1. Connect one end of the RED cable to the POSITIVE (+) terminal of each battery(A-B), taking care not to short against tractor chassis. 2. Connect one end of the BLACK ca ble to the NEGA TIVE (-) terminal (C) of fully charged battery.

  • Page 27: Engine Fuel System

    Immediately prepare your tractor for stor- age at the end of the season or if the trac- tor will not be used for 30 days or more. WARNING: Never store the trac tor with gas o line in the tank inside a building where fumes may reach an open fl...

  • Page 28: Troubleshooting

    TROUBLESHOOTING CHART: PROBLEM CAUSE Will not start 1. Out of fuel. 2. Engine not “CHOKED” properly. 3. Engine fl ooded. 4. Bad spark plug. 5. Dirty air fi lter. 6. Dirty fuel fi lter. 7. Water in fuel. 8. Loose or damaged wiring. 9.
  • Page 29 TROUBLESHOOTING CHART: PROBLEM CAUSE Loss of power 5. Low oil level/dirty oil. (continued) 6. Faulty spark plug. 7. Dirty fuel fi lter. 8. Stale or dirty fuel. 9. Water in fuel. 10. Spark plug wire loose. 11. Dirty engine air screen/fi ns. 12.
  • Page 30 TROUBLESHOOTING CHART: PROBLEM CAUSE Poor grass 1. Engine speed too slow. discharge 2. Travel speed too fast. 3. Wet grass. 4. Mower deck not level. 5. Low/uneven tire air pressure. 5. Check tires for proper air 6. Worn, bent or loose blade. 7.
