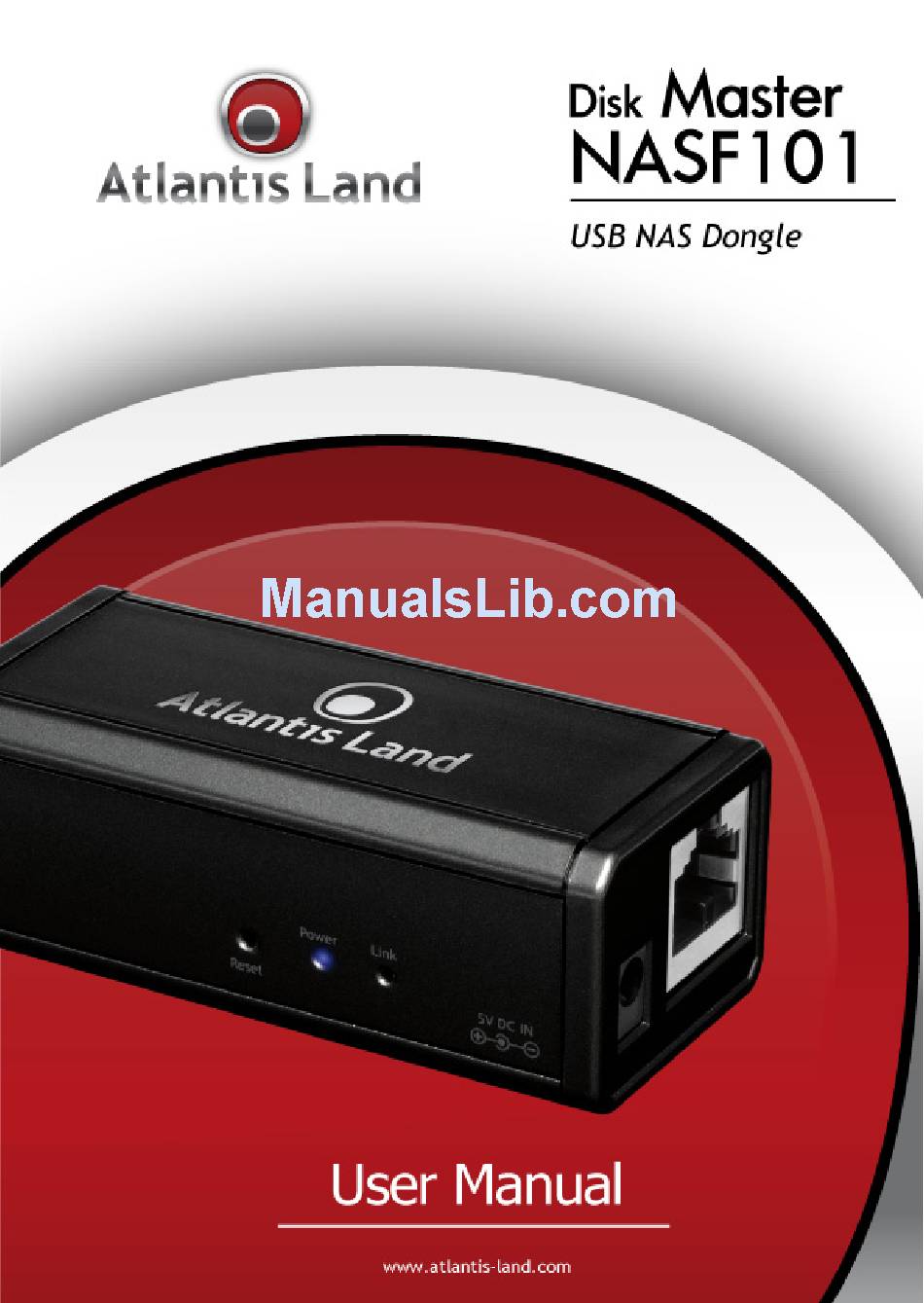

Atlantis Land DISK MASTER NASF101 User Manual

Usb nas dongle
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Summary of Contents for Atlantis Land DISK MASTER NASF101

  • Page 2 For more detailed instructions on configuring and using this device, please refer to the online manual. FRANCAIS Ce produit est couvert par une garantie Atlantis Land de 2 ans. Pour des informations plus détaillées, référez-vous svp au site Web www.atlantis-land.com. DEUTSCH Dieses Produkt ist durch die Atlantis Land 2 Jahre Garantie gedeckt.

  • Page 3: Table Of Contents

    INDEX 1. Product Overview ....................7 1.1 Key Features ....................7 1.2 Network Scheme..................7 2. Cabling and Setup ....................8 2.1 Package Contents ..................8 2.2 Choosing a place for your Disk Master ............8 2.3 Cabling……....................9 2.4 Front Panel and LEDs .................
  • Page 4 Windows™ 98SE/2000/ME/XP/VIsta are trademarks of Microsoft® Corp. Pentium is trademark of Intel. All copyright reserved. The Atlantis Land logo is a registered trademark of Atlantis Land. All other names mentioned mat be trademarks or registered trademarks of their respective owners.

  • Page 5: Safety Information

    Limited Warranty back up the Our warranties (for hardware and software) do not cover data loss – contents of your drive to a separate storage medium on a regular basis . Also, consequential damages; incidental damages; and costs related to data recovery, removal and installation are not recoverable under our warranties.
  • Page 6 Important information for the correct recycle/treatment procedures of this equipment The crossed-out wheeled bin symbol printed on the unit label or unit packaging indicates that this equipment must not be disposed of as unsorted municipal waste but it should be collected separately.

  • Page 7: Product Overview

    1. Product Overview Thank you for purchasing USB2.0 NAS Dongle storage device. 1.1 Key Features • Support USB mass storage device • Support Auto IP (DHCP server or DHCP Client)/ Fixed IP • Under network environment, it supports one 10/100Mbps Ethernet port •...

  • Page 8: Cabling And Setup

    2. Cabling and Setup 2.1 Package Contents The package should contain the following items: • Disk Master USB NAS Dongle • RJ45 CAT 5 cable • One Quick Start Guide (English, Italian) • One CD with driver, software, utility and manuals •...

  • Page 9: Cabling

    • Place the Disk Master close enough to a network jack for the Ethernet cable to reach it. • Leave at least 10cm of space at the rear of the device for ventilation. • Use a grounded wall outlet (uninterruptible online power supply with AVR is recommended.) •...

  • Page 10: Front Panel And Leds

    2.4 Front Panel and LEDs MEANING Power Lit blue if powered on. Link Flashes yellow when sending/receiving data. TASTO MEANING Reset Push RESET button for 30s to recovery default values on NAS Dongle. PORT MEANING Power Jack Connect the supplied power adapter to this jack. Please use the Ethernet cable to connect the Disk Master to network.

  • Page 11: Factory Default Settings

    2.5 Factory Default Settings The TCP/IP protocol stack and Ethernet network adapter must be installed. If not, please refer to MS Windows relative manuals. Before you configure this device you need to know the following default settings: • Username: admin •...

  • Page 12: Quick Configuration

    3. Quick Configuration 3.1 Set a fixed IP address In order to map network drive permanently on any PCs that require them, we suggest to fix an IP Address to the LAN interface of NAS Dongle. To set a fixed IP address on the NAS dongle, click on IP Config menu’ and set this function on Static IP as below;...

  • Page 13: Disk Format

    Secondary DNS Insert the secondary DNS address. 3.2 Disk Format During the first installation, it is necessary to format the disk contained into HDD enclosure in order to create some default folder and save configuration (for BT client). Please select Disk Utility and press Format to start the formatting procedure. FIELD MEANING Disk ID...

  • Page 14: Map A Network Drive

    Scan Disk Press this button to start a diagnosys procedure of the disk connected to the NAS dongle. 3.2 Map a network drive To create a new network drive, please see following procedure: • Click Start->Computer (for Windows VISTA) or My Computer->Tools (for Windows 2000/XP) •...

  • Page 15: Advanced Configuration

    4. Advanced Configuration 4.1 Status Provide the basic information for NAS Dongle. 4.2 Identification You can change and modify your host & group name, and password from this page. Click “Apply” to save the setting. In Window O/S, right click on “My computer”, choose “Properties”, and go to the computer name tab to see your current workgroup.
  • Page 16 FIELD MEANING Host Name This is used to identify your device on the network. If you prefer a different name, type in the new name and click “Apply” to save setting. Group Name This should be same as your workgroup. In general, the default “WORKGROUP”...

  • Page 17: Data/Time Setting

    4.3 Data/Time Setting You can change time setting form this page. Clicks “Apply” to save the setting. By default SNTP is in network time service, your can also select “Synchronize to PC”. If internet access is available we recommended setting SNTP to Network time service instead.

  • Page 19: Disk Utility

    4.5 Disk Utility In this page, you can manage the hard disk setting. FIELD MEANING Format Disk For the first time installation, you need to format hard disk into FAT32 system file, this procedure applies to either new or used hard disk. Scan Disk After the scan, it will show the number of file content and health status for the hard disk.

  • Page 20: Maintenance

    4.6 Maintenance This page allows you to update NAS dongle firmware, to go back to default setting or to reboot NAS system. Follow the steps below to update the loader and firmware for NAS Dongle: Obtain the latest firmware from your vendor. Store the firmware file in your computer and decompress them if necessary.

  • Page 21: Smb Server

    Click on Reset and go back to default password setting. Besides SAMBA/FTP account setting will still remain in the NAS Dongle, rest of setting will go back to factory default. Press Reboot button to restart the USB NAS Dongle. 4.7 SMB Server SMB server allows you to share data or files through LAN environment.
  • Page 22 How to create a SMB user Click on the “Add” button and type new account name/password and than “Next”. In the same time, NAS Dongle will also crate a SAMBA folder named “atlantis”; now You have to select “atlantis” and add in to “Sharing List”.
  • Page 23 You can “Run” from window start button, type \\ follow by the IP address (eg:\\192.168.1.121), and click OK to continue. Type “atlantis” and password to login. Now you have set up the folder that you wish to share on your NAS Dongle. The shared folder can be accessed from other computer on your local network.
  • Page 24 How to modify account password Select the “atlantis” and than click “Modify”. Enter new password and click “Apply” to save setting.

  • Page 25: Ftp Server

    How to delete a SMB (SAMBA) account Select an account you wish to delete, click “Delete” to proceed. Please note that all the data inside the folder will be lost after the delete. 4.8 FTP Server Remember to “Enable” the FTP service on the status page, when you plan on using the FTP server.
  • Page 26 Port Select the listening service port for FTP server. File Language By default, the encoding is set to English. If you want to store Support or transfer files with a different encoding (different language), choose the corresponding language for the drop down list. In order to transfer and view the files correctly, it is important that you select the correct language.

  • Page 27: Media Server

    4.9 Media Server The Media server on NAS Dongle can be used to share your photo and music files with a XBOX360® video game console from Microsoft that is connected to the same local network. Before you start, make sure both devices are connected to the same local network and turned on.

  • Page 28: Print Server

    4.10 Print Server Install your Printer driver into your computer, (for example. if Epson PL- 6200L Printer is connected to the NAS, you must install PL-6200L driver in to the computer first). After driver installation, please click “Start” → “Setting” →...

  • Page 29: Bittorrent

    The NAS Dongle Printer server does not support GDI/Host-based printers. For some Multi Function Printers (MFP); scanning functions might not be functional probably. Please contact Printer Manufacture for detail Specifications. 4.11 BitTorrent Disk Master NASF101 supports Bit torrent download independently without using PC resource.
  • Page 30 Upload Limit Set the upload limit for BT Server/Client Dowload Show current downloads status. Queue Select “Bit torrent” server, choose the “Download Path” you wish to use, then click “Apply” to save setting. (DO NOT change path setting while perform BT downloading, otherwise the downloaded job will be missing).
  • Page 31 Mail Notification After the download is successful, an email will be send to designated email address. Click “Mail setup”, input SMTP server, recipient email, SMTP A/C, Password, and click “Apply” to save setting. FIELD MEANING Enable Enable email notification function. SMTP Server Insert SMTP server address.

  • Page 32: Appendix A: Troubleshooting

    APPENDIX A: Troubleshooting This chapter covers potential problems and the corresponding remedies. A.1 Using LEDs to Diagnose Problems The LEDs are useful aides for finding possible problem causes. A.1.1 Power LED The PWR LED on the front panel does not light up. Steps Corrective Action Make sure that the Disk Master’s power adaptor is connected to the...
  • Page 33 custom configurations and restore all of the factory defaults including the password. Before you configure this device you need to know the following default settings: • Username: admin • Password: atlantis • IP address: by DHCP, (If a DHCP server isn’t available in the network, the Disk Master will use 169.254.0.1).
  • Page 34 A.4 General Some of the functions and menus are not available! Steps Corrective Action Many of the functions require a hard drive to be installed. Make sure you have at least one HDD installed and formatted in EXT2 or EXT3. What is the limitation of user on the NAS FTP, Samba and account mode? Steps Corrective Action...
  • Page 35 For technical questions and support, please contact our help-desk by ticket on http://www.atlantis-land.com/ita/supporto.php. For generic informations, please send an e-mail to info@atlantis-land.com For presales informations, please send an e-mail to prevendite@atlantis-land.com. Atlantis Land Via Pelizza da Volpedo, 59 20092 Cinisello Balsamo (MI) - Italy Tel: +39. 02.00.632.300 Fax: +39. 02.66.016.666 Website: http://www.atlantis-land.com...

  • Page 36: Technical Specification

    Technical Specification Interfaces LAN: Rj-45 10/100 Ethernet Port (auto MDI/MDI-X) USB: USB 2.0 Port LED: 2 diagnostics LEDs (Power, Link) Button: Reset HDD Specifications Support USB Storage: USB HDD Enclosure, USB Flash Driver (minimum 4GB) Support HDD Capacity : up to 2TB (for single volume) File System Specifications File System : FAT32 compatible Single File Support: up to 127GB (over FAT32 4GB...

  • Page 37: Hdd Compatibility List

    HDD Compatibility List Brand Product Family Model Number Drive Size (GB) Hitachi Deskstar 7K1000 HDS721010KLA330 1000 Hitachi Deskstar 7K1000 HDS721075KLA330 Hitachi Deskstar T7K500 HDT725050VLA360 Hitachi Deskstar T7K500 HDT725050VLA380 Hitachi Deskstar T7K500 HDT725040VLA360 Hitachi Deskstar T7K500 HDT725040VLA380 Hitachi Deskstar T7K500 HDT725032VLA360 Hitachi Deskstar T7K500 HDT725032VLA380...
  • Page 38 Seagate Barracuda ES.2 ST31000340NS 1000 Seagate Barracuda ES.2 ST3750330NS Seagate Barracuda ES.2 ST3500320NS Seagate Barracuda ES.2 ST3250310NS Seagate Barracuda 7200.11 ST31500341AS 1500 Seagate Barracuda 7200.11 ST31000333AS 1000 Seagate Barracuda 7200.11 ST31000340AS 1000 Seagate Barracuda 7200.11 ST3750330AS Seagate Barracuda 7200.11 ST3750630AS Seagate Barracuda 7200.11 ST3640323AS Seagate...
  • Page 39 Caviar Green WD20EADS 2000 Caviar Green WD15EADS 1500 Caviar Green WD10EADS 1000 Caviar Green WD10EACS 1000 Caviar Green WD7500AACS Caviar Green WD6400AACS Caviar Green WD5000AACS Caviar Black WD1001FALS 1000 Caviar Black WD7501AALS Caviar Black WD6401AALS Caviar Black WD5001AALS AV-GP WD10EVCS 1000 AV-GP WD7500AVCS...
  • Page 40 Caviar SE16 WD3200AAKS Caviar SE16 WD2500AAKS Samsung Spinpoint F1 HD103UJ 1000 Samsung Spinpoint F1 HD753LJ Samsung Spinpoint F1 HD642JJ Samsung Spinpoint F1 HD502IJ Spinpoint F1 RAID Samsung HE103UJ 1000 Class Samsung EcoGreen F1 DT HD103UI 1000 Samsung EcoGreen F2 HD103SI 1000 Samsung EcoGreen F2...
  • Page 41 Via Pelizza da Volpedo, 59 Cinisello Balsamo – MI – Italy info@atlantis-land.com...
