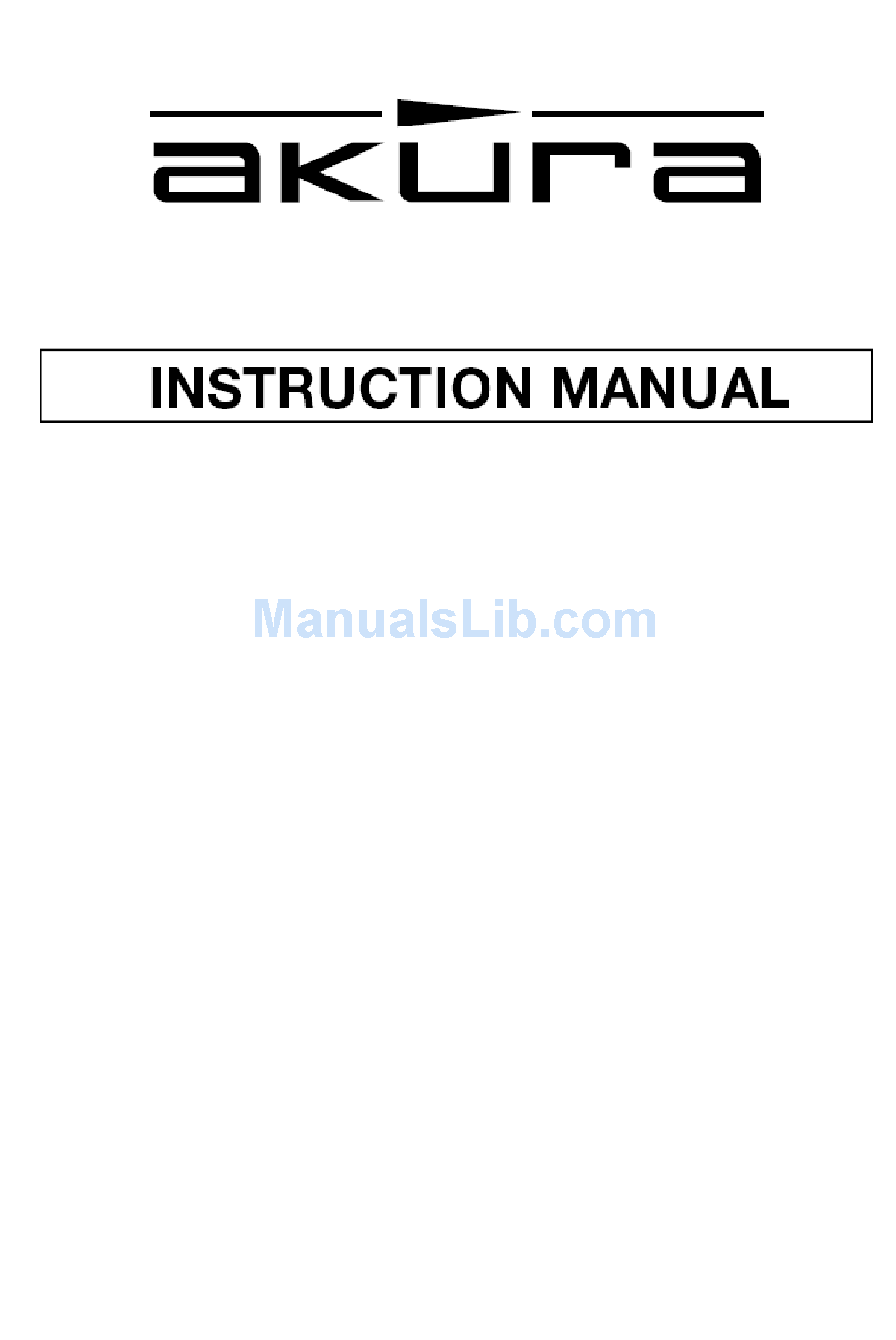

- Page 1 AMTDT3502 HDD Personal Video Recorder Customer Help Line: 01422 263313 Opening Hours: Mon-Fri 8am-8pm, Sat 9am-4pm, Sun 11am-4pm Or visit our website at www.ekey.co.uk...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ------------------------------------------------------------------------- 1 Introduction-------------------------------------------------------------------------------- 2 Safety Information------------------------------------------------------------------------ 3 Remote Control--------------------------------------------------------------------------- 4 Front and Rear panel illustration------------------------------------------------------- 6 Connecting to a Television and Video------------------------------------------------- 7 Connecting to a Television ----------- -------------------------------------------------- 8 Connecting to a Surround Sound System------------------------------------------- 9 Getting Started --------------------------------------------------------------------------- 1 0 Switch on for the first time------------------------------------------------------------ 10 Channel Search------------------------------------------------------------------------ 11... -
Page 3: Introduction
Introduction Thank you for purchasing this product which has been designed and manufactured to give you many years of trouble-free service. About This User Guide This user guide contains all the information you need to know about how to setup and watch available free view Channels using your set top box. What is DVB-T? It works like traditional TV, but because the signals are Digital you need a set top box to convert them. -
Page 4: Safety Information
Safety Information Safety is Important To ensure your safety and the safety of others, please ensure you read the Safety Instructions before you operate this product. Keep this information in a safe place for future reference. Please read all the safety information before using the product. Safety Considerations Position the cables so that they cannot be walked on or pinched by items placed on or against them. -
Page 5: Remote Control
Remote Control Remote Key Function: 1) DTV/VCR Used to switch between the VCR SCART input and the DTV output mode . STANDBY DTV/VCR REC LIST MUTE 2) MUTE Used to turn the sound on or off. 3) P+: Used to change channels. STOP 4) P-: Used to change channels. - Page 6 Installing the Batteries Remove the battery cover from the remote control and put 2xAAA size batteries inside the compartment. The diagram inside the battery compartment shows the correct way to install the batteries. 1.Open the cover 2.Install batteries 3.Close the cover Using the Remote Control To use the remote control, point it towards the front of the digital set top box The remote control has a range of up to 7 metres from the set top box at an angle...
-
Page 7: Front Panel And Rear Panel Illustration
Front Panel and Rear Panel Illustration 1. Front panel DT3506 1) POWER BUTTON: Used to switch the main power of the set top box to on and off. 2) REMOTE CONTROL SENSOR: Used to receive the signal from the remote control. 3) LED DISPLAY: Used to display the channel number and time information and other play states. -
Page 8: Connecting To A Television And Video
TV Aerial 100-240V~ 50/60Hz VIDEO VIDEO R R F F LOOP LOOP R R F F LOOP LOOP SERVICE R R F F R R F F COAXIAL COAXIAL S-VIDEO S-VIDEO THROUGH THROUGH THROUGH THROUGH VCR O O VCR O O TV TUNER TV TUNER PVR TUNER... -
Page 9: Connecting To A Television
Connecting to a Television 100-240V~ 50/60Hz VIDEO COAXIAL S-VIDEO SERVICE AUDIO/VIDEO OUT DIGITAL AUDIO... -
Page 10: Connecting To A Surround Sound System
Connecting to a Surround Sound System 100-240V~ 50/60Hz VIDEO COAXIAL S-VIDEO SERVICE AUDIO/VIDEO OUT DIGITAL AUDIO AUDIO IN Coaxial Digital Amplifier VOLUME INPUT SELECTOR POWER MUTE BYPASS PRO LOGIC 3 STEREO MODE TEST CHANNEL KARAOKE DOWN BASS TREBLE ECHO MIC VOL EXCITE... -
Page 11: Getting Started
Getting Started Switching on for the first time Turn on your TV set and select the corresponding AV input (with the AV key or simular, on the television remote control). Turn on the main power supply to the STB, the indicator on the front of the unit will turn red and then green. -
Page 12: Channel Search
Channel Search Automatic channel scan 1) Press the "MENU" button to enter the main menu of the STB. Channel List Favourite List Channel Search System Setting Timer 2) Press the "UP" or "DOWN" cursor button to select Channel Search 3) Press the "OK" button to enter the sub-menu. 4) Highlight the "Search Type"... -
Page 13: System Setting
System Setting Many aspects of your STB can be set to reflect your circumstances and preference. The System Setting menu is accessed from main menu. A/V Setting First Time Installation System Info Change Pin Code Software Update DTR Setting OSD Setting A/V Setting This menu allows the users to set TV shape, Video Output and OSD Transparency. -
Page 14: First Time Installation
First Time Installation This menu allows the user to delete all existing channels in the STB, and reset the STB to factory default setting. 1). Enter the System Setting menu, press the "UP" or "DOWN" button to highlight the "First Time Installation". 2). -
Page 15: Software Update
3), Enter the old pin code using the numeric buttons(Default pin code is 6666). 4), Press the "UP" or "DOWN" cursor to select "New Pin Code" and enter 4 new numbers with numeric buttons(0~9). 5), Press the "UP"or "DOWN" cursor to select "Enter Again", and enter the new pin code again with numeric buttons(0~9). -
Page 16: Dtr Setting
DTR Setting You can modify the time shift duration, format the hard disk, check the hard disk information or set the auto discard mode here. Time Shift Duration Adjust the time shift duration according to the options: 30/60/90/120 minutes. Format Hard Disk After pressed the OK button, you need input the right PIN code to proceed the format operation. -
Page 17: Channels List
Channels List The Channel List presents a list of all channels found during the channel search. From the Channel List you can watch and listen to the selected channels, delete them from the list or set a password to access the channel. 1), Press the "MENU "... -
Page 18: Favourite List
Favourite List This menu allows the user to store a list of your favourite channels so that you can access them more easily. In this STB, you have five favourite lists to set potentially, each family member can have his own favourite list. Adding channels to favourite list: 1), Press the "MENU"... -
Page 19: Basic Operations
Basic Operations Channel Schedule(EPG) From the channel schedule(EPG,Electronic programme Guide), you can change channels available, check programme information, access one-week programme schedule which details the times and programmes for the next seven days. 1, Press the "EPG" button to enter the Channel Schedule. Channel Schedule 19/11/2004 16:03 The playlist plagiarist is made... -
Page 20: Volume Control
4), Selection by on-screen Channel List: You can also select the desired channel directly from on-screen channel list. This is displayed using the STB's main menu. a), Press the "MENU" button to enter main menu of the STB. b), Press the "UP" or "Down" cursor to select "Channel List". c), Press the "OK"... -
Page 21: Digital Teletext
Digital Teletext Many digital terrestrial television channels not only broadcast pictures and sound for programme but also pages of information on the programmes, the weather, news and many other topics.Some channels are entirely given over to digital teletext and carry no normal TV programme at all. -
Page 22: Record Operations
Record Operations Before using the record operations, please check the two tuner(TV/PVR tuner) connections in connection pages. Watch One Channel While Recording Another The recording will receive the digital TV signal from the PVR tuner and the watching will receive the digital TV signal from TV tuner, this makes it possible to watch one channel while recording another channel. - Page 23 Time-Shifting( Pause Live Recording Have you been interrupted with a phone call or the doorbell while watching live TV programs, inevitably missing out on a crucial scene? Pause and replay live TV by simply pressing the PAUSE button once( In the PVR INFO banner the timeshift will commence, ) and then PLAY button to pick up right where you left off.
-
Page 24: Hard Disc Installation
Hard Disk Installation/ replacement Please note when replacing hard disk (HDD), the hard disk must format before start using (this can be done in the DTR Setting menu). Note: make sure that the main AC power is turn off and all cable is disconnect from this unit while installing/replacing the Hard Disk (HDD). -
Page 25: Help And Advice
Help and Advice Problem Probable cause What to do Mains lead unplugged Check mains lead Standby light not lit Mains fuse blown Check fuse Aerial is disconnected Check aerial lead No signal found Aerial is damaged/misaligned Check aerial Out of digital signal area Check with dealer No picture or sound Viewing incorrect scart output... -
Page 26: Technical Specifications
Technical Specification Power Supply Input Voltage 100-240V~ 50/60Hz. Power Consumption Maximum 15W,Standby 5W. Decoder SD,4:3/16:9 Switchable. Video Formats Audio Format MPEG Layer l & ll,32/44.1/48Khz. Video Output CVBS, RGB, S-Video Connection Fixed Type. Main Power Cable 2 Antenna Input/2 Therefore Output. Tuner 1 for VCR/1 for TV Scart...
