Summary of Contents for Akura ATW-GA2929

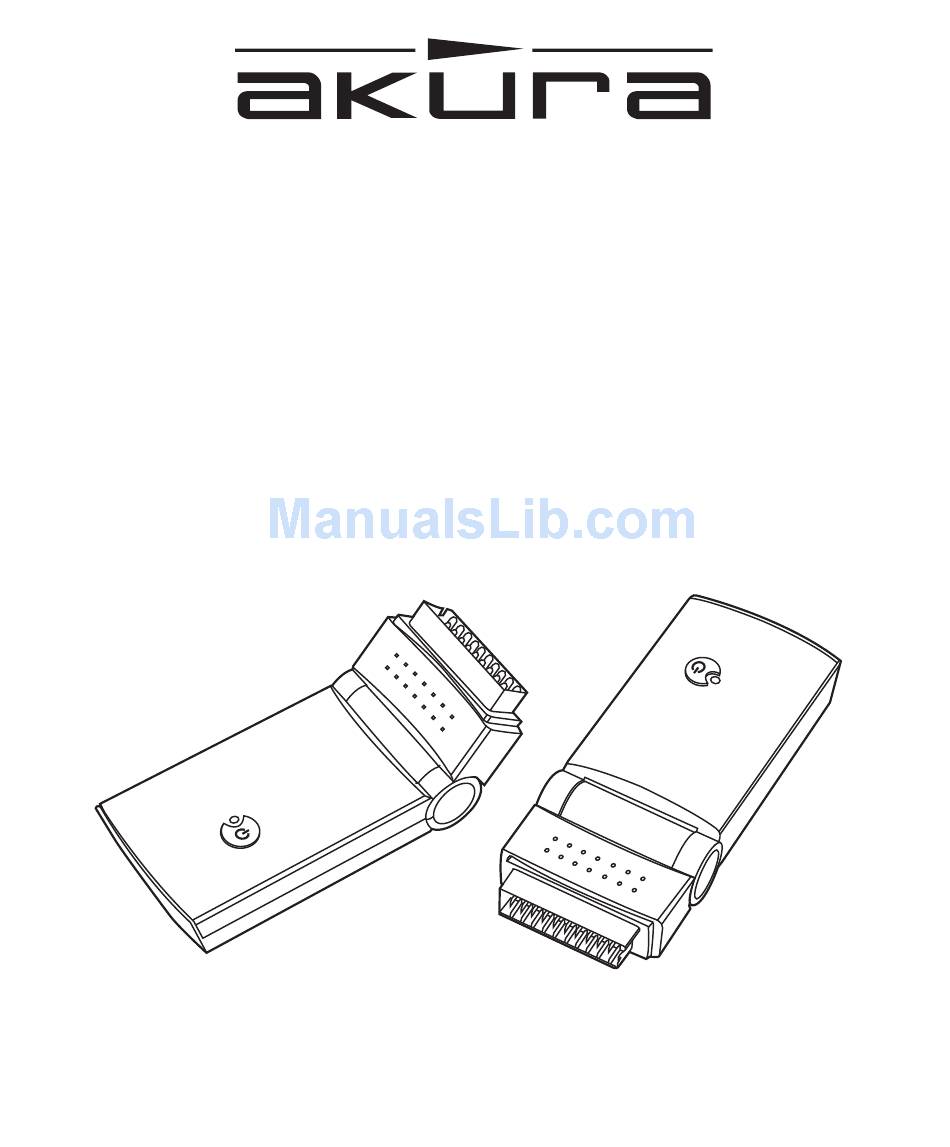

- Page 1 ATW-GA2929 Scart Style Wireless Audio/Video Sender Instruction Manual Customer Help Link:01422 26 33 13 Website:www.ekey.co.uk...
-
Page 3: Safety Instructions
Safety Instructions. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "angerous Voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Product Layout
Connections Fig. 1 Product Layout Receiver/Transmitter Fig. 2 Product Layout Transmitter/Receiver (Fig. 2) 1. Power ON LED 2. Power ON / OFF switch 3. Scart plug 4. IR Sensor 5. IR Mouse 6. IR Sensor / Mouse socket 7. Power Adapter Socket channel 8. - Page 5 Setting up Setting up the Transmitter Connect the Transmitter to your AV source, eg Freeview box,VCR or DVD player A/V Connection RF OUT VIDEO Transmitter Fig. 3 Power Supply Transmitter Fig. 4...
- Page 6 Fine Tuning A/V Component Transmitter Front Fig. 5 Setting up the Receiver Connect the receiver module to the Tv scart socket A/V Connection - for TV with A/V Input Jacks Receiver Fig. 6...
-
Page 7: What You Get
Power Supply Receiver Fig. 7 Remote control of the transmitter from your receiver Receiver Fig. 8 Front What You Get Transmitter with IR Mouse Receiver with IR Sensor Two Power Adapters This User's Manual Note: The transmitter and receiver look very alike. You can find "Transmitter"... -
Page 8: Power Supply
Setting up Before you make the connections: Set the channel switches on the back of the transmitter and receiver to the same channel. Depending on the type of TV you own and the component A/V system (VCR, DVD player, etc.), connection methods will be different. We recommend you refer to the connected A/V component's user's manual for details, then make connections according to the following steps. -
Page 9: Troubleshooting Guide
.3 Remote Control ( Changes the channel of your signal source) 1. Plug the receiver in the TV, and adjust the receiver by rotating orientations until you get the best reception. 2. Position the IR mouse so that your remote control signal can strike the front of the IR mouse. - Page 10 Symptom Possible Cause Remedy Ensure both power adaptors are Leds not lit on Power adaptors not connected connected and the sender and receiver are Sender or receiver turned on Ensure sender and receiver switches ar e Sender and receiver not matched set to same number.
-
Page 11: Specifications
Specifications Transmitter/Receiver A/V Transmit Frequency 2.4 GHz Remote Control Freuency 433.92 MHz AV Signal Range 30 meters (90 feet) clear line of sight Remote Control Signal Range 20 meters (60 feet) clear line of sight Antenna Built-in omni-directional antenna Channel 4 selectable channels A/V mod/demod. - Page 12 Aug,2007 408-000444-00...
