Page 1

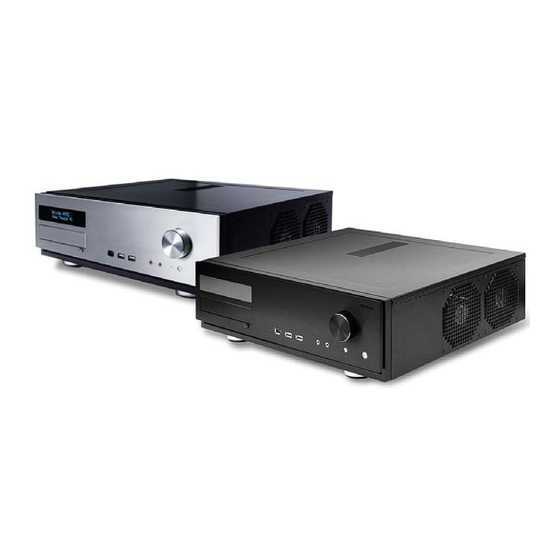

Media Components Fusion 430 /Fusion Black 430 User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...
Page 2
Disclaimer This manual is intended only as a guide for Antec’s Computer Enclosures. For more comprehensive instructions on installing the motherboard and peripherals, please refer to the user’s manuals that come with those components.
The Triple Chamber structure Upon opening the top panel, you will find that the case is divided into three chambers – the power supply chamber, the motherboard chamber and the HDD chamber. This triple chamber structure isolates the heat and noise within each chamber, resulting in much quieter and cooler operation than a traditional desktop case design.
Page 4
Note: Please check the motherboard manual for the USB header pin layout and make sure it matches the table below. If it does not match this Intel® standard, please visit Antec’s web store at http://www.antec.com/StoreFront.bok and search for part number 30095 to order a USB Internal Adapter Cable. This adapter will allow you to connect the front USB to your motherboard on a pin-by-pin basis.
Page 5
FireWire port to an IEEE 1394 add-on card that comes with an external-type IEEE 1394 connector, you will need a FireWire Internal Adapter. To order one, please visit Antec’s web store at http://www.antec.com/StoreFront.bok and search for part number 30031. This adapter will allow you to connect the front IEEE 1394 port to the external-type connector.
Page 6
24-pin ATX main power connector of the power supply. Note: If you choose to swap the included power supply with another power supply, please call Antec Customer Service to purchase a special 24-pin Extender with the 3-pin connector to power the display.
Page 7
Find a 4-pin molex or SATA connector on the power supply and connect it to the power connector on the device. Cooling System The 120mm TriCool™ fans The Fusion 430 comes with two 120mm TriCool™ fans preinstalled at the side of the case inside the motherboard chamber.
Page 8
When used with the CPU Air Guide, fresh air from the rear air intake can be directed to the CPU cooler to enhance the CPU cooling. The CPU Air Guide can be adjusted by adding or removing stacking sections to best suit different motherboard CPU positions.
