American Telecom SL PTG012 Installation Instructions

Telephone and charging station
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

SL PTG012 Telephone and Charging
Station
Installation Instructions
The Ameri*Can Telecom Inc. SL PTG012
Phone and Charging Station is a wall
mount or desktop enclosure designed for
SpectraLink pocket phones and battery
changers. It includes a hinged dust cover
with a key lock and holds up to 12
SpectraLink Phones and 12 battery
chargers.

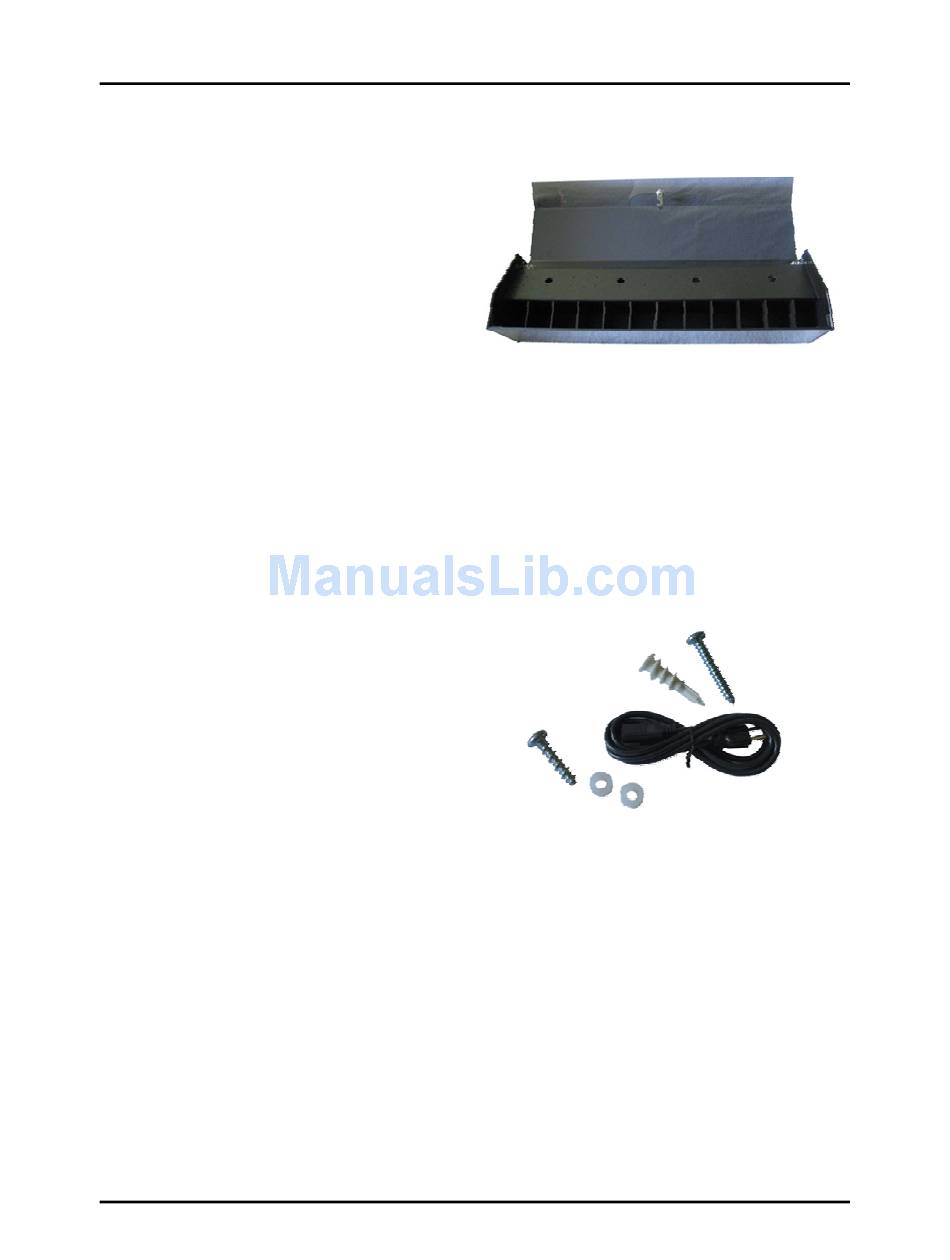

Inventory

Verify that all items listed on the Ameri*Can packing list were included in the shipment
as received from Ameri*Can for this installation. Notify Ameri*Can Telecom promptly
of any discrepancies.
Equipment supplied:
Wall Anchor & Screws
Power Cord
SL PTG012
Charger Mounting h/w

Tools Required

• Measuring Tape, Pencil and Level
• Drill and assorted Drill Bits, including a 1/8" Bit and Safety Glasses
• Assorted Screwdrivers
SL PTG012 Installation Instructions
AMERI*CAN TELECOM INC.
Technical Document
180060-00 and 180059-02 (4 ea.)
170000-02 (1 ea.)
230443-19
180012-00 (20 ea.)
180100-00 (20 ea.)
SL PTG012
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL PTG012 and is the answer not in the manual?

Questions and answers

Summary of Contents for American Telecom SL PTG012

  • Page 1 AMERI*CAN TELECOM INC. Technical Document SL PTG012 Telephone and Charging Station Installation Instructions The Ameri*Can Telecom Inc. SL PTG012 Phone and Charging Station is a wall mount or desktop enclosure designed for SpectraLink pocket phones and battery changers. It includes a hinged dust cover with a key lock and holds up to 12 SpectraLink Phones and 12 battery chargers.
  • Page 2 AMERI*CAN TELECOM INC. Technical Document Charger Installation The SL PTG012 SpectraLink Phone and Charging station is shipped with its power supply and charger regulator boards installed, and with their distribution jacks routed and configured, as illustrated here: SL PTG012, Rear View At the front of the unit: 1.
  • Page 3 AMERI*CAN TELECOM INC. Technical Document 3. Attach each PTQ365 charger to the housing using two (2) nylon spacers (p/n 180100-00) under the charger, and two (2) #6-19 screws (p/n 180012-00) per charger. PTQ365 4. Plug a power supply jack into each charger. 5.
  • Page 4 AMERI*CAN TELECOM INC. Technical Document 2. Position the enclosure on the wall in the location it will be mounted. Ensure that it’s at the appropriate height, and level; mark the position of the four mounting holes, forming a rectangle 26” by 4 3/8”. Refer to the illustration below. Note: If the wall is wallpapered, use a razor to cut the area around the mark before drilling.
  • Page 5 AMERI*CAN TELECOM INC. Technical Document SL PTG012 Installation Instructions Page 5...
