American DJ S-10S User Instructions

American DJ
S-10S™
Single Channel Strobe Controller
Thank you for purchasing this
American DJ product. For your con-
®
venience this strobe controller has
been tested and is ready to be used,
there is no assembly required.
Please read and understand the fol-
lowing instructions completely
before attempting installation or
using your new unit.
Caution! This apparatus must be
grounded. To prevent fire or electri-
cal shock, do not expose this appara-
tus under a high temperature or
humid area. There are no user ser-
viceable parts inside please do not
attempt any type of ser vice or
repairs.
For all service issues please refer to
your authorized local American DJ
dealer

Introduction:

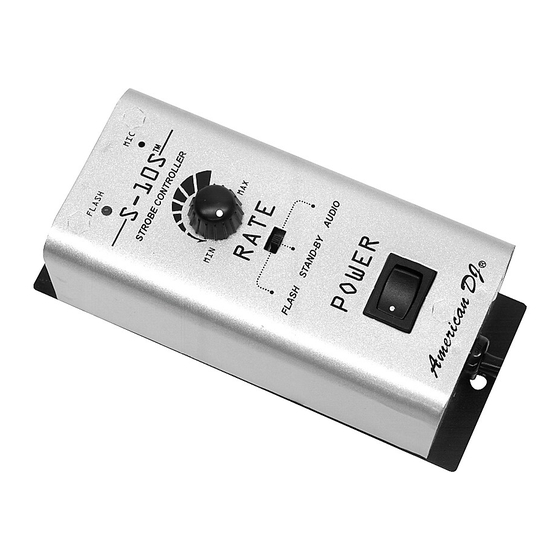

The S-10S™ is a single channel strobe
controller. It features three operating condi-
tions; Stand By (black out), Flash button,
(manual), and Audio (sound active). This con-
troller also features a Variable Speed Control
Knob. The S-10S™ will control up to 6
American DJ Super Strobe™, S150™, S-
®
100A™, and SNAPSHOT™strobes with 1/4"
mono cable.
American DJ Supply
©
User Instructions
®

Operating Instructions:

1. Be sure the input power matches
2. Turn the power switch to on
3. Select your desire control mode
Flash Mode will allow you to manually adjust
the rate of the flash by turning the rate knob
in either a clockwise or counter-clockwise
position (Clockwise will increase the flash
rate and counterclockwise will decrease the
flash rate.
Stand-By mode is basically a black out mode
in this setting the strobe will not flash at all.
Audio mode will flash the strobe according to
beat detected by the controllers built-in
microphone.

SPECIFICATIONS:

Power:
Weight: 2 lbs.
Size:
- Los Angeles, Ca. 90058 - www.americandj.com - S-10S™
®
that of your unit and plug your unit
in.
position.
(Flash/Stand-By/Audio)
Model: S-10S™
110V-130V/60Hz
6" x 2.5" x 2"
Sound Active
