GE PGB975SEMSS - 30 Inch Double Oven Range Dimensions And Installation Information

47
"

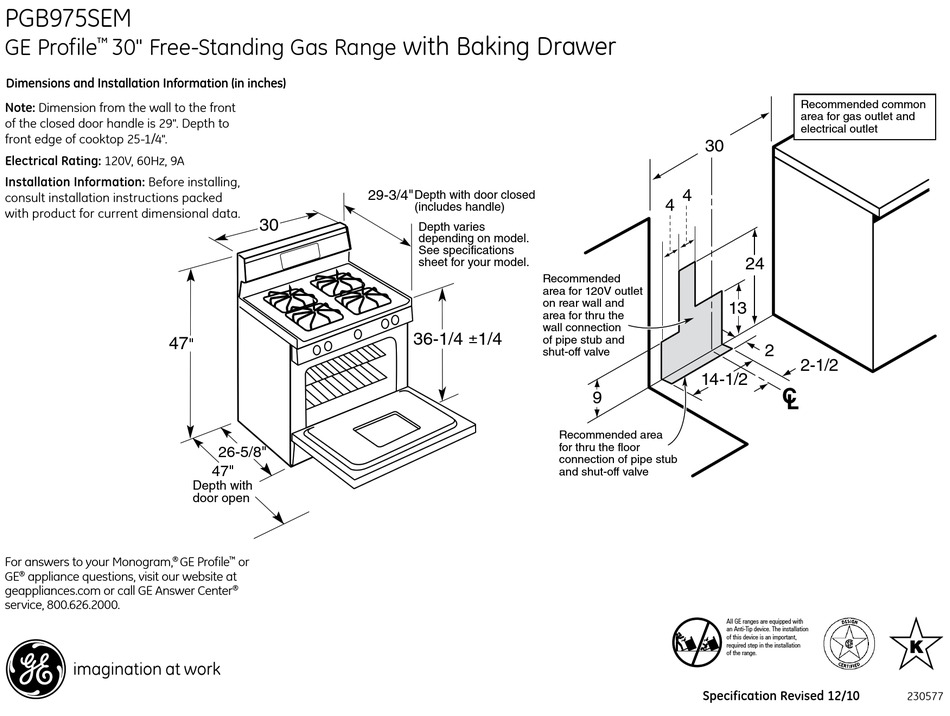

PGB975SEM
GE Profile 30" Free-Standing Gas Range
™
Dimensions and Installation Information (in inches)
Note: Dimension from the wall to the front
of the closed door handle is 29". Depth to
front edge of cooktop 25-1/4".
26-5/8"
Electrical Rating: 120V, 60Hz, 9A
47"
Installation Information: Before installing, Depth with
consult installation instructions packed door open
with product for current dimensional data.
47
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
geappliances.com or call GE Answer Center
service, 800.626.2000.
29-3/4"
30
"
26-5/8"
47"
Depth with
door open
or
™
®
36-1/4 ± 1/4
with Baking Drawer
Depth with door closed
(includes handle)
Depth varies
depending on model.
See specifications
sheet for your model.
Recommended
area for 120V outlet
on rear wall and
area for thru the
wall connection
36-1/4 ± 1/4
of pipe stub and
shut-off valve
Recommended area
for thru the floor
connection of pipe stub
and shut-off valve
Recommended
area for 120V outlet
on rear wall and
area for thru the
wall connection
of pipe stub and
shut-off valve
9
Recommended area
for thru the floor
connection of pipe stub
and shut-off valve
30
4
4
24
13
2
14-1/2
9
Recommended common
area for gas outlet and
electrical outlet
30
4
4
24
13
2
All GE ranges are equipped with
an Anti-Tip device. The installation
2-1/2
of this device is an important,
14-1/2
required step in the installation
of the range.
Specification Revised 12/10
Recommended common
area for gas outlet and
electrical outlet
2-1/2
230577
