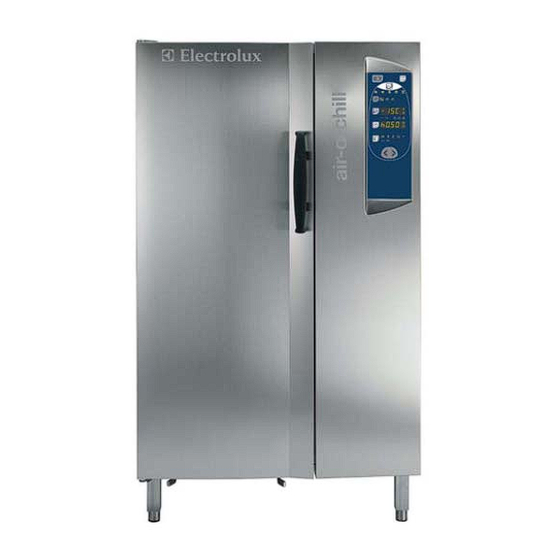

Blast Chiller-Freezer 201 (220 lbs.)
air-o-chill
®
Blast Chiller-Freezer 201 (220 lbs.)
727153 (AOFP201RRU) Blast Chiller-Freezer 201 (220 lbs.)
208 V/3p/60Hz – 20A
Short Form Specification
Item No. ___________________________________
Unit to be Electrolux air-o-chill
®
Blast Chiller-Freezer 201. Chilling load
capacity to be 220 lbs. (100 kg) from 160 °F to 39 °F in 90', freezing load
capacity to be 187 lbs. (85 kg) from 160 °F to 0 °F in max 240' on up to
20 Steam table pans. Unit shall feature Micro-processor controlled Soft-
chilling, Hard-chilling and Blast-freezing cycles. At the end of each Blast-
chilling- or freezing cycle the unit shall automatically activate a holding
cycle. Defrost cycle is automatically and intelligently activated: ice build
up on evaporator is automatically detected and defrost activated to
maximize performance efficiency. Manual activation of defrost cycle is
possible. Unit does not have any heat limitation and can accept food
directly from oven at cooking temperature. The unit features both time
and core temperature controlled chilling cycles. One core temperature
probe is provided as standard, up to three are available. All 304 stainless
steel construction. Requires remote refrigeration (17 kW or 6.0 hp).
High density CFC and HCFC cyclopentane insulation material.
EKIS, pc-controlled HACCP monitoring software package available at
additional cost.
Half day chef training included.
Covered by Electrolux Platinum Star® Service Program two-year parts
and one-year labor warranty, installation start-up and performance check-
up after one year from installation.
Approval: ___________________________________________
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
ITEM # _______________________________________________
MODEL # _____________________________________________
PROJECT NAME # ______________________________________
air-o-chill
®
SIS # _________________________________________________
AIA # _________________________________________________

Main features

• Load capacity: 220 lbs (100 kg) in chilling, 187 lbs (85 kg) in freezing.
• Will chill product from160 °F to 39 °F or below in less than 90 minutes.
• Will freeze product from 160 °F to 0 °F or below in less than 240 minutes.
• Easy-to-use, electronic control panel. Fully programmable.
• Time or (automatic) core temperature controlled operation.
• Cruise control (PATENT PENDING): self-adjusting probe-driven chilling.
• Soft chill, Hard Chill and Blast Freeze modes.
• Auto hold at temperature reached at end of blast chilling or freezing cycle.
• Turbo cooling: non-stop mode (working temperature: from 39 to -32 °F).
• Pre-programmed ice cream hardening cycles.
• Standard equipped with one core temperature probe, can be ordered either with
up to three core temperature probes or with one 3-sensor probe .
• Automatic Intelligent and manual defrost modes.
• Display: large LED for temperature and time/core temperature read out.
• Audible alarms and visual indicators for food safety (HACCP) issues and separate
audible and visual for unit malfunctions.
• During cycle, temperature and time is monitored.
• EKIS software (pc-based HACCP monitoring) requires optional board.
• On-board HACCP monitoring capable.
• Electrolux Platinum Star® Service package included:
• 2-year parts, 1-year labor warranty, 5-year compressor warranty.
• Start-up install check.
• Equipment check-up after 12 month from installation.
• Half day chef training session.
Construction
• Magnetic, easy-to-remove heated gaskets.
• Standard equipped with 63, adjustable legs.
• All 304 stainless steel construction.
• Seamless hygienic chilling chamber with all rounded corners for easy cleaning.
• Coated evaporator fins.
• Swing hinged front panel for easy service access to main components.
• Requires remote refrigeration (17 kW or 6.0 hp), supplied by third party.
Included Accessories
• One 3 sensor probe for air-o-chill®

Installation Accessories

• 1 single sensor probe for air-o-chill®
• 2 single sensor probe for air-o-chill®
• One 3 sensor probe for air-o-chill®
• External printer for HACCP
• Electronic board for HACCP through PC Network
Handling Accessories
• One 20 rack trolley for air-o-system® 201 (2.5" standard pitch) PNC 922007
• One 16 rack trolley for air-o-system® 201 (3" increased pitch)

Optional Accessories

• Single 304 stainless steel grid (12"x 20")
• Single 304 stainless steel full-size grid (21" x 26")
Electrolux Professional, Inc.
www.electroluxusa.com/professional
PNC 880088
PNC 880089
PNC 880096
PNC 880088
PNC 880048
PNC 860183
PNC 922010
PNC 922062
PNC 922076
