Summary of Contents for Acumen Ergo Basix

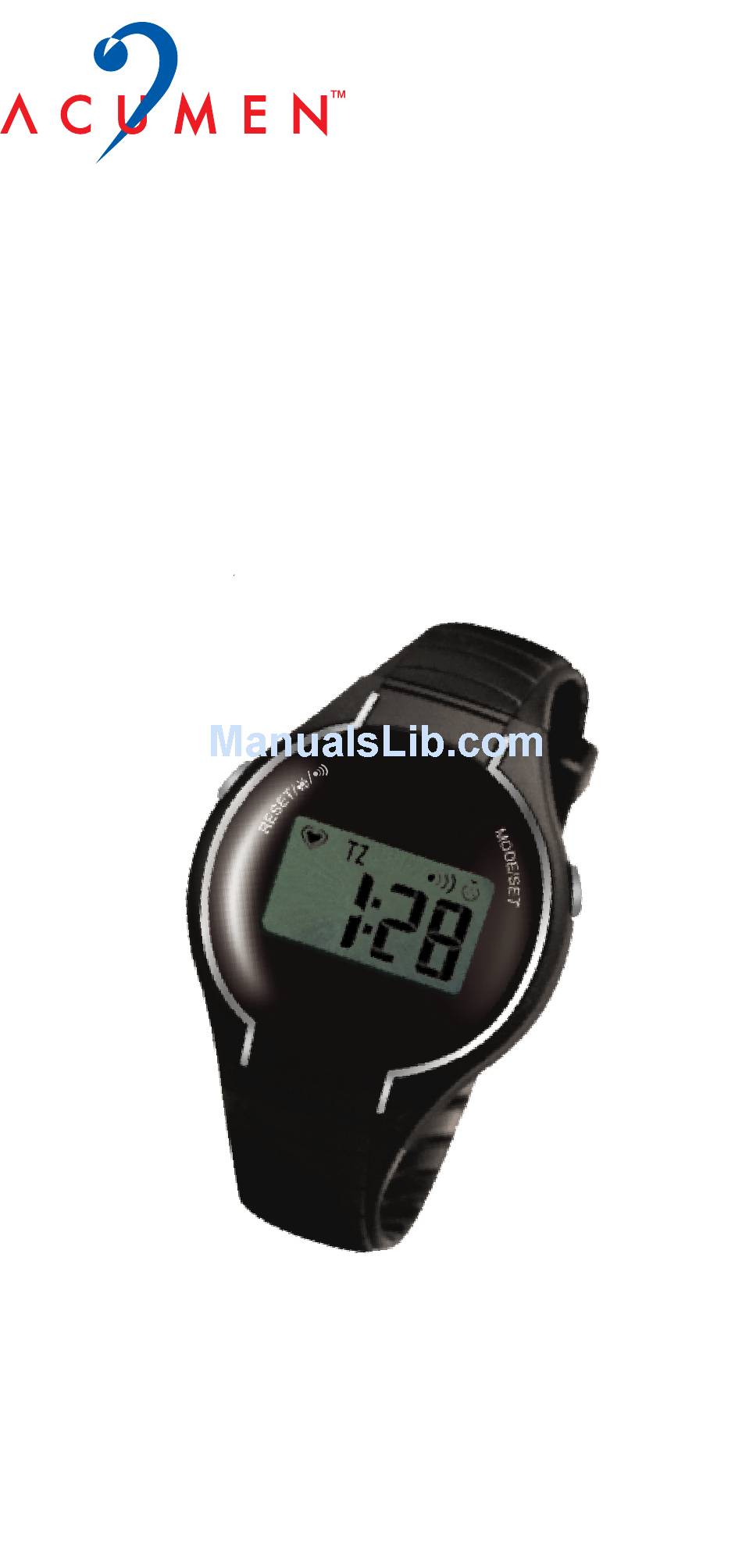

- Page 1 Ergo Basix Performance Accelerator...
-
Page 2: Table Of Contents
Table of Contents Warning ............Mission Statement........... ERGO Basix Features........What's in Your Package ........Operating Your ERGO Basix......Attaching Your Heart Rate Monitor ....Buttons and Functions........Modes of Operation ....................Time Mode ..........Heart Rate Mode ....... -
Page 3: Mission Statement
For most individuals as little as 20 minutes in your target heart rate zone each session is enough to achieve substantial health improvements. The Acumen ERGO Basix will act as your personal coach and guide you to your fitness goals more effectively. MISSION STATEMENT... -
Page 4: Ergo Basix Features
ERGO BASIX FEATURES Conductive Fabric Heart Rate Strap Backlight with SmartLite Shock Resistant Design Water Resistant to 30 Meters ECG Accurate Heart Rate EZ-Set Target Zone Automatic Programming Pat. NO.US6345197B1 with Audible & Visual Alarm Indicators 12/24 hr. Time Display with Daily Alarm In Zone Goal Count Down Timer (0-60minutes) Calorie Counter WHAT'S IN YOUR PACKAGE... -
Page 6: Operating Your Ergo Basix
OPERATING YOUR ERGO BASIX I. Attaching Your Heart Rate Monitor 1.) Attach the transmitter belt to your chest Step 1: Moisten each of the two conductive fabrics of the Chest Belt. Step 2: Insert the two Pins at the back of the transmitter into the two mounting holes on the Conductive Fabric Chest Belt. -
Page 7: Buttons And Functions
Buttons and Functions MODE / SETButton MODE RESET/ Press momentarily to c h a n g e /SET modes; toproceed to the next item in the setting mode. Press and hold to enter or exit the setting mode. RESET/ Button - Press momentarily to activate the night light for 3 seconds;... -
Page 8: Time Mode
Time Mode The watch firstly enter Time Mode when turned on. Setting the time 1. From Time Mode press and hold MODE/SET button to enter the setting mode. 2. Hour (blinking) RESET/ / - Press buton to adjust the value. - Press MODE/SET button to proceed to the next item. -
Page 9: Heart Rate Mode
Heart Rate Mode From Time Mode press MODE/SET button once to go to Heart Rate Mode and begin your exercise. ‘‘ ’’ icon indicates the heart rate circuit is on. If your transmitter is correctly attached, the clock icon should begin to blink and your current heart rate in beats per minute will come up on the display. -
Page 10: In-Zone Goal Countdown Mode
4. Upper Target Zone Limit (blinking) RESET/ / - Press buton to adjust the value. - Press MODE/SET button to proceed to the next item. 5. Lower Target Zone Limit (blinking) RESET/ / - Press buton to adjust the value. - Press MODE/SET button to proceed to the next item. -
Page 11: Calorie Mode
Calorie Mode From Time Mode, press MODE/ SET button 3 times to enter Calorie Mode. The calorie counter automatically(and only) activates when the watch is receiving the heart rate signals. To clear the calories , simply press and hold button in the Calorie Mode. If not clear, the RESET/ calories consumed in the next exercise will add up. -
Page 12: Battery Replacement
The Watch Battery Replacement We recommend that you should take it to a local jewelry store or an authorized Acumen service center in order to guarantee that it will maintain its water resistance. Improper battery replacement or service will void the warranty. If you... -
Page 13: General Precautions
Chest Transmitter Battery Replacement Step 1: Remove the transmitter from the belt.(Fig.1) Step 2: Use a coin to unlock the battery door, and then replace the old battery inside with a new one. (Fig.2) Step 3: Lock the battery door firmly into place making sure the O-ring seal does not get pinched or distorted. -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS Shock Resistance Shock Resistant Design Water Resistance 98 feet (or 30 meters) Not intended for diving Operating Temperature 32 F to 122 F (0 C to 50 C) Battery Type Heart Rate transmitter: Lithium CR2032 Watch: Lithium CR2032 Battery Life Chest transmitter: Approx. -
Page 15: Technical Display Guide
TECHNICAL DISPLAY GUIDE Display Items Default Setting Range 8 AM / 12 Hr. * AM & PM indicators Time shown only in the Setting 12/24 hr. clock Mode. Alarm Time 8 AM/ OFF ON/OFF 7 - 99 Heart Rate Display 20 - 250 bpm TZ Alarm ON/OFF... -
Page 16: Warranty
During this one-yeart period, these defects will be repaired or the product will be replaced by Acumen Inc. at its sole discretion without charge. This warranty covers normal consumer usage and does not cover... -
Page 17: Service & Repair
Enclose the date of purchase (or receipt as a gift). d. An explanation of the malfunction or reason for return. e. Seven dollars and fifty cents ($7.50) Check or Money Order payable to Acumen Inc. for return postage and handling. To ensure prompt “In warranty” service, be sure to include proof of the date of purchase.
