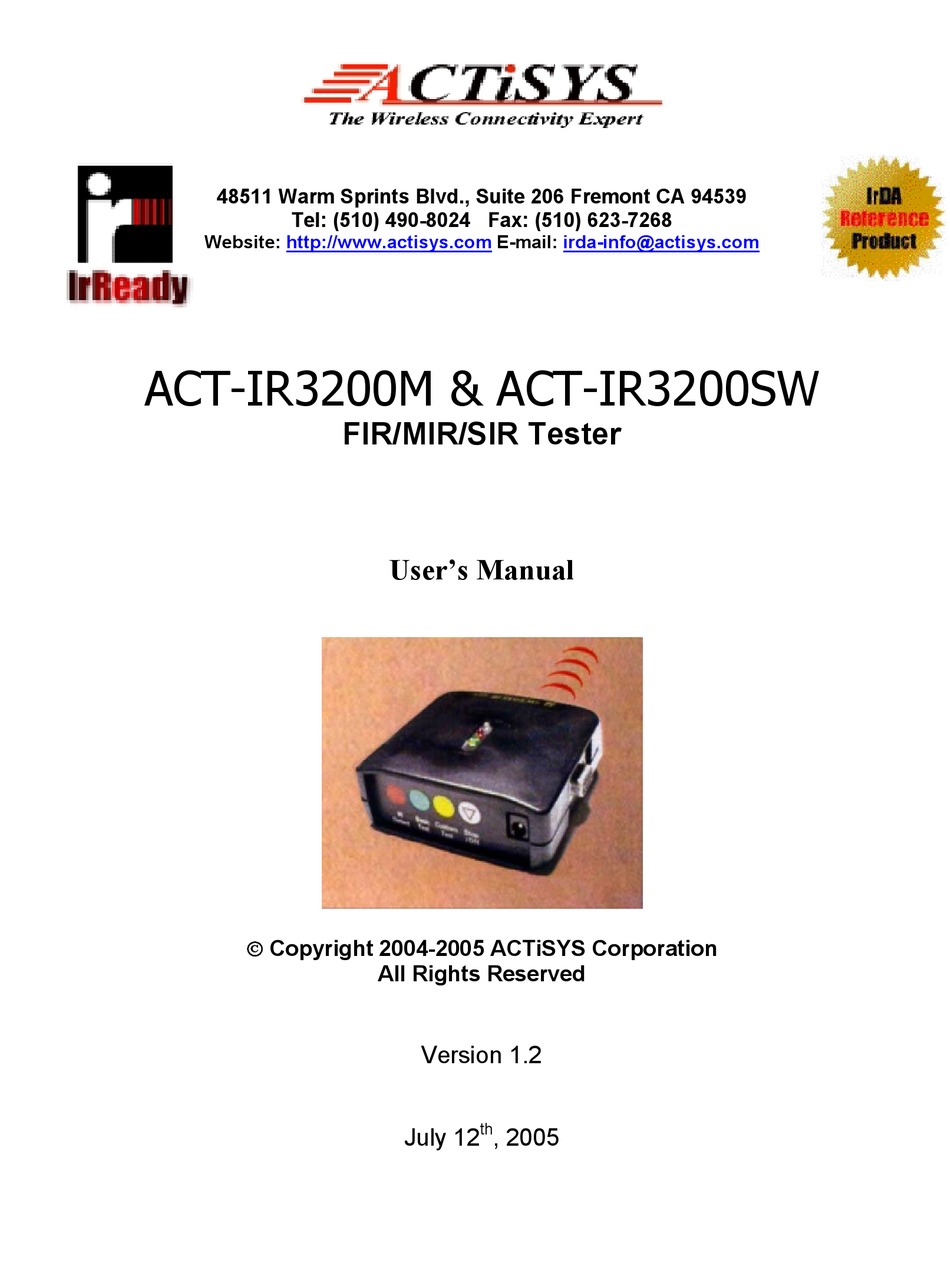

ACT-IR3200M & ACT-IR3200SW
FIR/MIR/SIR Tester
User's Manual
 Copyright 2004-2005 ACTiSYS Corporation
All Rights Reserved
Version 1.2
th
July 12
, 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACT-IR3200M and is the answer not in the manual?

Questions and answers

Related Manuals for ACTiSYS ACT-IR3200M

Summary of Contents for ACTiSYS ACT-IR3200M

  • Page 1 48511 Warm Sprints Blvd., Suite 206 Fremont CA 94539 Tel: (510) 490-8024 Fax: (510) 623-7268 Website: http://www.actisys.com E-mail: irda-info@actisys.com ACT-IR3200M & ACT-IR3200SW FIR/MIR/SIR Tester User’s Manual  Copyright 2004-2005 ACTiSYS Corporation All Rights Reserved Version 1.2 July 12 , 2005...

  • Page 2: Table Of Contents

    I) Validate all supported speeds and the maximum frame size of test frame..22 II) Initial BER Test..................... 22 III) Fine BER Test...................... 22 10) WARRANTY INFORMATION...............23 11) CONTACT INFORMATION ................24  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005 Version 1.2...

  • Page 3: Revision History

    07/12/2005 Negotiation Parameter and Hint Byte (Win 98) ACTiSYS reserves the right to make changes without further notice to any products herein to improve reliability, function or design. ACTiSYS does not assume any liability arising out of the application or use of any product or circuit described herein ...

  • Page 4: Installation For Act-Ir3200Sw Software

    ACT-IR3200SW User’s Manual 1) INSTALLATION FOR ACT-IR3200SW SOFTWARE Following is the installation instruction for ACTiSYS-IR3200SW under Windows 2000 Note: This program supports Windows 98/Me/2000/XP. If previous version of the software is already installed in the target machine, please uninstall before proceeding.
  • Page 5 ACT-IR3200SW User’s Manual 3. Press the Browse button, if you wan the change the location. Press Next button to continue 4. Change the Program folder if required, Press Next to proceed  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005...
  • Page 6 The Wireless Connectivity Expert ACT-IR3200SW User’s Manual 5. Then, setup wizard will install the application and finally confirms by the following screen  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005 Version 1.2...

  • Page 7: Un-Installation For Act-Ir3200Sw Software

    ACT-IR3200SW User’s Manual 2) UN-INSTALLATION FOR ACT-IR3200SW SOFTWARE Following is the un-installation instruction for ACT-IR3200SW software under Windows 2000 1. Open the Control Panel and select Add/Remove Programs.  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005 Version 1.2...
  • Page 8 The Wireless Connectivity Expert ACT-IR3200SW User’s Manual 2. Select ACTiSYS –IR3200SW and press Change/Remove 3. Select Remove Option and pres s Next to continue un-installation  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005 Version 1.2...
  • Page 9 The Wireless Connectivity Expert ACT-IR3200SW User’s Manual 4. Un-install wizard get confirmation and automatically remove ACT-IR3200SW and all its components  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005 Version 1.2...

  • Page 10: Application Guide

    After successfully completing the installation, now press the shortcut link in the program menu. 4) MENUS Configuration Communication Setting Check Device Sound Test Cycle Configuring Test Cycle Testing IR Detect Basic Test Custom Test About Quit  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005 Version 1.2...
  • Page 11 ACT-IR3200SW User’s Manual INTRODUCTION IR3200SW is a user interface of the ACTiSYS Handheld Tester ACT IR3200M for writing customer test scripts and monitoring the test. It runs under Windows. IR3200M is a FIR/MIR/SIR Handheld Tester for testing IrDA devices. It uses standard IrDA procedures to test IrDA-compliant devices.

  • Page 12: A) Configuration

    This option allows the user to set Sound ON/OFF in the Device IV) TEST CYCLE This option allows the user to set the number of Test Cycle(0 – 10,000). Zero indicates infinite number of test.  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005...

  • Page 13: V) Configuring Custom Test

    Insert : Insert the Test item in to the Table Update : Update/Modify the selected Test Item Open Script : Allow the user open the existing Test Script from the System  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005...
  • Page 14 Upload : Upload the Script from the ACT-IR3200 Handheld device Download : Downloads the Script in to the ACT-IR3200 Handheld device Restore : Reset the Custom Test to Factory defaults Exit : Exit from this Option  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005...
  • Page 15 1.152 Mbps (MIR) Random 0.576 Mbps (MIR) Random 115.2 Kbps (SIR) Random 57.6 Kbps (SIR) Random 38.4 Kbps (SIR) Random 19.2 Kbps (SIR) Random 9.6 Kbps (SIR) Random  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005 Version 1.2...

  • Page 16: B) Testing

    Start : Start the Basic Test. Number of cycle is based on the Test Cycle Settings. Stop : To Stop the Test Cycle Pause : To Pause the Test Temporarily  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005...

  • Page 17: Iii) Custom Test

    Stop : To Stop the Test Cycle Pause : To Pause the Test Temporarily Continue : To Continue the Test Cycle Exit : To exit from this option  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005 Version 1.2...

  • Page 18: C) About

    The Wireless Connectivity Expert ACT-IR3200SW User’s Manual C) ABOUT Gives information about the Application and other Contact Information D) QUIT Quit from the Application  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005 Version 1.2...

  • Page 19: Test Script And Parameters

    Number of cycles: 0 - 10,000. 0 means no limit. The default is 2. Cycle: have sent and received all test frames with the defined parameters, such as speed, frame size, number of frames, data pattern.  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005 Version 1.2...

  • Page 20: The Meaning Of Test Results And Error Codes

    Check the basic IrLAP layer implement, such as Discovery (XID), Negotiate (SNRM), Data sending / receiving at different speed (FIR/MIR/SIR), FCS (Frame Check Sequence) implements, speed support and changing and etc.  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005...

  • Page 21: Ber Test

    DUT side. • The Tester (Test Reference station) is a PC with IrDA hardware of controlled IR emission intensity (e.g. ACTiSYS IR2000B/L) and a special test software (e.g. ACTiSYS ACT-IR9003SW), but not stack testing. Tester always plays Primary role. •...

  • Page 22: B) Test Items

    = 1024 bytes, number of frames = 10, cycles = 100 e.g. 1M bits (at 9.6k, 19.2k) = 128 bytes * 10 frames x 100 cycles frame size = 128 bytes, number of frames = 10, cycles = 100  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005 Version 1.2...

  • Page 23: Warranty Information

    ACT-IR3200SW User’s Manual 10) WARRANTY INFORMATION ACTiSYS Corporation warrants to the first consumer purchaser, for a period of 1 year from the date of purchase, that this wireless interface (The Product) will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof at no charge to the purchaser for parts or for labor.

  • Page 24: Contact Information

    ACT-IR3200SW User’s Manual 11) CONTACT INFORMATION ACTiSYS Corporation. 48511 Warm Springs Blvd, Suite 206 Fremont, CA 94539, USA TEL: (510) 490-8024, FAX: (510) 263-7268 E-Mail: irda-info@actisys.com Web: www.actisys.com  Copyright 2004-2005 ACTiSYS Corp. Page July 12 , 2005 Version 1.2...
