Summary of Contents for TRENDnet TEG-ECSFP

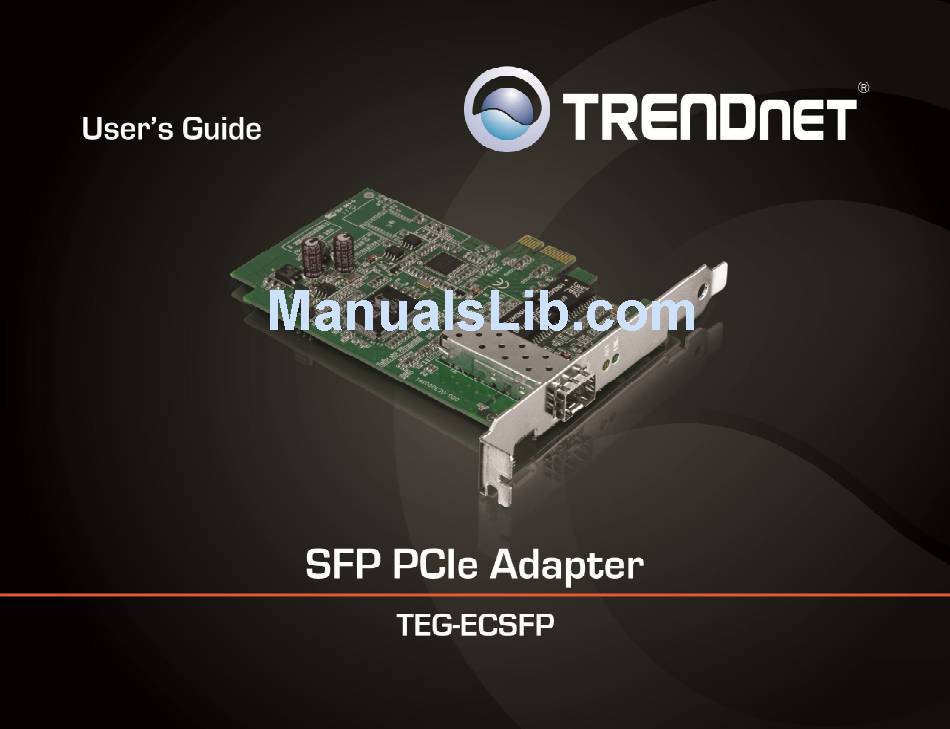

  • Page 1 Cover Page TRENDnet User’s Guide...

  • Page 2: Table Of Contents

    Driver -> Advanced Setting ................10 Diagnostics ......................11 Diagnostic -> Send and Receive ................. 11 Statistics ......................11 Cable ......................... 11 Wake On LAN ....................12 Technical Specifications ................. 12 Troubleshooting..................13 © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 3: Product Overview

    Product Overview Features The SFP PCIe Adapter, model TEG-ECSFP, is a Gigabit fiber network adapter which is compatible with standard SFP modules and PCI Express slots. Full-Duplex technology generates data rates of up to 2 Gbps over a motherboard’s high- speed PCI Express Bus architecture.

  • Page 4: Product Hardware Features

    Mini-GBIC (SFP) Slot: Connect mini-GBIC module into the mini-GBIC (SFP) slot.  LED Indicators  LEDs Status Indication Steady A valid network connection established. (green) (Link) No network connection. Blinking Transmitting or receiving data. (amber) (Activity ) No activity. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 5: Installation - Hardware

    Make sure that you have one end (TX) of the fiber cable connects to the TX port of the TEG-ECSFP and have the other end of the (TX) connects to the fiber’s network device’s RX port as example showed below.
  • Page 6 4. Turn on the computer 5. Windows will automatic install the driver. 6. Check the LNK (link) LED on the TEG-ECSFP. The LNK LED will be steady on to indicate the Network connection is established. TEG-ECSFP -> mini-GBIC -> Switch with mini-GBIC Slot...

  • Page 7: Cabling Requirements

    ECSFP, depending on what mini-GBIC module that you use with the TEG-ECSFP. You The CD-ROM includes the latest drivers for TEG-ECSFP. It is highly recommend that you may also choose the proper fiber cable that suitable for your network usage.
  • Page 8 TEG-ECSFP TRENDnet User’s Guide 2. Click Install Drivers 4. Click Next 3. Click Next 5. Click Finish © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 9 Windows Server 2003 / XP 3. Click Install 1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the Auto-Run program then click Install Drivers 4. Click Finish 2. Click Next © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 10: Diagnostic Utility

    Information, VLAN ID settings, Driver property settings, Diagnostics function, Statistics, Cable analysis, and Wake On LAN function. 1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the Auto-Run program. 3. Click Next. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 11 6. The diagnostic utility will automatically pop up after the installation has finished. 7. You can go to Programs  Realtek  Realtek Ethernet Diagnostic Utility to launch the Diagnostics Utility manually. 5. Wait while the Diagnostic Utility installs on your computer. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 12: Configuration Of Diagnostic Utility

    This page displays working parameters for this network adapter. User can modify these parameters here. VLAN This page shows information about VLANs on current selected network adapter. User can add or remove VLAN here. The user can change the VLAN ID of existing VLAN. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 13: Diagnostics

    Two computers with adapters in the same LAN can perform send & receive experiment This page estimates the length of the network (RJ-45) cable that is connected to the with broadcast packet here. network adapter. This feature is not supported on TEG-ECSFP. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 14: Wake On Lan

    117 x 124 x 85 mm (4.6 x 4.9 x 3.3 in.) Weight 65 g (2.4 oz) Temperature Operating: 0°C ~ 45°C (32°F ~ 113°F) Storage: -10°C ~ 70°C (14°F ~ 158°F) Max. 95% (non-condensing) Humidity Certifications CE, FCC © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 15: Troubleshooting

    PCIe slot. 2. Windows recognizes my new hardware, but I’m unable to connect to my Network. What should I do? Make sure that the network device that is connected to the TEG-ECSFP  is Gigabit.

  • Page 16: Limited Warranty

    USA are responsible for custom charges, including but not Go to http://www.trendnet.com/gpl http://www.trendnet.com Download section limited to, duty, tax, and other fees. and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 17 Limited Warranty TRENDnet User’s Guide These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go http://www.gnu.org/licenses/gpl.txt http://www.gnu.org/licenses/lgpl.txt specific terms of each license. V1.0R / 10.05.2012...
