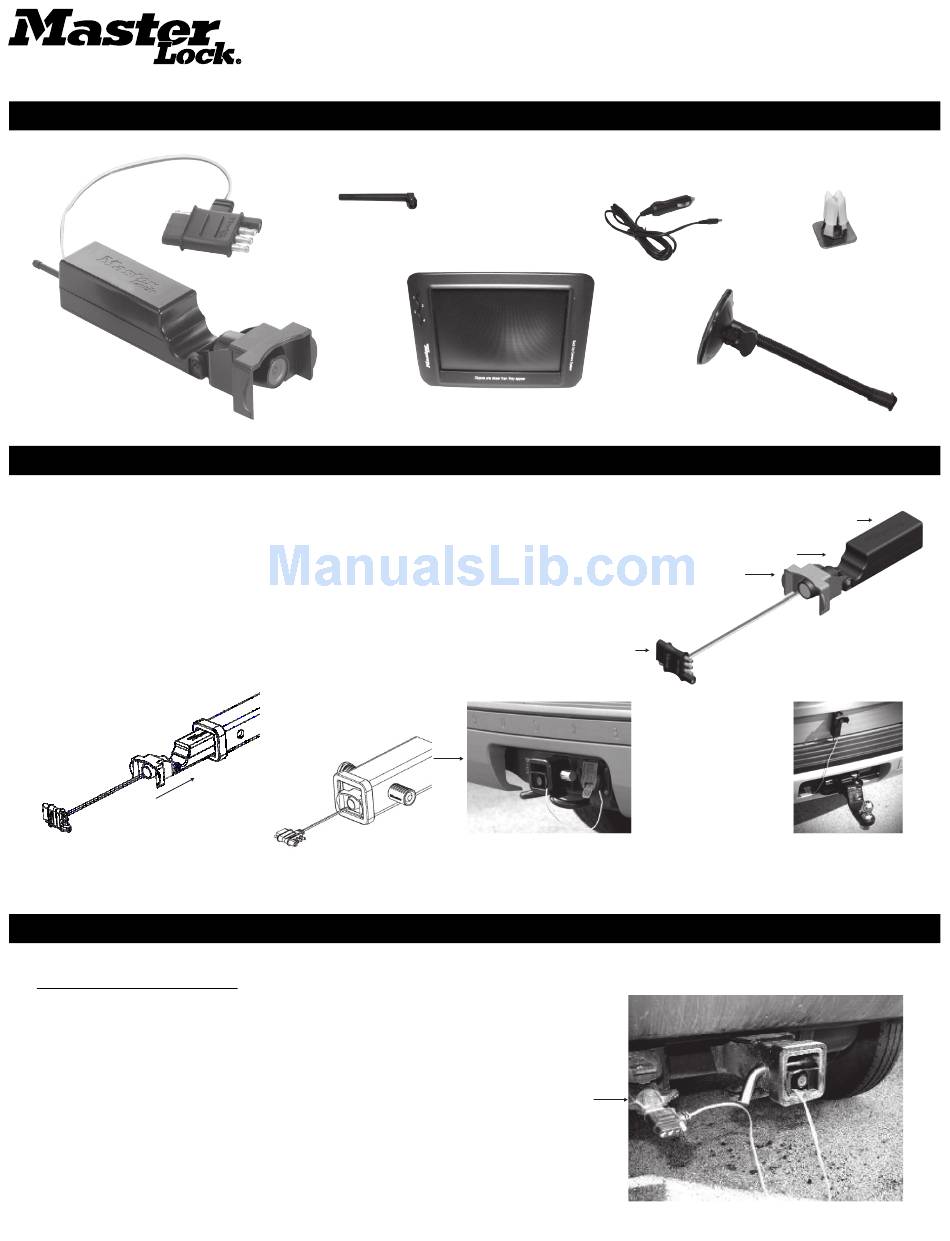

Master Lock Datsen 4843 Installation Instructions

Hardware and Components Included:
Camera with
Guide/Hood (1)
Mounting the Camera:
The camera has two basic mounting options:
(figure 1) can be mounted inside a 1 ¼" (figure 2) or 2" (figure 3)
1. The camera
hitch receiver tube. Slide the camera assembly into the hitch tube. The magnet
in the camera base will hold it securely in place, however the plastic guide on the
camera bracket will help line the assembly up with the hitch pin opening and allow
a standard or locking hitch pin to be used for additional security.
2. The camera can also be mounted to any metal surface using the magnetic base.
The soft pads on the base will prevent sliding or scratching and the camera bracket can
pivot up to 90° to allow the field of view to be adjusted.
Figure 2
1-1/4" Tube
Connecting the Camera:
CAMERA POWER CONNECTION
The camera is powered by plugging the camera connector into the vehicle's towing plug.
The camera has a 4 position connector which will attach directly to many vehicles and
has a pass-though design that will allow it to be plugged between the vehicle and trailer.
Some vehicles may need a 7 position to 4 position adapter (figure 5) which is not included.
NOTE: A commonly available 4 position tow wire extension (not included) will allow the
camera to be mounted farther away from the vehicle plug for gooseneck or fifth wheel
trailer hitching up applications.
Notice: Depending on the make/model of the vehicle the running lights or headlights
may need to be turned on to power up the vehicle's tow plug.
Wireless Antenna (1)
Monitor (1)
(figure 4)
Figure 3
2" Tube
4843DATSEN Back-Up Camera Instructions
Power Cable (1)
Transmitter Housing
Guide/Hood
Pass thru/T-connector
Figure 5
7 Position
to 4 Position
Adapter
Shown
Vent Clip (1)
Flexible Mounting Arm
w/ Suction Cup Base (1)
Figure 1 Antenna
Figure 4
