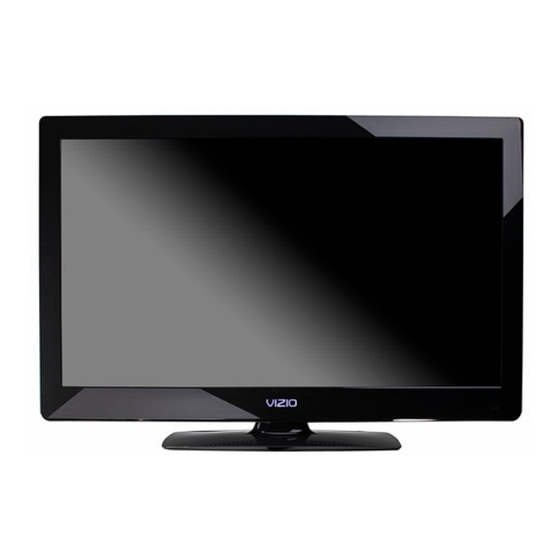

32" CLASS RAZOR LED
LCD HDTV
™
E322MV – user manual

Advertisement

Table of Contents
loading

Related Manuals for Vizio E322MV

Summary of Contents for Vizio E322MV

  • Page 1 32” CLASS RAZOR LED LCD HDTV ™ E322MV – user manual...
  • Page 2 This product qualifies for ENERGY STAR in the “factory default” setting and this is the setting in which power savings will be achieved. Changing the factory default picture settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for ENERGY STAR rating.
  • Page 3 My Product Information And congratulations on your new VIZIO HDTV. To get the most out of your new VIZIO product, read these instructions before using your product and retain them for future reference. Be sure to inspect the package contents to ensure there are no missing or damaged parts.
  • Page 4 E322MV Important Safety Instructions to rain or moisture, does not operate normally or has been dropped. • Unplug the power cord before cleaning your TV. Your DTV is designed and manufactured to operate within defined design • When moving your TV from an area of low temperature to an area of limits. Misuse may result in electric shock or fire. To prevent your TV from being high temperature, condensation may form in the housing. Wait before damaged, the following instructions should be observed for the installation, turning on your TV to avoid causing fire, electric shock, or component use, and maintenance of your TV.
  • Page 5 E322MV • Do not overload power strips and extension cords. Overloading can cause the batteries to leak which can damage the remote control or result in fire or electric shock. injure the operator. Do not expose batteries to excessive heat such as sunshine, fire or the like. • The wall socket should be installed near your TV and easily accessible. • If any of the following occurs, contact the dealer: • Only power of the marked voltage can be used for your TV. Any other - The power cord fails or frays. voltage than the specified voltage may cause fire or electric shock. - Liquid sprays or any object drops into your TV. • Do not touch the power cord during lightning. To avoid electric shock, - Your TV is exposed to rain or other moisture. avoid handling the power cord during electrical storms. - Your TV is dropped or damaged in any way. - The performance of your TV changes substantially. • Unplug your TV during a lightning storm or when it will not be used for long period of time. This will protect your TV from damage due to • This apparatus shall not be exposed to dripping or splashing and power surges. no objects fill with liquids, such as vases, shall be placed on the apparatus. • Do not attempt to repair or service your TV yourself. Opening or removing the back cover may expose you to high voltages, electric • The mains plug or appliance coupler is used as the disconnect device, shock, and other hazards. If repair is required, contact your dealer and the disconnect device shall remain readily operable. refer all servicing to qualified service personnel. • CAUTION - These servicing instructions are for use by qualified service • WARNING: Keep your TV away from moisture. Do not expose your TV...
  • Page 6 E322MV Television Antenna Connection Protection DTV Transition Advisory If an outside antenna/satellite dish or cable system is to be connected to the TV, The nationwide switch to digital television broadcasting was complete on June make sure that the antenna or cable system is electrically grounded to provide 12, 2009.

  • Page 7: Table Of Contents

    Installing the TV on a Wall ..............2 Setting the Date and Time ..............17 Controls and Connections ............4 Turning the VIZIO Light On or Off ............17 Rear Panel ....................4 Using the Other Menu Settings ..........18 Right Side Panel ..................
  • Page 8 E322MV Selecting the Digital Output Mode ............26 Zero Bright Pixel Defect Guarantee ............. 33 Resetting the Audio Settngs ..............27 Legal & Compliance ..............34 Setting the Sleep Timer ................27 FCC Class B Radio Interference Statement ........34 Viewing a USB Photo Slideshow ............

  • Page 9: Installing The Tv

    To prevent scratches or damage to the screen, place the TV on a soft surface, such as carpet, rug, or blanket. VIZIO LCD HDTV with Stand 2. Align the base with the stand neck. Gently push the base onto the stand neck.

  • Page 10: Installing The Tv On A Wall

    E322MV Installing the TV on a Wall 3. Turn the attached thumbscrew until it is completely tightened. To mount your TV on a wall, you will need a wall mount. Consult the information below to find the appropriate mount for your TV model: Fold down the thumbscrew tab so it is flat against the bottom of the base.
  • Page 11 E322MV 3. Gently remove the stand neck. 4. Attach your TV and wall mount to the wall, carefully following the instructions that came with your mount. Use only with a UL-listed wall mount bracket rated for the weight/load of this TV. See Appendix A - Specifications for the weight of this TV.

  • Page 12: Controls And Connections

    Controls and Connections Rear Panel USB: Connect a USB thumb drive to view photos. HDMI (1,2,3): Connect HDMI devices. RCA Stereo Connect RCA cable to output audio to another device. Audio Out: Component/ Connect component or composite device. Composite: HDMI (1,2,3) Cable/Antennal: Connect RF/Coaxial connector from cable, antenna, or satellite box.

  • Page 13: Right Side Panel

    Front Panel Channel Up Remote Control Sensor: When using the remote, point it directly at this sensor. Channel Down VIZIO Light: This light is white when the TV is on. Volume Up Volume Down Input Right Side Panel Power: Turn the TV on or off.

  • Page 14: Remote Control

    E322MV Remote Control Power/Standby: Turn the TV on or off. Input: Change the input device. A/V Controls: Control external device (CEC-enabled devices only). Info: Display the Info Window. CC: Open the Closed Captioning menu. Menu: Display the on-screen menu. Input Power/Standby Exit: Close the on-screen menu.

  • Page 15: Replacing The Batteries

    E322MV Replacing the Batteries 1. Remove the battery cover by pressing gently on the “V” and pushing the cover away from the remote. 2. Insert two AAA batteries. Make sure that the (+) and (-) symbols on the batteries match the (+) and (-) symbols inside the battery compartment.

  • Page 16: Connecting Your Devices

    Connecting Your Devices Connecting Your Devices Your HDTV can be easily connected to an external device: • DVD or Blu-Ray player Once you have determined the best available connection type on both your • Video game console device and the TV, ensure you have the corresponding cable. • Cable box To connect a device to the TV: • External antenna...
  • Page 17 E322MV Select one of the connection types. Use the cable(s) shown to connect the TV to your device. Select One: BEST HDMI DIGITAL DIGITAL / COAXIAL ANALOG ANALOG BETTER COMPONENT ANALOG GOOD COMPOSITE ANALOG Device Connection Chart...

  • Page 18: Completing The First-Time Setup

    Completing the First-Time Setup The first time you turn on the TV, the Setup App will guide you through each of 4. If the TV is connected to an external antenna, select Antenna, then press the steps necessary to get your TV ready for use. Right Arrow and go to step 5.

  • Page 19: Adjusting The Tv Settings

    • Remove channels from the master list • Change the TV’s date and time Changing the Tuner Mode • Turn the VIZIO light on or off Using this option, you can change the signal source for the coaxial (TV) input. To change the signal source: 1. Press the MENU button on the remote. The on-screen menu is displayed.

  • Page 20: Scanning For Channels

    E322MV Scanning for Channels Scanning for New or Additional Channels Before the TV can detect and display channels and their associated information, When a new channel becomes available in your area, you do not have to rescan you must scan for channels. A channel scan may also be necessary when the all channels to add the new channel.

  • Page 21: Adjusting The Tv Settings For Use With A Pc

    E322MV Adjusting the TV Settings for Use with A PC Setting the Parental Controls Your TV can be used to display output from a home computer using the RGB port. The TV’s parental controls allow you to prevent the TV from displaying certain channels or programs without a password.

  • Page 22: Enabling Or Disabling Program Ratings

    E322MV Enabling or Disabling Program Ratings Blocking and Unblocking Content by Rating To manage program content according to its rating, you must enable the Program A channel may sometimes broadcast programs that are meant for children, and Rating feature. at other times broadcast programs that are meant for mature audiences. You may...

  • Page 23: Changing The Parental Control Passcode

    E322MV Changing the Parental Control Passcode Changing the On-Screen Menu Language If you use the parental controls, you should change the passcode to prevent Your TV can display the on-screen menu in different languages. children from accessing inappropriate material. 1. From the Parental Controls menu, highlight Change PIN and press OK. The To change the on-screen menu language: Change PIN menu is displayed.

  • Page 24: Setting The Tv's Date And Time

    E322MV Setting the TV’s Date and Time Adjusting the Time for Daylight Savings This setting will automatically adjust the time for zones which recognize daylight From the Date & Time menu, you can: savings time. • Set the time zone To enable or disable the daylight savings adjustment: • Adjust the time for daylight savings...

  • Page 25: Setting The Date And Time

    Turning the VIZIO Light On or Off Using this menu option, you can manually set the TV’s date and time. This setting allows you to turn off the back-lit VIZIO logo on the front bezel of your To manually set the date and time: 1.

  • Page 26: Using The Other Menu Settings

    Using the Other Menu Settings Changing the Input Source Your TV features an easy-to-use on-screen menu. Using this menu, you can: • Change the input source and External devices such as DVD players, Blu-Ray Players, and video game consoles rename inputs can be connected to your TV. To use one of these devices with your TV, you must • Set the screen aspect ratio first change the input source in the on-screen menu.

  • Page 27: Customizing Input Names

    E322MV Customizing Input Names Setting the Screen Aspect Ratio When you have multiple devices connected to your TV, it can become difficult to The TV can display images in five different modes: Normal, Wide, Zoom, Panoramic, remember the inputs to which they are connected. Your TV features the ability to customize the names of these inputs to make them easy to remember.

  • Page 28: Screen Aspect Ratio Table

    E322MV Screen Aspect Ratio Table Original Content Format 480p/480i (4:3) 720p (16:9) 1080p/1080i (16:9) RGB (4:3) RGB (16:9) Normal Wide Zoom Panoramic Stretch...

  • Page 29: Setting Up Closed Captioning

    E322MV Setting Up Closed Captioning Changing the Appearance of Digital Closed Captions Digital closed captions can be displayed according to your preference. Your TV can display closed captions for programs that include them. Closed To change the appearance of digital closed captions: captions display a transcription of a program’s dialogue.

  • Page 30: Adjusting The Picture Settings

    E322MV Adjusting the Picture Settings Changing the Picture Mode Your TV display can be adjusted to suit your preferences and viewing conditions. Using the Picture menu, you can adjust the To change the picture mode: following settings: • Enable or disable the ambient light 1. Press the OK button on the remote. The on-screen menu is displayed.

  • Page 31: Adjusting The Noise Reduction Setting

    E322MV Adjusting the Noise Reduction Setting Adjusting the Color Temperature Noise reduction diminishes artifacts such as “blockiness” or “pixellation”. When Color temperature changes the “warmness” or “coolness” of the white areas of activated, the resulting picture usually has softer edges.

  • Page 32: Enabling Or Disabling Color Enhancement

    E322MV Enabling or Disabling Color Enhancement Enabling or Disabling DCR (Dynamic Contrast Ratio) Color enhancement reduces oversaturation of some colors and improves flesh Dynamic contrast ratio changes contrast according to displayed content for the tones. best picture quality. To adjust this setting, Picture Mode must be set to Custom.

  • Page 33: Adjusting The Audio Settings

    E322MV Adjusting the Audio Settings Enabling or Disabling SRS TruVolume SRS TruVolume intelligently normalizes volume fluctuations due to television Using the Audio Settings menu, you can adjust the following: commercials or channel changes. • Enable or disable SRS TruSurround HD ™ To enable or disable SRS TruVolume: • Enable or disable SRS TruVolume...

  • Page 34: Adjusting Bass And Treble Levels

    If you are unfamiliar with audio formats, or your TV is not connected 5. Use the Left/Right Arrow buttons to to an audio receiver, VIZIO recommends you set this option to Auto. increase or decrease the level. 6. When you are finished, press EXIT.

  • Page 35: Resetting The Audio Settngs

    E322MV Resetting the Audio Settngs Setting the Sleep Timer To reset the audio settings to the factory default settings: When activated, the TV’s sleep timer will turn the TV off after a set period of time. 1. Press the OK button on the remote. The on-screen menu is displayed.

  • Page 36: Viewing A Usb Photo Slideshow

    E322MV Viewing a USB Photo Slideshow Customizing the Photo Display Screen The Photo menu can be displayed as a list or as a grid of thumbnail images. The Your player features a USB port where you can connect and share a USB thumb images can also be sorted by date or by name.

  • Page 37: Viewing System Info And Resetting To Factory Defaults

    E322MV Viewing System Info and Resetting to Factory Defaults Restarting the Setup Wizard The TV’s Setup App can be used to easily set up the TV tuner. You can use the TV’s Help menu to: To access the Setup App: • Display system information...

  • Page 38: Troubleshooting & Technical Support

    If, after using this troubleshooting guide, you are still experiencing an issue with • Check the audio settings. Ensure the speakers are set to On. your TV, contact VIZIO’s Support Department. Quality customer support and service are integral parts of VIZIO’s commitment to service excellence.

  • Page 39: The Picture Is Distorted

    E321MV The picture is distorted. When I change input source, the display image changes size. • Nearby electrical devices may be interfering with the TV. Separate the • The TV remembers the viewing mode on each input source. If the TV from electrical appliances, cars, or flourescent lights.

  • Page 40: Specifications

    Specifications Screen Size: Sound Leveler: 32” Class SRS TruVolume Diagonal Viewable: Ambient Light Sensor: 31.50” Dimensions w/ Stand: 30.39 x 20.79 x 6.34” Energy Star w/o Stand: 30.39 x 19.21 x 2.13” FCC Class B Compliance: HDMI 1.3 Weight w/ Stand: 20.2 lbs UL/CUL w/o Stand:...

  • Page 41: Limited Warranty

    Covers units purchased as new in United States and Puerto Rico Only. THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR VIZIO provides a warranty to the original purchaser of a new Product against defects DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED...

  • Page 42: Legal & Compliance

    Your VIA device may contain GPL executables and LGPL libraries that are subject to the PL2.0/LGPL2.1 License Agreements. VIZIO offers to provide source code 1. Reorient or relocate the receiving antenna.
  • Page 44 © 2011. All rights reserved. the v, viZiO, viZiO internet Apps, theAter 3d, Full ArrAy truled, edge lit rAZOr led, 240hZ sps, 480hZ sps, entertAinment FreedOm And entertAinment FreedOm FOr All nAmes, lOgOs And phrAse Are registered Or unregistered trAdemArks OF viZiO, inc.
